End of Life Notice
* Effective Date: 2021/05/18
» The power of 64-bit quad-core processor with AES-NI support
» 2 x SODIMM Slots, Install up to 16 GB memory with 2 x 8GB DIMMs
» 1 x PCIe slot can support 10GbE network card
» Storage expandable via USB3.0, up to 200TB
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | 2U 1U, Rackmount |
| System | |
| CPU | 64-Bit Quad-Core AMD® G-Series 2.0GHz |
| Memory | 2 SODIMM; Memory expandable up to 16GB DDDR3L (8GB x 2) |
| Memory Max. | 16GB DDDR3L (8GB x 2) |
| Cooling method / System Fan |
12B : 2 x 70mm, 12V DC 08B : 2 x 70mm, 12V DC 04A : 2 x 40mm, 12V DC |
| Physical Characteristics | |

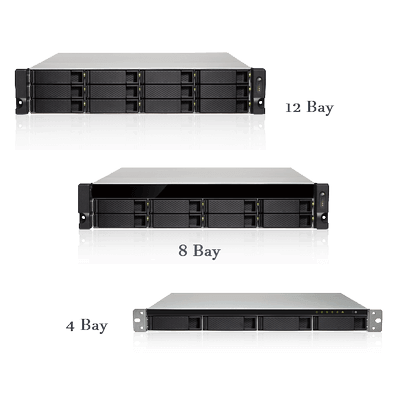

| Rack Height |
2U 12bay, 8bay 1U 4bay |
| Dimensions (LxWxH) (mm) |
12B : 89 x 482 x 534 mm 08B : 89 x 482 x 534 mm 04A : 44 x 439 x 499 mm |
| Net Weight |
12B : 16.14kg 08B : 11.02kg 04A : 7.63kg |
| Storage | |
| Storage |
Description:(2.5＂ or 3.5＂ SATA 6Gb/s, 3Gb/s; hot-swappable 12B: 12 Bay 08B: 8 Bay 04A: 4 Bay) |

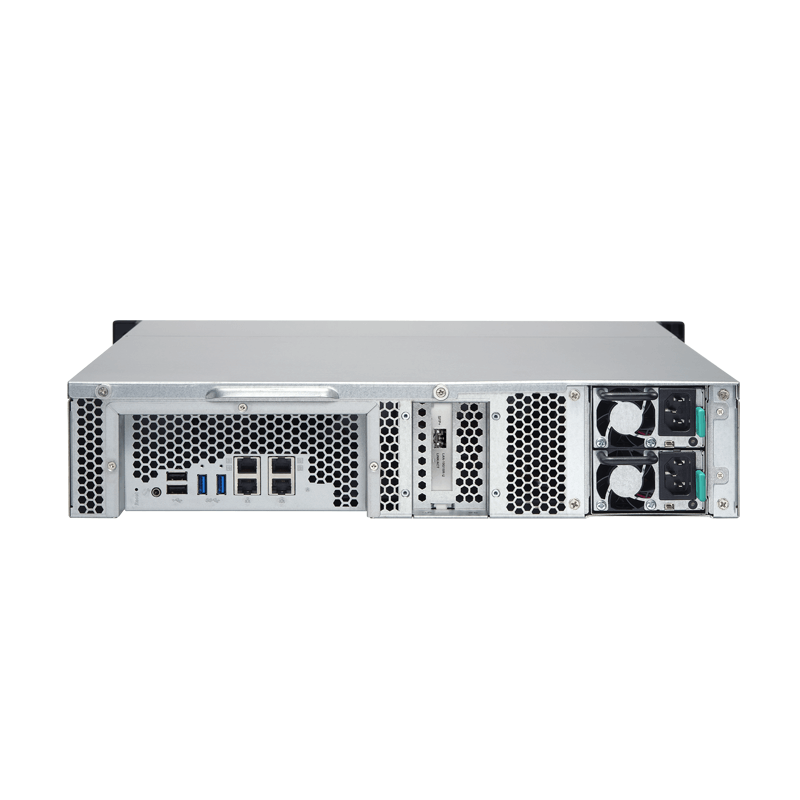

| I/O Interface | |
| Ethernet | 4 x LAN(GbE) |
| I/O Interface | External USB 2.0(3 x USB 2.0 : 04A / 2 x USB 2.0 : 08B, 12B) |
| 2 x External USB 3.0 | |
| Expansion | 1 x PCIe x 4(PCIe 2.0 x 4 slot) |
| Power | |
| Power Consumption |
12B : In Operation: 135.02 08B : In Operation: 94.40 04A : In Operation: 50.46 |
| Power Supply |
12B : 250W, 100-240V, 250W (x2), 100-240V (redundant) 08B : 250W, 100-240V, 250W (x2), 100-240V (redundant) 04A : 250W, 100-240V, 250W (x2), 100-240V (redundant) |
| Environment | |
| Operating Temperature | 0~40˚C |
| Humidity | 5 to 95% non-condensing, wet bulb：27˚C. |
Ordering Information

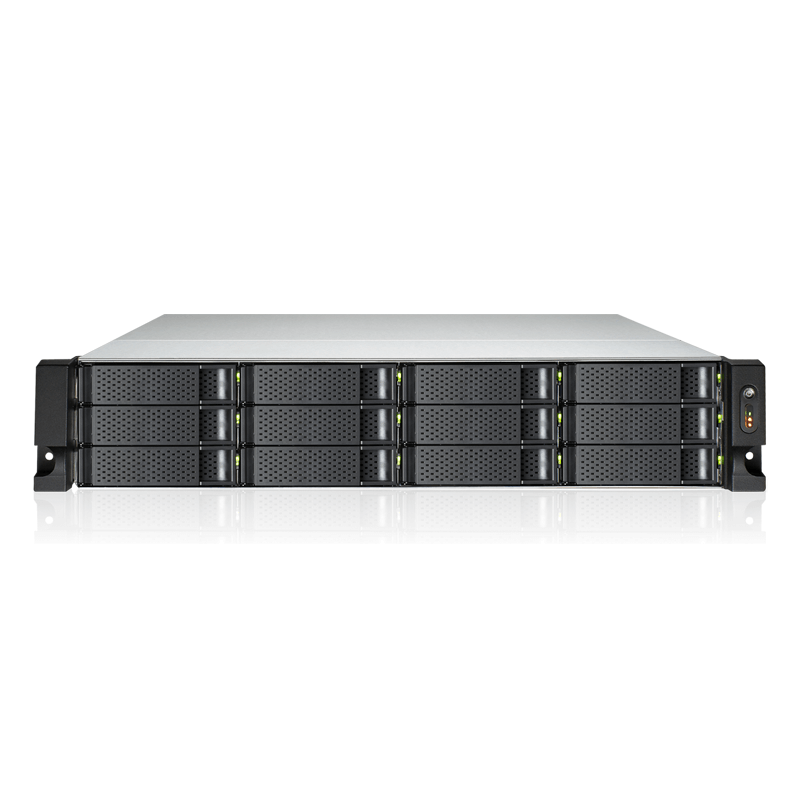

| GRAND-SE-12B-RP-R10 | 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W redundant PSU, RoHS |
|---|---|
| GRAND-SE-12B-R10 | 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W single PSU, RoHS |

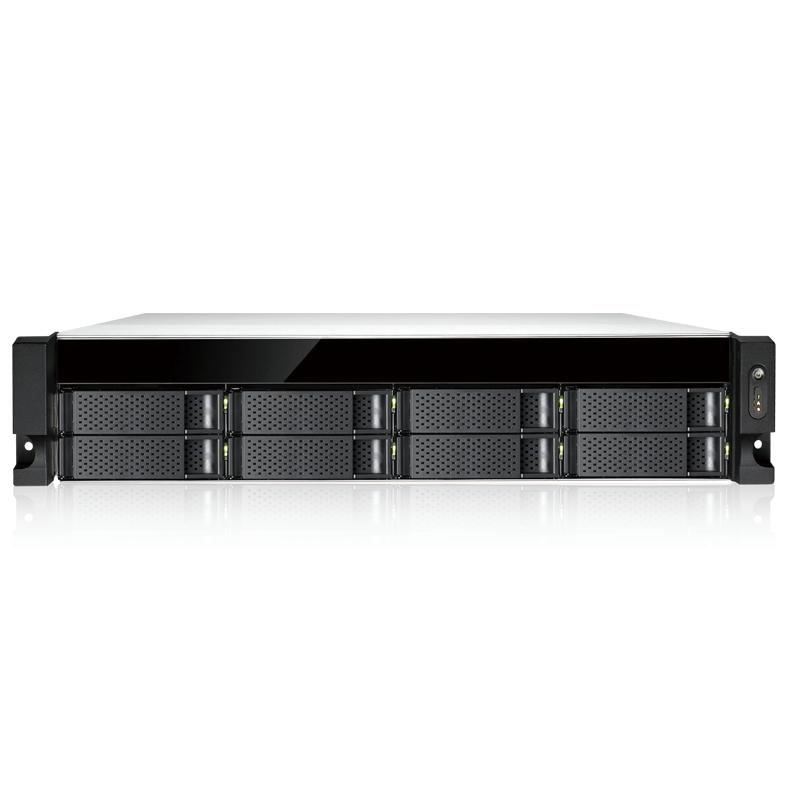

| GRAND-SE-08B-RP-R10 | 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W redundant PSU, RoHS |
| GRAND-SE-08B-R10 | 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W single PSU, RoHS |

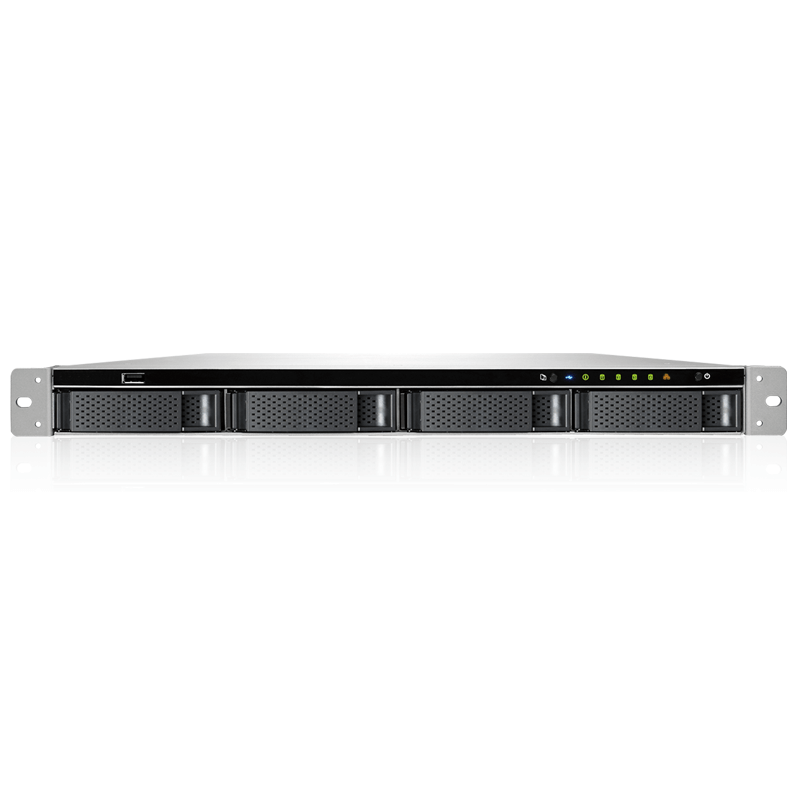

| GRAND-SE-04A-RP-R10 | 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W redundant PSU, RoHS |
| GRAND-SE-04A-R10 | 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W single PSU, RoHS |
