End of Life Notice
* Effective Date: 2022/07/11

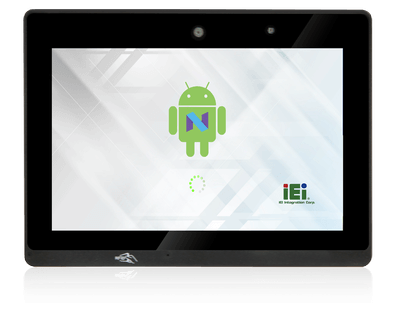

» 8” 阳光可读 TFT LCD 和 投影电容式触摸屏
» 可选LTE模块
» 内置 GPS 接收器
» 内置 OBD-II/J1939
» 操作系统: Android 7.1
Hardware Spec.
| 外形尺寸 | |
|---|---|
| SBC 外形 |
CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz) Chipset: SoC System Memory:On-board 2GB LPDDR3-1866 |
| I/O 接口 | |
| I/O 端口 |
20-pin Connector ** 1 x OBD-II/J1939 ** 1 x USB 2.0 24-pin Connector ** 1 x Audio out ** 1 x RS-232 ** 1 x RS-485 ** 4-bit digital I/O with isolation (2-bit input, 2-bit output) 1 x HDMI™ output 1 x GPS SMA connector 1 x WWAN SMA connector 1 x SIM card slot 1 x USB3.0 Type A |
| 扩展槽 | |
| 扩展槽 | 1 x Full-size PCIe Mini (reserved for WWAN) |
| 系统 | |
| 散热方式 / 系统风扇 | Fanless |
| 驱动器托架 |
On board 16GB eMMC NAND FLASH 1 x Micro SD Slot |
| 指示器和按钮 | |
| 按钮 | 1 x Power button |
| 指示器 |
1 x Power 1 x BT 1 x Wi-Fi 1 x WWAN |
| 颜色 | |
| 颜色 | Black C + Silver |
| 尺寸 | |
| 尺寸 | 210 x 154 x 33.9 |
| 重量 | |
| 重量 | 0.77 kg |
| 运行环境 | |
| 操作温度 | -10°C ~ 50°C with air flow |
| 湿度 | 10% ~ 95%, non-condensing |
Ordering Information
| AFOKAR-08A-RK39-R10-US | 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, US reg, ROHS |
|---|---|
| AFOKAR-08A-RK39-R10-TW | 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, TW reg, ROHS |
| AFOKAR-08A-RK39-R10-EU | 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, EU reg, ROHS |
| AFOKAR-08A-RK39-R10-CN | 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, CN reg, ROHS |
Package Contents
| Package Content |
|
|---|
