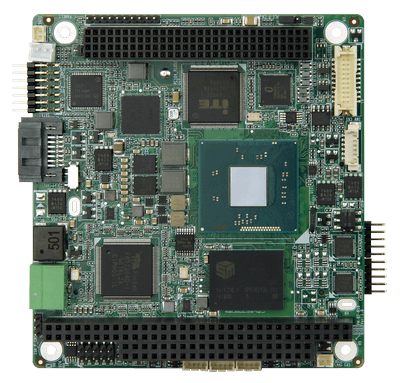

PM-BT

PC/104-Plus SBC 采用 Intel® Atom™/Celeron® 板载 SoC,带 DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 和 5V DC 输入, RoHS

  • Overview

    ● PC/104 规格 SBC 支持 22nm Intel® Atom™ 板载 SoC
    ● 支持 PC/104-Plus (ISA 和 PCI signal) 功能
    ● 5V DC 输入解决方案
    ● 支持 2 COM, PCIe Mini, USB 和可选板载 SSD
    ● VGA 和 LVDS 双显示
    ● -40°C ~ 85°C 的宽范围温度支持 (适用于 E38xx 系列 CPU)
    ● IEI 一键恢复解决方案可以创建快速操作系统备份和恢复
  • Features

    PM-BT single board computer banner
    PM-BT_single-board-computer-features
    PM-BT single board computer applications

    尺寸

    PM-BT single board computer dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
      MemoryOne 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM
      Memory Max.8 GB
      (J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)
      Physical Characteristics
      Dimensions (LxWxH) (mm)96 X 90
      Net Weight120
      Storage
      Storage1 x 2.5” SSD/HDD Bay On-board (optional, support by request)
      I/O Interface
      Display Output1 x VGA :up to 2560x1600@60Hz
      1 x LVDS :18/24-bit single-channel (2x10 pin)
      EthernetDescription: 1 x Intel® I210
      Power
      Power Consumption5V@1.70A (Intel® Celeron® J1900 CPU with 8GB memory )
      Power Supply5V DC input
      12V for fan, LVDS and PCI-104 plus
      » 5V for PCI-104 plus (1x3 pin, P=2.0)
      » 12V for PCI-104 plus (1x3 pin, P=2.0)
      3/5V jumper for PCI-104 plus
      Support AT/ATX mode
      ErP/EuP Compliant
      Environment
      Operating Temperature-20°C ~ 60°C (for J1900/N2930/N2807);
      -40°C ~ 85°C (for E38xx);
      Storage Temperature-40°C ~ 85°C
      Humidity5% ~ 95%, non-condensing
      Compatible Model
      MotherboardCE/FCC
    • Ordering Info.

      料号 描述
      PM-BT-J19001-R10 PC/104-Plus Single Board Computer with Intel® Atom™ J1900 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
      PM-BT-N28071-R10 PC/104-Plus Single Board Computer with Intel® Atom™ N2807 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
    • Package Contents

      • 1 x PM-BT 单板机

      • 1 x SATA 线套件

      • 1 x COM 端口线

      • 1 x 单端口 USB 线

      • 1 x LAN 线

      • 1 x VGA 线
