End of Life Notice
* Effective Date: 2020/11/20

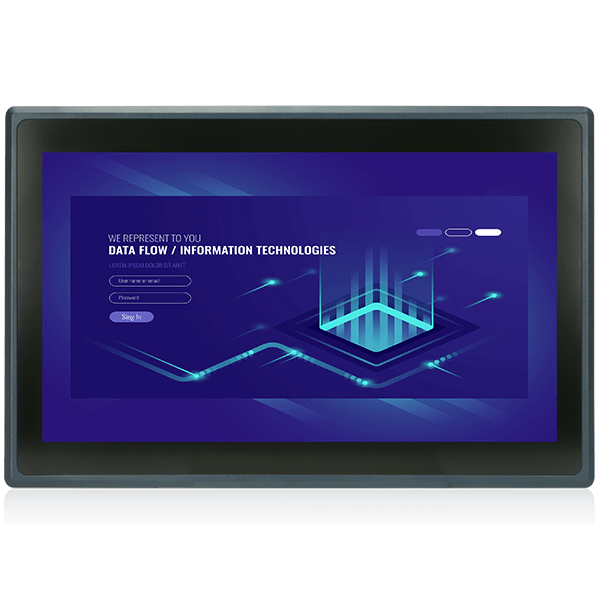

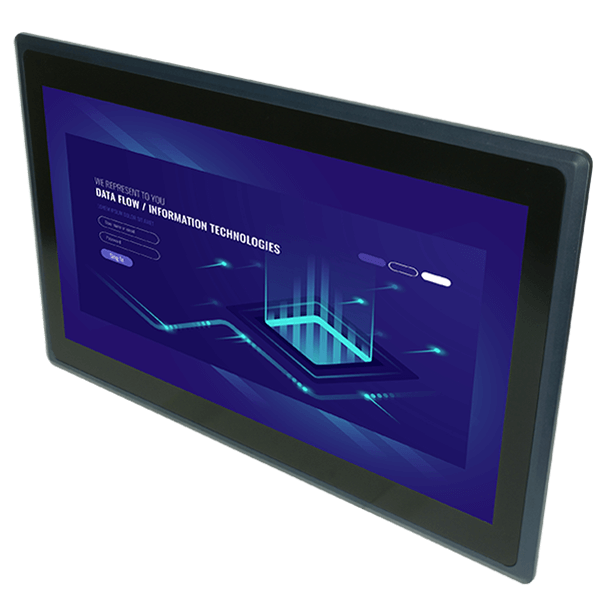

» 21.5” 平板电脑采用第八代 LGA 1151 Intel® Core™ i7/i5/i3 和 Pentium® 处理器
» 四个可热插拔且可访问的硬盘驱动器托架, 支持 RAID 0/1/5/10

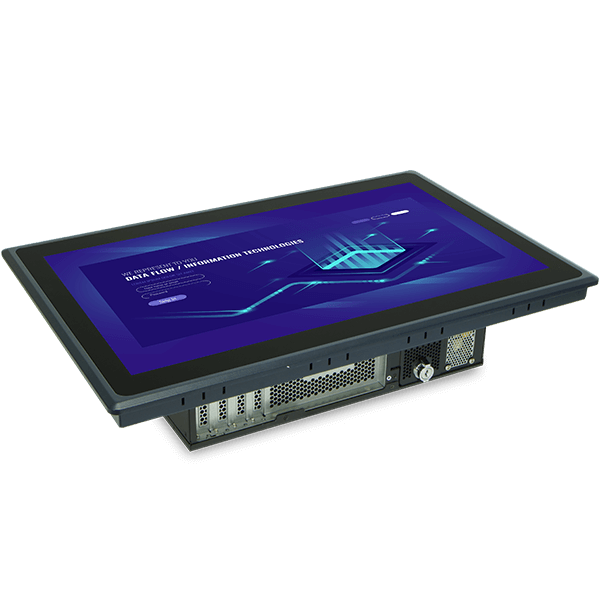

» 两个 PCIe 3.0 by 4 和两个 PCIe 3.0 by 8 插槽
» 支持双 M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD
» 支持 QTS-网关
Hardware Spec.
Display | |
---|---|
Backlight MTBF(hrs) | 30000 |
Brightness(cd/m2) | 250 |
Contrast Ratio | 1000:1 |
LCD Size | 21.5” |
Max Resolution | 1920x1080 |
Environment | |
Humidity | 5% ~95%, non-condensing |
IP Level | IP66 compliant front panel |
Operating Temperature |
0°C ~ 50°C (with SSD and TDP 65W processor) 0°C ~ 40°C (with HDD or add-on cards without fan) |
Safety & EMC | CE, FCC |
Storage Temperature | -20°C ~ 60°C |
Expansion Slots | |
Expansion Slots |
2 x PCIe 3.0 by 8 (by 16 slot) 2 x PCIe 3.0 by 4 ( maximum card size supported: 68 mm x 167 mm) |
Form factor | |
Form factor |
8th Genertion Intel CoreTM i7/i5/i3 porcessors in the LGA 1151 Intel® 300 Series Chipsets Q370 |
I/O Interface | |
Ethernet | Intel® I211AT Ethernet controllers |
Other Features | |
TPM | Support(2x10pin, P=2.54mm) |
Physical Characteristics | |
Color | Front frame: Cyan-blue (PSM 296C); Others: Black C |
Cutout Dimensions | 533x341 |
Dimensions (LxWxH) (mm) | 551x359x118 |

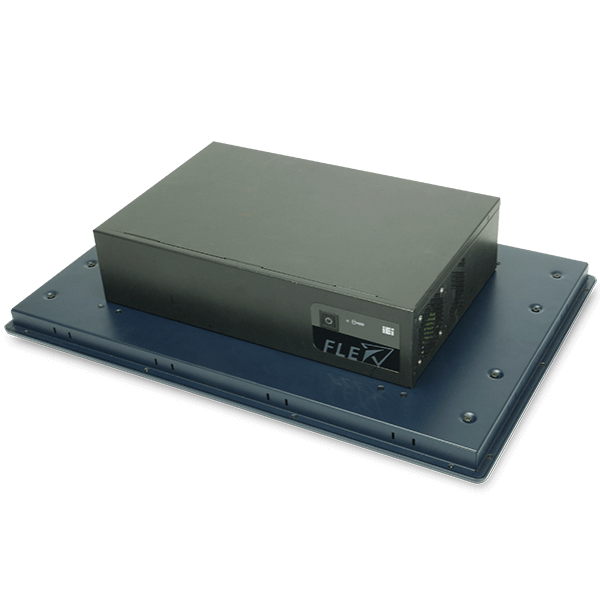

Mounting | Panel/Rack mount |
Net Weight | 10.6 |
Power | |
Power Supply |
AC input ATX power supply 1. 250 W power supply - Input: 115VAC~230VAC, 50/60Hz - Output (max.): 3.3V@12A, 5V@14A, 12V@25A, -12V@0.3A,+5Vsb@3A 2. 350 W power supply (Build to Order) - Input: 115VAC~264VAC, 50/60Hz - Output (max.): 3.3V@14A, 5V@16A, 12V@29A, -12V@0.3A,+5Vsb@3A - Efficiency: Full load (100%) 87%, Typical load (50%) 90%, Light load (20%) 87% |
Storage | |
Storage |
4 x Hot-swappable SATA 6G/s HDD/SSD bay (support RAID 0/1/5/10) 2 x M.2 M-key (2280, PCIe 3.0 x4), support NVMe SSD |
System | |
Chipset | Intel® 300 Series Chipsets Q370 |
Cooling method / System Fan | System fan |
CPU | 8th Generation LGA1151 Intel® Core™ i7/i5/i3 and Pentium® CPU |
Memory Max. | Two 288-pin 2666/2400 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots (system max. 64 GB) |
Touch | |
Touch Controller | EETI EXC3188 |
Touch Screen |
10-point Projected capacitive touch window, 6H (Anti-UV, Anti-glare Surface) |
I/O Interface | |
I/O Interface | 1 x AT/ATX switch |
1 x HDMI™ | |
2 x LAN | |
1 x Line out | |
1 x Mic | |
1 x Power Switch | |
1 x Reset Button | |
2 x RS-232 | |
6 x USB 3.0 |
Ordering Information
PPC-FW22C-Q370-i7/PC/25-R10 | 21.5" 250cd/m² 1920 x 1080 AI modular Panel PC, Intel® Core™ i7-8700T Processor (6-core,12-thread,2.4 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
---|---|
PPC-FW22C-Q370-i5/PC/25-R10 | 21.5" 250cd/m² 1920 x 1080 AI modular Panel PC, Intel® Core™ i5-8500T Processor (6-core, 6-thread, 2.1 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
PPC-FW22C-Q370-i3/PC/25-R10 | 21.5" 250cd/m² 1920 x 1080 AI modular Panel PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
PPC-FW22C-Q370-P/PC/25-R10 | 21.5" 250cd/m² 1920 x 1080 AI modular Panel PC, Intel® Pentium® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
