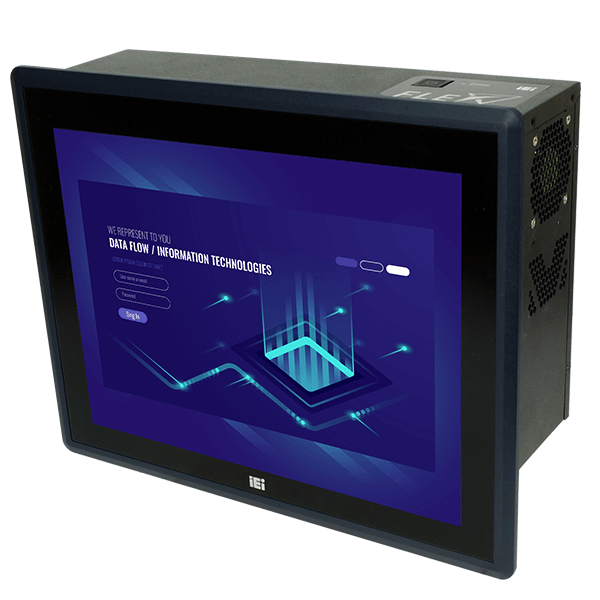

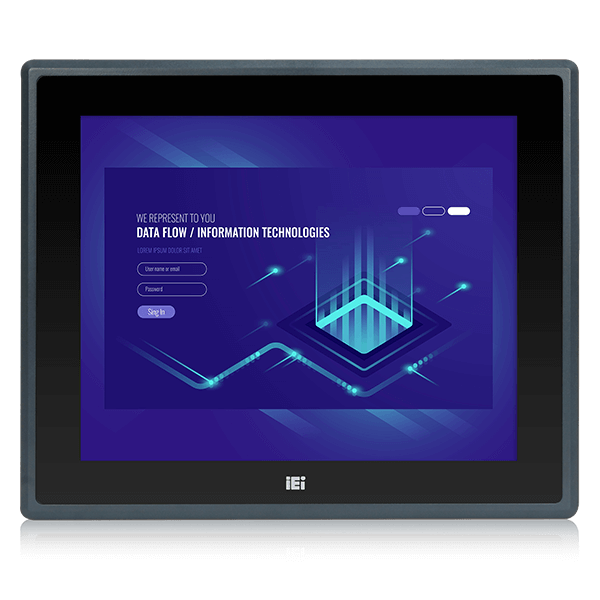

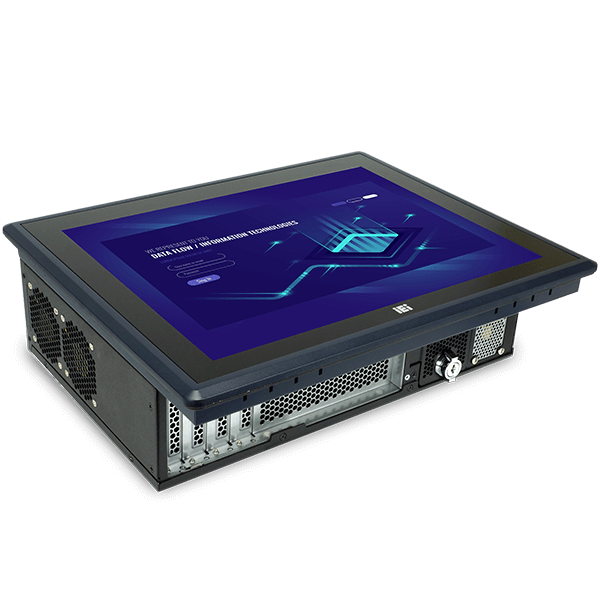

PPC-F15C-Q370

15” Intel® Coffee Lake 平板电脑

End of Life

PPC-F15C-Q370-panel-pc
PPC-F15C-Q370-panel-pc
  • PPC-F15C-Q370-panel-pc
  • PPC-F15C-Q370-panel-pc

End of Life Notice

* Effective Date: 2021/09/07

» 15” 平板电脑 配备 第八代 LGA 1151 Intel® Core™ i7/i5/i3 和 Pentium® 处理器
» 四个 热插拔且可访问的硬盘驱动器托架, 支持 RAID 0/1/5/10
» 两个 PCIe 3.0 by 4 和 两个 PCIe 3.0 by 8 插槽
» 支持双 M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD
» 支持 QTS-网关

Specifications

Hardware Spec.

Display
Backlight MTBF(hrs) 70000
Brightness(cd/m2) 450
Contrast Ratio 800:1
LCD Size 15”
Max Resolution 1024x768
Environment
Humidity 5% ~95%, non-condensing
IP Level IP66 compliant front panel
Operating Temperature -20°C ~ 50°C (with SSD and TDP 65W processor)
-20°C ~ 40°C (with HDD or add-on cards without fan)
Safety & EMC CE, FCC
Storage Temperature -30°C ~ 60°C
Expansion Slots
Expansion Slots 2 x PCIe 3.0 by 8 (by 16 slot)
2 x PCIe 3.0 by 4 ( maximum card size supported: 68 mm x 167 mm)
Form factor
Form factor 8th Genertion Intel CoreTM i7/i5/i3 porcessors in the LGA 1151
Intel® 300 Series Chipsets Q370
I/O Interface
Ethernet Intel® I211AT Ethernet controllers
Other Features
TPM Support(2x10pin, P=2.54mm)
Physical Characteristics
Color Front frame: Cyan-blue (PSM 296C); Others: Black C
Cutout Dimensions 361.1x285.6
Dimensions (LxWxH) (mm) 378.5x303x118
Mounting Panel/Rack mount
Net Weight 7.3
Power
Power Supply AC input ATX power supply
1. 250 W power supply
- Input: 115VAC~230VAC, 50/60Hz
- Output (max.): 3.3V@12A, 5V@14A, 12V@25A, -12V@0.3A,+5Vsb@3A
2. 350 W power supply (Build to Order)
- Input: 115VAC~264VAC, 50/60Hz
- Output (max.): 3.3V@14A, 5V@16A, 12V@29A, -12V@0.3A,+5Vsb@3A
- Efficiency: Full load (100%) 87%, Typical load (50%) 90%, Light load (20%) 87%
Storage
Storage 4 x Hot-swappable SATA 6G/s HDD/SSD bay (support RAID 0/1/5/10)
2 x M.2 M-key (2280, PCIe 3.0 x4), support NVMe SSD
System
Chipset Intel® 300 Series Chipsets Q370
Cooling method / System Fan System fan
CPU 8th Generation LGA1151 Intel® Core™ i7/i5/i3 and Pentium® CPU
Memory Max. Two 288-pin 2666/2400 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots (system max. 64 GB)
Touch
Touch Controller EETI EXC3188
Touch Screen 10-point Projected capacitive touch window, 6H
(Anti-UV, Anti-glare Surface)
I/O Interface
I/O Interface 1 x AT/ATX switch
1 x HDMI™
2 x LAN
1 x Line out
1 x Mic
1 x Power Switch
1 x Reset Button
2 x RS-232
6 x USB 3.0

Ordering Information

PPC-F15C-Q370-i7/PC/25-R10 15" 450cd/m² 1024 x768 AI modular Panel PC, Intel® Core™ i7-8700T Processor (6-core,12-thread,2.4 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
PPC-F15C-Q370-i5/PC/25-R10 15" 450cd/m² 1024 x768 AI modular Panel PC, Intel® Core™ i5-8500T Processor (6-core, 6-thread, 2.1 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
PPC-F15C-Q370-i3/PC/25-R10 15" 450cd/m² 1024 x768 AI modular Panel PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
PPC-F15C-Q370-P/PC/25-R10 15" 450cd/m² 1024 x768 AI modular Panel PC , Intel® Pentium® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10

Package Contents

Package Content

  • 电源线

  • 硬盘门钥匙
