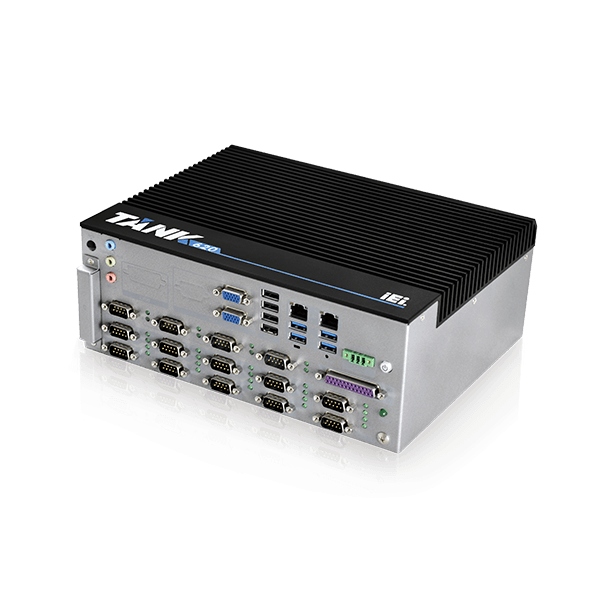

TANK-620-ULT3

无风扇多串口嵌入式系统

End of Life

tank-620-ult3-industrial-embedded-system
tank-620-ult3-industrial-embedded-system
  • tank-620-ult3-industrial-embedded-system
  • tank-620-ult3-industrial-embedded-system

End of Life Notice

* Effective Date: 2020/10/06

» Intel® Celeron® 3855U (1.6GHz, TDP=15W)
» 多个 COM 端口 (多达 14个) ，带 TX/RX 信号 LED 指示灯，用于数据传输指示
» 多个 USB 和 LAN
» 24-bit DIO
» M.2 M-key 和双全尺寸 PCIe Mini 插槽，用于扩展
»  易于存取的存储器

Specifications

Hardware Spec.

规格
SBC 规格
  • CPU:
    Intel® Celeron® 3855U (1.6GHz, TDP=15W)
  • Chipset:
    SoC
  • System Memory:
    1 x 260-pin DDR4 SO-DIMM
    1 x on-board DDR4 4GB pre-installed (system max: 32GB)
  • Power:
    Input: 3-pin terminal block: 9 ~ 36 V DC
    Consumption: 12V@2A
  • Reliability:
    Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis
    Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)
    Safety/EMC: CE/FCC
I/O 接口
I/O 端口
  • 4 x USB 3.0
  • 4 x USB 2.0
  • Ethernet:2 x RJ-45
    PCIe GbE by Intel® I211 controller
  • COM Port:
    6 x RS-232 (DB-9)
    8 x RS-232/422/485 ports with automatic flow control (DB-9)
  • 1 x 24-bit digital I/O (12-bit input/12-bit output)
  • Audio:
    1 x Mic in, 1 x Speaker out, 1 x Line out
  • Display:2 x VGA
扩展插槽
扩展插槽 M.2:
1 x M.2 2280 (M key,PCIe by 4, SATA co-lay SATA2)
PCIe Mini:
2 x Full-size PCIe mini slot (PCIe by1, USB2.0)
系统
散热方式 / 系统风扇 Fanless
驱动器托架 2 x 2.5＂ SATA 6Gb/s HDD/SSD Bay
指示器和按钮
按钮 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
指示灯 HDD,
Power,
COM ports
物理特性
构造 Extruded aluminum alloy
颜色
颜色 Black C + Silver
尺寸
尺寸 260 x 200 x100 (WxDxH) (mm)
重量
重量 4.4 kg/6.5 kg
运行环境
操作温度 -30°C ~ 70°C with air flow (SSD)
湿度 10% ~ 95%, non-condensing

Ordering Information

TANK-620-ULT3-CE/4G-R10 Fanless wide temperature embedded system with Intel® Celeron® 3855U 1.6GHz (dual-core, TDP 15W), on-board 4GB DDR4 memory, 9 V~36V DC, with USB, dual VGA, dual Intel® PCIe GbE, COM, DIO, RoHS

Package Contents

Package Content

  • 1 x 安装支架

  • 1 x 机箱螺丝
