PUZZLE-M801

1U 机架安装网络设备,采用 Marvell® Armada® 8040 ARM v8 A72 四核系统级芯片

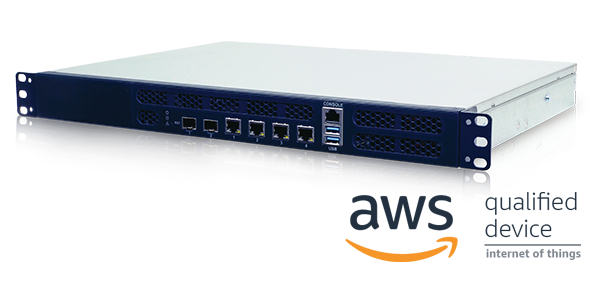

PUZZLE-M801 Network Appliance interface front

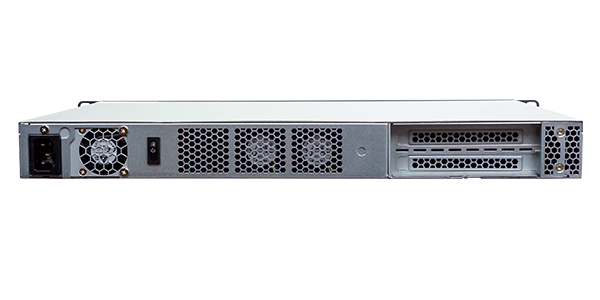

PUZZLE-M801 Network Appliance interface

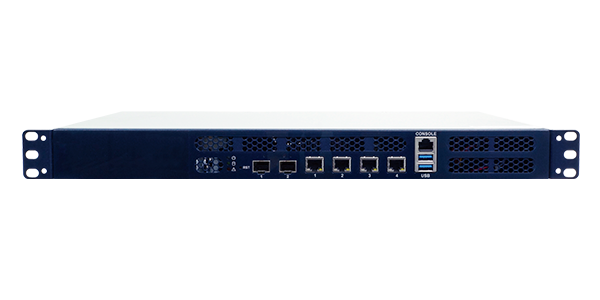

  • PUZZLE-M801 Network Appliance interface front
  • PUZZLE-M801 Network Appliance interface
» Marvell® ARMADA® 88F8040 high-performance quad-core System-on-Chip processor
» 1 x 288-pin DIMM, DDR4 2400MHz ECC/Non­ECC/RDIMM
» 2 x 10GbE SFP+ via Marvell® ARMADA® 88F8040, 4 x GbE RJ-45 via Marvell 88E1512P
» 2 x USB 3.2 Gen 1 (5Gb/s), 1 x RJ-45 console, 1 x M.2 B key (SATA & USB 3.2 Gen 1 (5Gb/s)) with SIM holder
» 1 x PCIe x16 slot (PCIe x2 signal)
» Support open source software, such as pfSense® and OPNsense®.

Hardware Spec.

系统
CPU Marvell® Armada® 8040 ARM v8 A72 4C, System-on-Chip (SoC) up to 2.0GHz
内存 1 x DDR4 2400MHz ECC/Non-ECC/RDIMM
内存最大值 Up to 16 GB
散热方案/系统风扇 2 x Cooling Fans with Smart Fan
物理特性
Rack Height 1U
尺寸 (LxWxH) (mm) 320x430x44.2
净重 5 kg
存储
存储 1 x 2.5” SSD/HDD Bay : support SATA 3.0 (6 Gbps)
1 x eMMC : 32GB
I/O 接口
网络 2 x SFP+ : 10 GbE SFP+
4 x LAN : 1 GbE RJ45
I/O接口 2 x External USB 3.2 Gen1x1
2 x Internal USB 2.0 : Pin header
扩展 1 x PCIe x16 : (FHHL) PCIe 3.0 x2 signal
1 x M.2(NGFF) : M.2 B Key (3042/2260) (SATA 3.0 and USB 3.2 Gen 1) Support SATA SSD or 4G LTE module (USB signal)
电源
Input 100 V ~ 240 V
电源供电 250W
环境
操作温度 0°C ~ 40°C (32°F ~ 104°F)
存储温度 -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
认证
Safety & EMC CE / FCC / RoHS
OS Support
OS Support Ubuntu 16.04.04

Ordering Information

PUZZLE-M801-A1/8G-R10 1U Rackmount Network Appliance with Marvell Armada 8040 procrssor, 8GB DDR4, one 256GB SSD, four 1GbE , two 10GbE via SFP+, one PCIe expansion, RoHS
PUZZLE-M801-A1-R10 1U Rackmount Network Appliance with Marvell Armada 8040 procrssor, one DDR4 slot, four 1GbE , two 10GbE via SFP+ , one PCIe expansion, RoHS

Package Contents

Package Content
  • .1 x Power cord

  • .2 x Rack mounting ears

  • .6 x Screws for rack mounting ears

  • .USB to console cable (Option)

  • .RS-232 to console cable (Option)
