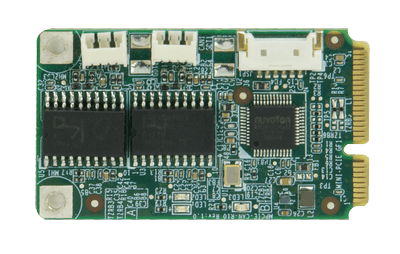

USB 至 双隔离 CANbus 2.0B 模块

End of Life

End of Life Notice

* Effective Date: 2022/06/09

» PCI Express Mini 卡全尺寸
» Minipcie 接口 (USB 接口)
» 支持 2 x CANBus 2.0B 端口模块带隔离功能
» 通信波特率: 50/125/250/500/1000K @ 40米
» 操作系统支持: Windows /Linux

Hardware Spec.

Form Factor
Form Factor PCI Express Mini Card
Physical Characteristics
Dimensions (LxWxH) (mm) 30 X 50.9 X 6
Net Weight 50g
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~95%, non-condensing
Safety & EMC Complies with EN61000-4-5 2.5kV Surge protection
Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013
2.5kV HiPOT protection
Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Card Slot Interface
PCIe miniPCIe full-size

Ordering Information

MPCIE-CAN-R10 PCI Express Mini Dual CAN Bus module, Full size, RoHs, R10

Package Contents

Package Content
  • 1 x MPCIE-CAN 模块

  • 2 x DP9 线

  • 1 x QIG
