FLEX-BX200-C246

Intel® Coffee Lake AI 模块化嵌入式系统

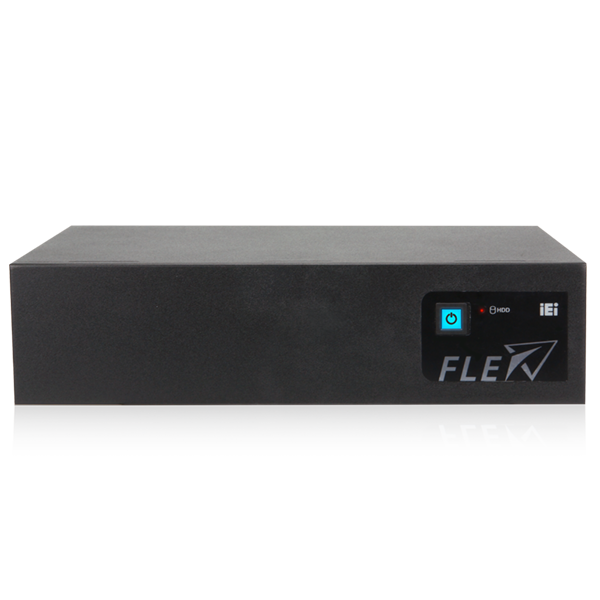

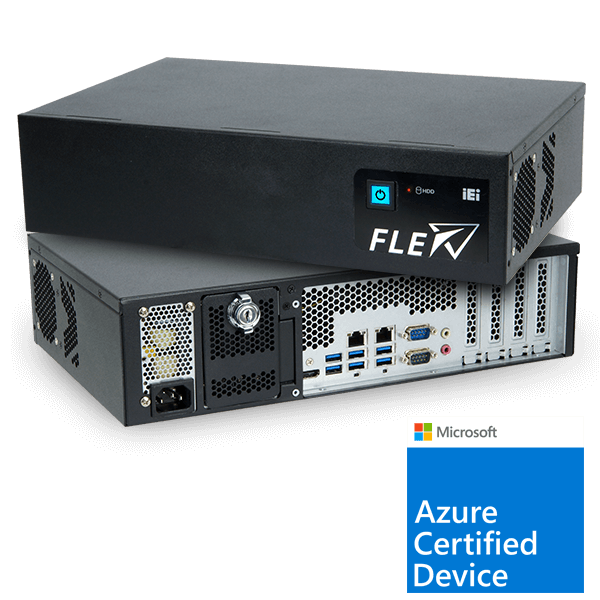

IEI FLEX AI modular box PC
IEI FLEX AI modular box PC
  • IEI FLEX AI modular box PC
  • IEI FLEX AI modular box PC
» 2U AI 模块化 PC,采用 Intel® Xeon® E 处理器
» 四个可热插拔且可访问的 HDD 驱动器托架,支持 RAID 0/1/5/10
» 两个 PCIe 3.0 by 4 和两个 PCIe 3.0 by 8 插槽
» 支持双 M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD
» 模块化 LCD 平板套件设计 (请参考: FLEX-PLKIT Selection)

Hardware Spec.

Form factor
SBC Form Factor Intel® Xeon® E Processor in the LGA 1151
Intel® C240 Series Chipsets
FLEX AI Modular Box PC

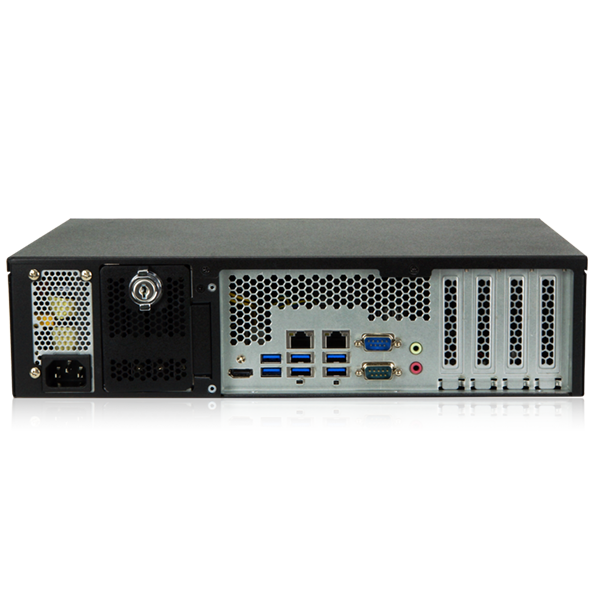

I/O Interface
I/O Ports 1 x HDMI output
2 x GbE LAN
6 x USB 3.0 Type-A
2 x RS-232 DB-9 type
1 x Mic in
1 x Line out
1 x AC power in Inlet
Expansion Slots
Expansion Slots 2 x PCIe 3.0 by 8 (by 16 slot)
2 x PCIe 3.0 by 4 (maximum card size supported: 68 mm x 167 mm)
System
Cooling method / System Fan System fan
Drive Bays 4 x Accessible 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1/5/10 support)
Indicator&Buttons
Buttons Power button with power LED (power on=Blue)
AT/ATX mode switch
Reset button
Color
Color Black C
Dimensions
Dimensions 357 x 230 x 88
Weight
Weight 4kg
Environment
Operating Temperature -20°C ~ 40°C (with TDP 80W processor)
Humidity 5% ~95%, non-condensing
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

FLEX-BX200-C246-XE/35-R10 2U AI Modular BOX PC, Intel® Xeon® E-2176G Processor (6-core, 12-thread, 3.7GHz) TDP 80W, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, 350W PSU,R10

Package Contents

Package Content
  • 1 x 电源线

  • 1 x 硬盘门锁
