End of Life Notice
* Effective Date: 2021/06/15
» 专为 EPIC / 3.5” SBC 设计，具有 DC 输入
» 灵活的 SBC 兼容性
» 一个 2.5” 硬盘容量
» 经济高效，符合 RoHS 标准的设计
Hardware Spec.
| 外形尺寸 | |
|---|---|
| SBC 外形 | Refer to NANO/WAFER Series |
| I/O 接口 | |
| I/O 开孔 | Reserved IO window for COM port expansion |
| I/O 端口 | Refer to SBCs |
| 扩展槽 | |
| 扩展槽 | Refer to SBCs |
| 系统 | |
| 散热方式 / 系统风扇 | Refer to SBCs |
| 驱动器托架 | 1 x 2.5” HDD bay |
| 指示器和按钮 | |
| 按钮 | Power switch with LED |
| 颜色 | |
| 颜色 | Black |
| 尺寸 | |
| 尺寸 | 220 x 143 x 55 mm |
| 重量 | |
| 重量 | 1.2kg/1.5kg |
| 运行环境 | |
| 操作温度 | 0°C ~ 40°C |
Ordering Information
| BRICK-WAFER-BT-R10 | Embedded chassis for WAFER-BT SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS |
|---|---|

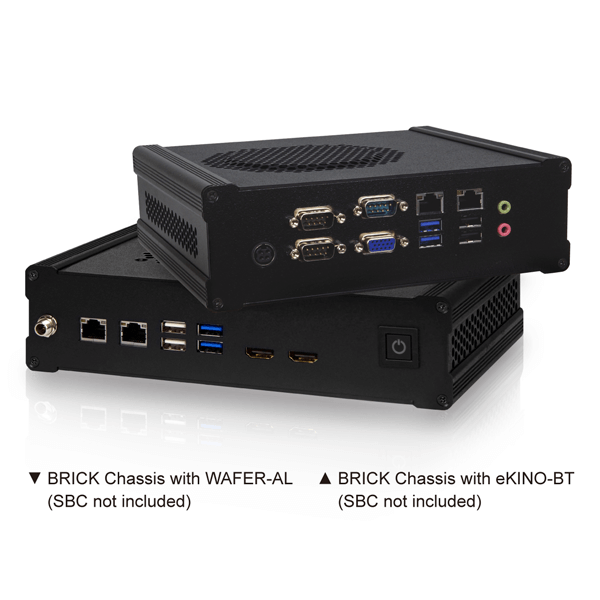

| BRICK-WAFER-AL-R10 | Embedded chassis for WAFER-AL SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS |
| BRICK-NANO-BT-R10 | Embedded chassis for NANO-BT SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS |
| BRICK-NANO-AL-R10 | Embedded chassis for NANO-AL SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS |
Package Contents
| Package Content |
|
|---|
