• 1 x Intel® 以太网控制器 XL710-BM1
• 4 端口 10 GbE SFP+ 连接器
• PCIe 3.0 x8
• 符合 RoHS /CE/FCC
Hardware Spec.
Physical Characteristics | |
---|---|
Dimensions (LxWxH) (mm) | 165.50 (L) x 77.8 (W) x 44.2 (H) |
I/O Interface | |
Ethernet | 4 x SFP+ |
Environment | |
Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) |
Humidity | 5% ~ 90% RH, Non-condensing |
Certifications | |
Safety & EMC | RoHS/CE/FCC compliant |
Card Slot Interface | |
PCIe | PCIe 3.0 x8 |
Card Features | |
Speed | 1GbE/10GbE |
Controller Chip | Intel® Ethernet Controller XL710-BM1 |
Ordering Information

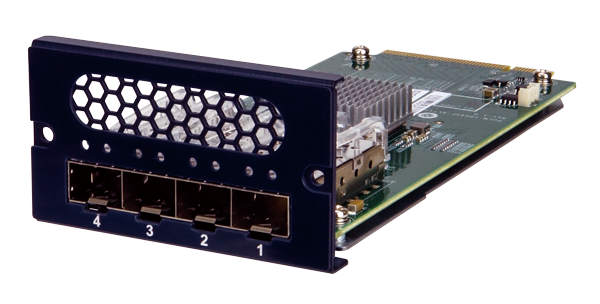

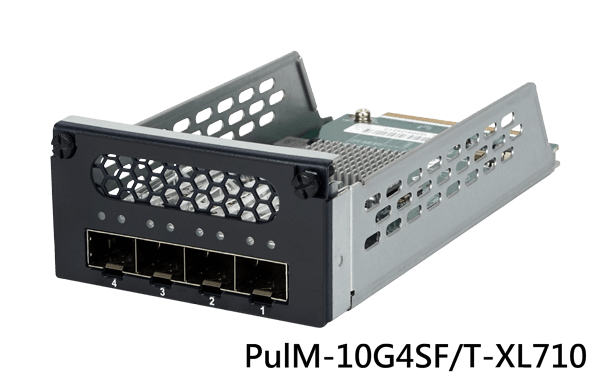

PulM-10G4SF-XL710-R10 | Intel® Ethernet Controller XL710-BM1 based Network Interface Card with 4 x SFP+ by 1 PCIe 3.0 x 8 interface. |
---|
Package Contents
Package Content |
|
---|
