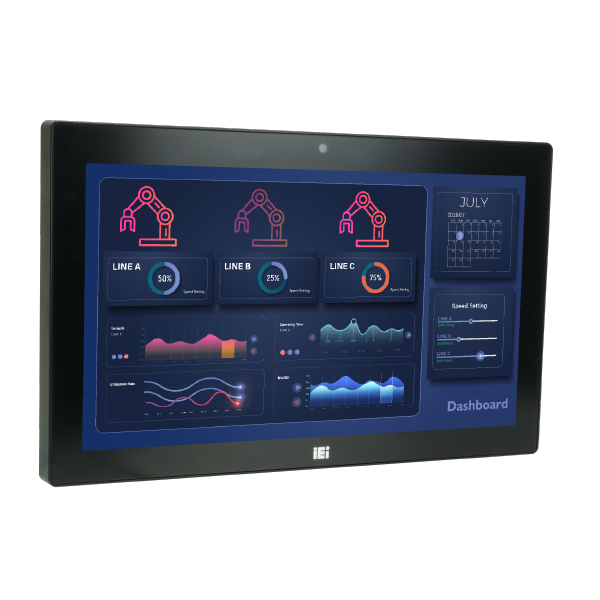

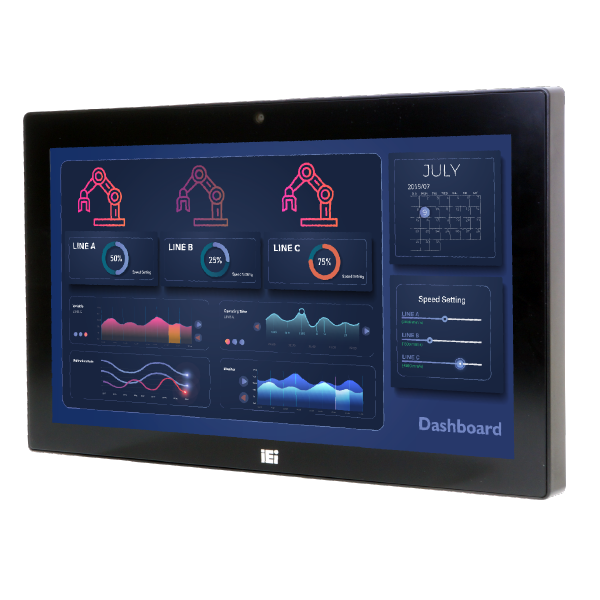

AFL3-W15A-AL
• W15.6” 轻工业交互式平板电脑
• 9 V ~ 30 V 宽范围 DC 输入，带可锁定 DC 插孔
• 可选择 AT/ATX 电源模式
• 内置扬声器
• 支持 PoE PD IEEE803.2 af/at/bt
• 前面板符合 IP64/IP65 标准
• 防紫外线 / 防眩光涂层的触摸屏
Light Industrial Panel PC With PoE Solution
Introducing the AFL3 Touch Panel PC Series with PoE Support｜Product Introduction
Hardware Feature
The Intel® Celeron® processor J3455 Apollo Lake, empowers real-time computing in digital surveillance, new in-vehicle experiences, advancements in industrial and office automation, new solutions for retail and medical, and more. These processors are based on the Goldmont architecture, utilizing Intel’s industry-leading 14 nm process technology.
IEEE 802.3 at Standard PoE PD Panel PC
PoE allows electronic devices to receive both power and data through one Ethernet plug-in, which means less cabling and less cost is required for factory automation.

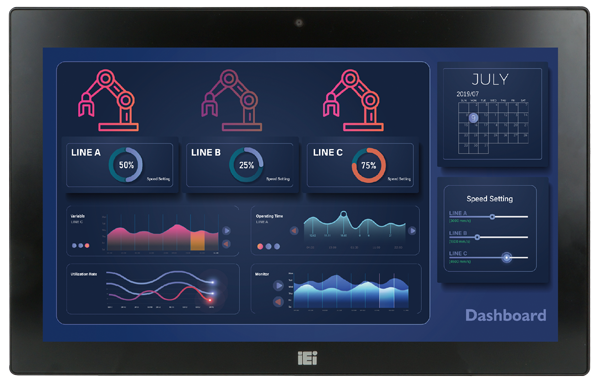

Multi-touch Screen for Industry
IEI’s AFL3 series integrated with PCAP glass touch screen is extremely easy to clean and very resistant to scratches.
Notes: The linen gloves touch function for optional
-20°C ~ 50°C Fanless Design
Suitable for Semi-outdoor Environment
IP65-rated front panel for water and dust resistance
Anti-glare (AG) and UV-resistant Touch Screen
The screen features anti-glare and anti-UV coating, which can reduce the reflection rate from 8% to 1% and effectively slow the aging of the screen.

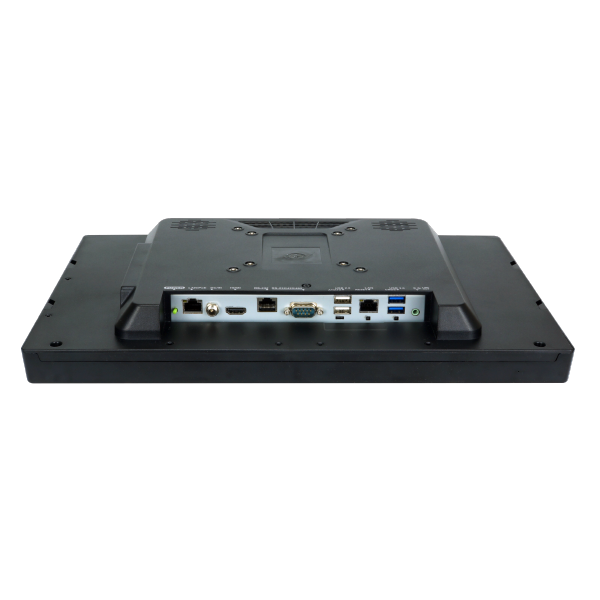

Integrated I/O
Hardware Spec.
| System | |
|---|---|
| Cooling method / System Fan | Fanless |
| CPU | Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz) |
| 存储 |
1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 B+M key PCIe 2242 (USB/PCIE/SATA signal) |
| Communication | |
| Bluetooth | Bluetooth V4.1 |
| 无线 | IEEE 802.11a/b/g/n/ac |
| I/O Interface | |
| 网络 | 2x PCIe GbE by Intel® i211 controller |
| Audio | AMP 2W + 2W (internal speaker) |
| 音频编解码器 | ALC269 |
| RAM | one 204-pin 1866MHz DDR3L DIMMs support up to 8GB |
| Power | |
| Power Requirement | 9~30V , 6.67A~5A |
| Environment | |
| 工作温度 | -20°C ~ 50°C |
| 相对湿度 | 10% to 95% (non-condensing) |
| 存储温度 | -20°C~60°C |
| Weight | |
| Weight | 3.3kg/5.6kg |
| LCD | |
| LCD 尺寸 | 15,6” |
| 分辨率 | 1366 x 768 (16:9) |
| 亮度 | 300 |
| 对比度 | 500:1 |
| LCD 色彩 | 16.7M |
| 像素间距 (mm) | 0.252 (H) x 0.252 (V) |
| 可视角度 (H-V) | 170° / 160° |
| 背光 MTBF | 50000 (LED backlight) |
| Touch | |
| 触摸屏 | Projected capacitive type with USB interface (anti-UV) |
| 触控IC | EETI EXC3160 |
| Other Features | |
| Camera | 2-megapixel with low light function |
| Microphone | digital microphone |
| I/O Interface | |
| I/O 接口 | 1 x AT/ATX Switch |
| 1 x Clear CMOS | |
| 1 x Line out | |
| 1 x RS-232 (RS-232 by DP9 (RI/5V , 1A)) | |
| 2 x USB 2.0 | |
| 2 x USB 3.2 Gen1x1 | |
| 1 x HDMI™ (output) | |
| 2 x LAN (GbE) | |
| 1 x Power Switch | |
| 1 x RS-422/485 (RS-232/422/485 by RJ45) | |
| 1 x Reset Button | |
| 1 x Power In (9 V ~ 30 V lockable DC jack) | |
| OS Support | |
| OS Support | Microsoft Windows 10, Linux |
Ordering Information
| AFL3-W15A-AL-J2/P/PC/4G-R10 | Wide 15.6” 300 cd/m² 1366x768 fanless Panel PC with Intel® Celeron® Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10 |
|---|---|
| AFL3-PD-BT01-KIT01-R10 | PoE PD IEEE802.3 af/at/bt module kit , only for AFL3-xxx-AL optional (W10A/12A/W15A) , R10 |
Package Contents
| Package Content |
|
|---|
