AFL3-W07A-AL

7-inch light industrial PoE touch panel PC with Intel® Celeron N3350 SoC

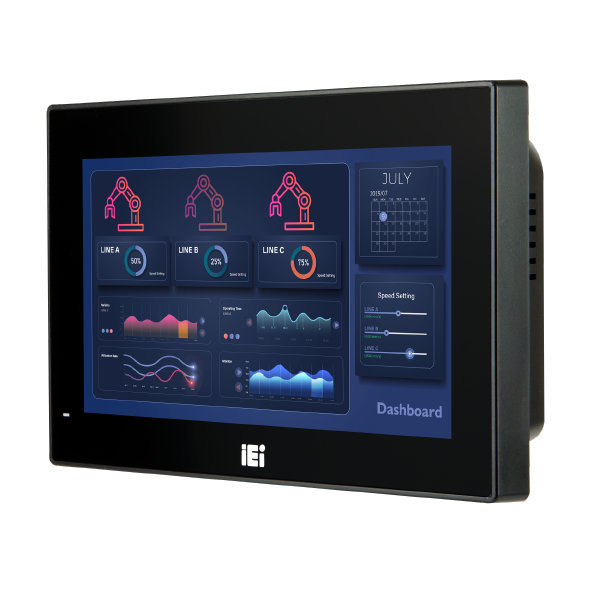

AFL3-W07A-AL poe panel pc left

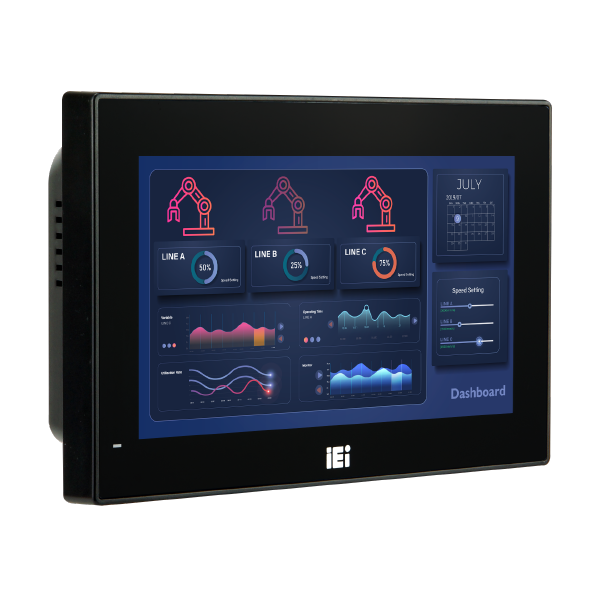

AFL3-W07A-AL poe panel pc right

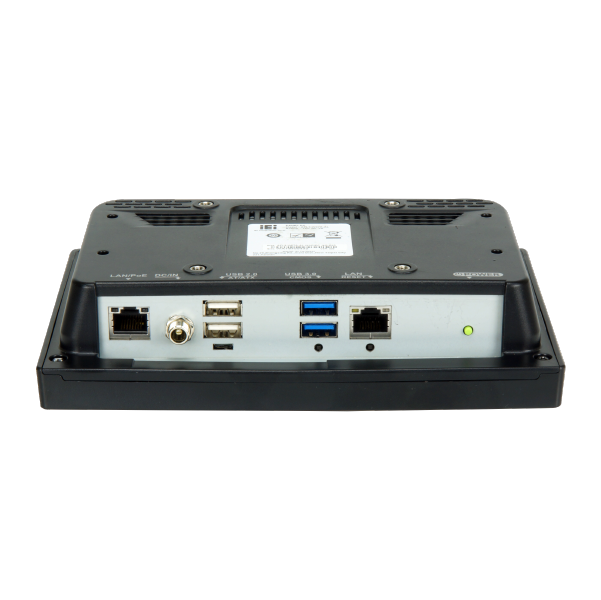

AFL3-W07A-AL poe panel pc I/O
  • AFL3-W07A-AL poe panel pc left
  • AFL3-W07A-AL poe panel pc right
  • AFL3-W07A-AL poe panel pc I/O
• 7" WSVGA 1024 x600 TFT LCD
• Fanless system with Intel® 14nm dual-core Celeron N3350 2.3GHz on-board SoC (up to 2.4GHz, TDP 6W)
• 10-point PCAP multi-touch with anti-glare and anti-UV treatment
• IEEE802.3 at/30W PoE PD power or 12V DC input
• WLAN IEEE 802.11a/b/g/n/ac and Bluetooth 4.1
• Selectable AT/ATX power mode
• Lightweight yet exceptionally strong plastic mechanism with high impact strength and thermal resistance
• IP65-rated front panel for water and dust resistance

Light Industrial Panel PC With PoE Solution

Light Industrial Panel PC With PoE Solution｜AFL3-W07A-AL

Hardware Feature

The Intel® Celeron® processor J3455 Apollo Lake, empowers real-time computing in digital surveillance, new in-vehicle experiences, advancements in industrial and office automation, new solutions for retail and medical, and more. These processors are based on the Goldmont architecture, utilizing Intel’s industry-leading 14 nm process technology.

AFL3-W07A-AL IP65 panel pc hardware feature

IEEE 802.3 at Standard PoE PD Panel PC

PoE allows electronic devices to receive both power and data through one Ethernet plug-in, which means less cabling and less cost is required for factory automation.

IEEE 802.3 at Standard PoE PD Panel PC

Multi-touch Screen for Industry

IEI’s AFL3 series integrated with PCAP glass touch screen is extremely easy to clean and very resistant to scratches.
Notes: The linen gloves touch function for optional

-20°C ~ 50°C Fanless Design

AFL3-W07A-AL_Light-industrial-Panel-PC, -20°C ~ 50°C Fanless Design

Suitable for Semi-outdoor Environment

IP65-rated front panel for water and dust resistance

IP65 panel pc for Semi-outdoor Environment

Anti-glare (AG) and UV-resistant Touch Screen

The screen features anti-glare and anti-UV coating, which can reduce the reflection rate from 8% to 1% and effectively slow the aging of the screen.

Integrated I/O

AFL3-W07A-AL industrial panel pc Integrated integrated I/O

Specifications

Hardware Spec.

System
Cooling method / System Fan Fanless
CPU Intel® Celeron N3350
(2M Cache, up to 2.4 GHz) TDP 6W
存储 1 x M.2 B+M key PCIe 2242 (USB/SATA signal)
Communication
Bluetooth Bluetooth V4.1
无线 IEEE 802.11a/b/g/n/ac
I/O Interface
网络 2x PCIe GbE by Intel® i211 controller
Audio AMP 2W (internal speaker)
音频编解码器 ALC269
RAM One 4GB DDR3L 204-pin SO-DIMM memory pre-installed
Power
Power Requirement 12V , 3A
Environment
工作温度 -20ºC ~ 50ºC
安规&电磁 CE / FCC class A
相对湿度 10% to 95% (non-condensing)
存储温度 -20°C~60°C
IP Level IP 65 compliant front panel
Weight
Weight 0.73kg/1.81kg
LCD
LCD 尺寸 7”
分辨率 1024 x 600 (16:9)
亮度 500
对比度 700:1
LCD 色彩 16.7M
像素间距 (mm) 0.1506 (H) x 0.1432 (V)
可视角度 (H-V) 150º / 145º
背光 MTBF 20000 (LED backlight)
Touch
触摸屏 Projected capacitive type with USB interface (anti-UV)
触控IC EXC80H60
I/O Interface
I/O 接口 1 x AT/ATX Switch
1 x Clear CMOS
2 x USB 2.0
2 x USB 3.2 Gen1x1
2 x LAN (GbE)
1 x Power Switch
1 x Reset Button
1 x Power In
OS Support
OS Support Microsoft Windows 10, Linux

Ordering Information

AFL3-W07A-AL-N1/P/PC/4G-R10 7" 500cd/m2 1024x600 Panel PC with Intel® Celeron® Processor N3350 (6W) on-board Processor , on-baord POE at, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch,R10

Package Contents

Package Content

  • 4 x Round head machine screw

  • 4 x Pan head machine screw

  • 1 x Power cord

  • 1 x Power adapter
