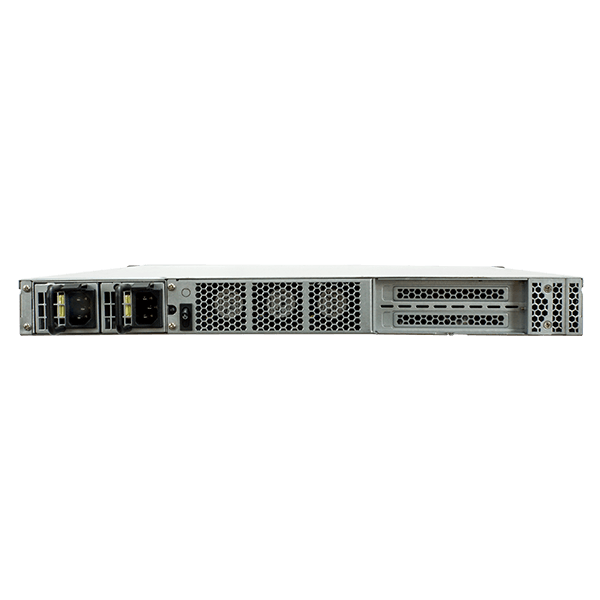

PUZZLE-IN004

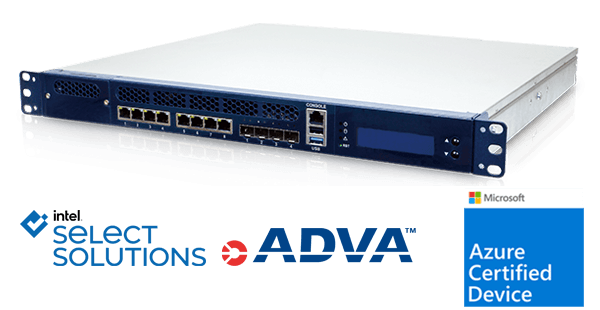

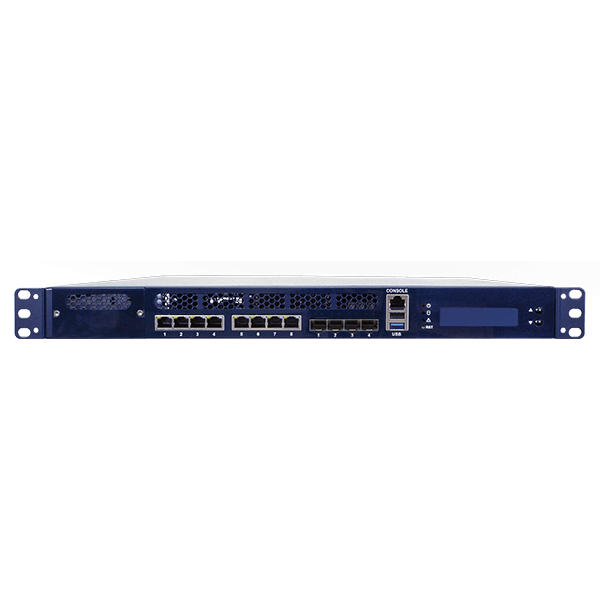

1U Rackmount Network Appliance with Intel® Xeon® D Processor support 8 x GbE, 4 x 10GbE SFP+ and 1 PCIe x8 slot

  • Overview

    ● Intel® Xeon D-2100 series processor (Skylake-D) with optional Intel® QAT
    ● Support eight GbE RJ-45 via Intel® I211-AT, four 10 GbE SFP+ and IEI networking module
    ● 8 x 288-pin RDIMM DDR4 2666MHz, RDIMM up to 256GB / LRDIMM up to 512GB
    ● 1 x RJ-45 Console, 1 x USB 3.2 Gen 1 (5Gb/s), 1 x USB 2.0, LCM
    ● 2 x 2.5” SATA drive bay, 2 x M.2 M key for nVME,1 x PCIe Mini with SIM card
    ● Support one PCIe 3.0 x8 slot, one PulM module slot
    ● Redundant PSUs
    ● Support open source software, such as pfSense® and OPNsense®.
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form Factor1U
      System
      CPUIntel® Xeon® D-2145NT processor 8-core, 11M cache, 1.90 GHz
      Intel® Xeon® D-2146NT processor 8-core, 11M cache, 2.30 GHz
      Intel® Xeon® D-2166NT processor 12-core, 16.5M cache, 2.00 GHz
      Intel® Xeon® D-2177NT Processor 14-core, 19.25M Cache, 1.90 GHz
      Intel® Xeon® D-2187NT processor 16-core, 22M cache, 2.00 GHz
      ChipsetIntegrated in CPU
      Memory8 x DDR4 2133/2400MHz ECC DDR4 RDIMM/LRDIMM
      Memory Max.RDIMM up to 256GB
      LRDIMM up to 512GB
      Cooling method / System Fan4 x Cooling fans with smart fan
      Physical Characteristics
      Dimensions (LxWxH) (mm)426x430x44.2
      Net Weight7 kg
      Storage
      Storage2 x 2.5” SSD/HDD Bay Support SATA 3.0 (6 Gbps)
      I/O Interface
      Ethernet4 x SFP+ 10 GbE (Intel® X722 integrated in CPU )
      8 x LAN GbE RJ-45 (NIC: Intel I211-AT)
      I/O Interface1 x External RS-232 Console
      1 x External USB 2.0
      1 x External USB 3.2 Gen1x1
      Expansion1 x PCIe x8 double width
      1 x PCIe mini Card Slot (PCIe + USB 2.0) with SIM card
      2 x M.2(NGFF) M.2 B Key (3042/2260) (SATA 3.0 and USB 3.2 Gen 1)
      Support SATA SSD or 4G LTE module (USB signal)
      Other Features
      TPM1 x TPM 2.0 pin header
      Power
      Power Supply300W, 100V~240V (Redundant power)
      Environment
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      HumidityRelative humidity: 5% ~ 90% non-condensing
      Certifications
      Safety & EMCCE / FCC
      OS Support
      OS SupportLinux Ubuntu 18.04.04
      CentOS 7/ Red Hat/ Fedora EPEL
      Microsoft Windows 10
    • Ordering Info.

      Item No. Description
      PUZZLE-IN004-XD5/64G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2187NT Processor, four 16GB DDR4, two 480GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
      PUZZLE-IN004-XD4/64G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2177NT Processor, four 16GB DDR4, two 480GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
      PUZZLE-IN004-XD3/32G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2166NT Processor, four 8GB DDR4 , two 240GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
      PUZZLE-IN004-XD2/32G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2146NT Processor, four 8GB DDR4, two 240GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
      PUZZLE-IN004-XD1/32G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2145NT Processor, four 8GB DDR4, two 240GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
    • Package Contents

      • .2 x Power cord

      • .2 x Rack mounting ears

      • .6 x Screws for rack mounting ears

      • .USB to console cable (Option)

      • .RS-232 to console cable (Option)

      • .Slide rail (Option)
