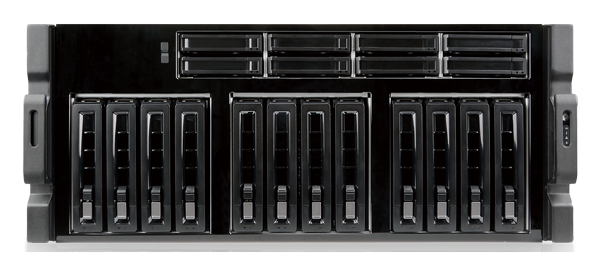

GRAND-C422-20D-H

The GRAND-C422-20D is an AI training system with Intel® Xeon® W family processor and powerful PCIe expansion ability, Support RAID controller card

  • Overview

    ●Intel® Xeon® W family processor supported
    ●Up to 7 x PCIe Slot, up to 4 dual width GPU cards
    ●Water cooling system on CPU
    ●Support SAS SSD
    ●Support one M.2 SSD M-key slot (NVMe PCIe 3.0 x4)
    ●Support 10GbE network
    ●Support RAID controller card
    ●IPMI remote management
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU Intel® Xeon® W Family Processors
      Chipset Intel® C422
      Memory Max. Memory expandable up to: 256 GB (64 GB x 4)
      Cooling method / System Fan 2 x Smart Fan (12cm 12V DC)
      Physical Characteristics
      Rack Height 4U
      Storage
      Storage 8 x 2.5” SSD/HDD Bay
      12 x 3.5” HDD Bay
      1 x M.2(NGFF)
      20 x SATA(Support SAS/SATA drives)
      I/O Interface
      Display Output 1 x VGA
      Ethernet 2 x LAN(1 x 10Gbase-T, 1 x 1Gbase-T)
      I/O Interface 1 x External RS-232
      2 x External USB 2.0
      4 x External USB 3.0
      Expansion 2 x PCIe x 16(2 x PCIex16 for GRAND-C422-20D-H1)
      3 x PCIe x 4(3 x PCIex4 for GRAND-C422-20D-H1, 2 x PCIex4 for GRAND-C422-20D-H2)
      5 x PCIe x 8(1 x PCIex8 for GRAND-C422-20D-H1, 5 x PCIex8 for GRAND-C422-20D-H2)
    • Ordering Info.

      Item No. Description
      GRAND-C422-20D-H2A1-R10 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon® W-2123 with C422 chipset, 32G DDR4 w/ECC, 7 x PCIe expansion slot, and 1200W redundant PSU, RoHS
      GRAND-C422-20D-H2-R10 Barebone, 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon W series with C422 chipset, 7 x PCIe expansion slot, and 1200W redundant PSU, RoHS
      GRAND-C422-20D-H1A1-R10 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon® W-2123 with C422 chipset, 32G DDR4 w/ECC, 6 x PCIe expansion slot, and 1200W redundant PSU, RoHS
      GRAND-C422-20D-H1-R10 Barebone, 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon W series with C422 chipset, 6 x PCIe expansion slot, and 1200W redundant PSU, RoHS
    • Package Contents

      • Ethernet cable x 2

      • Power cord x 2

      • Flat head screw (for 3.5” HDD)

      • Flat head screw (for 2.5” HDD)
