AFL3-W15C-ULT5

Intel® 8th Generation Whiskey Lake processor

End of Life

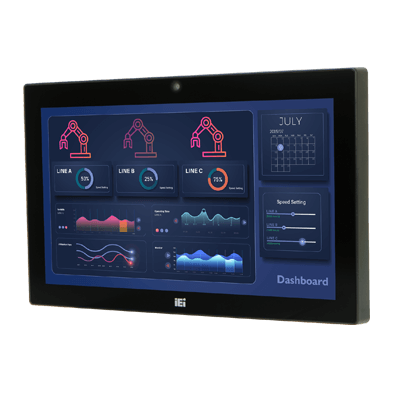

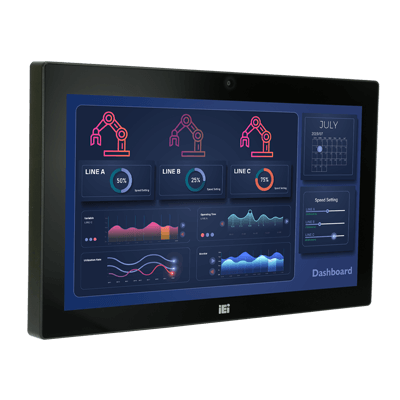

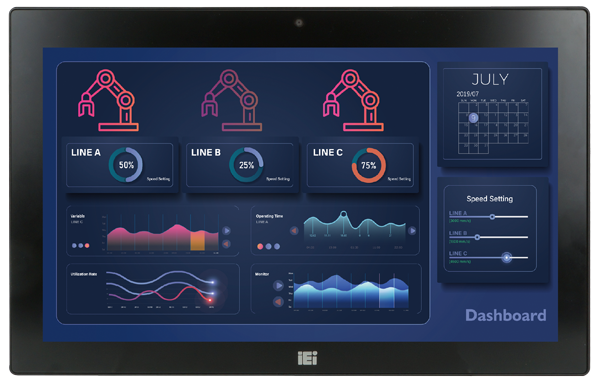

AFL3-W15C-ULT5 industrial panel PC
AFL3-W15C-ULT5 industrial panel PC
AFL3-W15C-ULT5 industrial panel PC
  • AFL3-W15C-ULT5 industrial panel PC
  • AFL3-W15C-ULT5 industrial panel PC
  • AFL3-W15C-ULT5 industrial panel PC

End of Life Notice

* Effective Date: 2024/03/29

» W15.6”~ W21.5” light industrial interactive panel PC
» 8th Generation Intel® Core™ i5 on-board Whiskey Lake-U processor
» Selectable AT/ATX power mode
» Built-in speakers
» Support PoE PD IEEE803.2 af/at/bt (optional)
» IP64 compliant front panel
» Touch screen wth anti-UV / anti-glare coating
» Support Auto Flow Control over RS-485

Hardware Spec.

System
Cooling method / System Fan Fanless
CPU Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W)
Storage 1 x M.2 M-key 2242/60/80 PCIe 3.0 x4 (PCIe/SATA Signal)
1 x 2.5” SATA 3Gb/s HDD bay
Communication
Bluetooth Bluetooth V4.1
Wireless IEEE 802.11a/b/g/n/ac
I/O Interface
Ethernet LAN1 & LAN2: Intel® I211; LAN3: Intel® I219
Audio AMP 3W + 3W (internal speaker)
Audio Codec ALC888S
RAM Two 260-pin 2400MHz dual-channel DDR4 SO-DIMMs supporting up to 32 GB
Power
Power Requirement 12V, 8A
Environment
Operating Temperature -20ºC ~ 50ºC (-4ºF ~ 122ºF )
Humidity 10% ~ 95% (non-condensing)
Storage Temperature -20°C ~ 60°C (-4ºF ~ 140ºF )
Weight
Weight 4.5kg/6.5kg
LCD
Size 15.6”
Resolution 1366 X 768 (16:9)
Brightness (cd/m2) 300
Contrast Ratio 500:1
LCD Color 16.7M
Viewing Angle (H-V) 170º / 160º
Backlight MTBF 50000 (LED backlight)
Touch
Touch Screen PCAP with USB interface (anti-UV/AG coating)
Touch Controller EXC3160

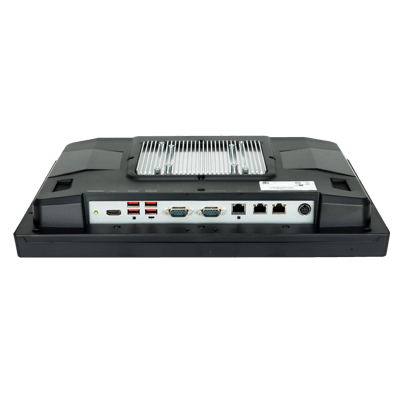

I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Clear CMOS
1 x RS-232
1 x RS-422/485 (RS-232/422/485)
1 x HDMI™
3 x LAN (GbE)
1 x Power Switch
1 x Reset Button
1 x Power In
4 x USB 3.2 Gen2
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

AFL3-W15C-ULT5-i5/P/PC/4G-R10 Wide 15.6”300 cd/m² 1366x768 Panel PC with Intel® 14nm 8th Whiskey Lake Core™ i5-8365UE (15W) on-board Processor (ULT) , POE option , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,1*4GB DDR4 RAM , with AG, R10

Package Contents

Package Content
  • 4 x Round head machine screw

  • 4 x Pan head machine screw

  • 1 x Power cord

  • 1 x Power adapter
