End of Life Notice
* Effective Date: 2025/04/03

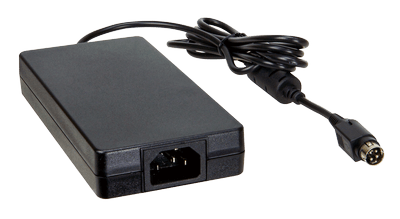

150 W AC/DC Adapter
Hardware Spec.
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 80°C |
| Input | |
| Voltage | 90-264 VAC |
| Frequency | 47-63 Hz |
| Input Current | 7.89A |
| Inrush Current | 7.89A |
| Output | |
| Voltage | 19V |
| General | |
| Watt | 150W |
| Efficiency | 87% |
| Dimensions | 75.6 x 151.3 x 25.4 (mm) |
Ordering Information
| 63040-010150-700-RS | Adapter Power;FSP;FSP150-ABAN3;9NA1504811;Active PFC;Vin:90~264VAC;150W;Dim:75.6*151.3*25.4mm;Plug=6.5mm;Cable=1500mm;Erp(NO LOAD 0.15W);Vout:19VDC;Din 4Pin/lock;CCL;RoHS |
|---|
