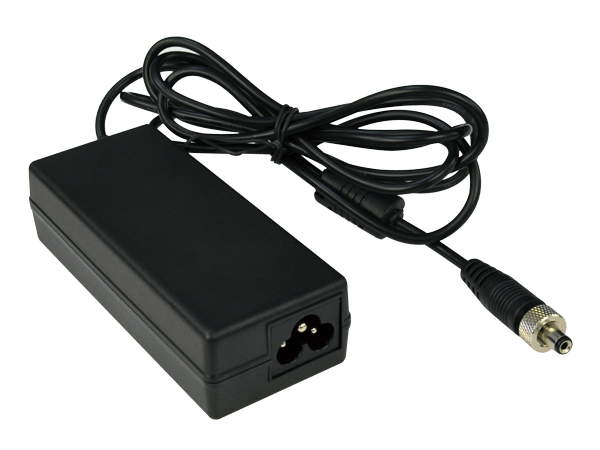

FSP036-RHBN3

36 W AC/DC Adapter

Specifications

Hardware Spec.

Environment
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 80°C
Input
Voltage 90-264 VAC
Frequency 47-63 Hz
Input Current 1.8A
Inrush Current 3A
Output
Voltage 12V
General
Watt 36W
Efficiency 88.3%
Dimensions 37.8 x 89.8 x 27.0 (mm)

Ordering Information

63040-010036-220-RS Adapter Power;FSP;FSP036-RHBN3;9NA0362708;;Vin:90~264VAC;36W;Dim:37.8*89.8*27.0mm;Plug=9.5mm;Cable=1500mm;Erp(NO LOAD 0.075W);Vout:12VDC;Φ2.5/Φ5.5;CCL;RoHS
63040-010036-210-RS Adapter Power;FSP;FSP036-RHBN3;9NA0362707;;Vin:90~264VAC;36W;Dim:37.8*89.8*27.0mm;Plug=7.5mm;Cable=1500mm;Erp(NO LOAD 0.075W);Vout:12VDC;Φ2.5/Φ5.5/lock;CCL;RoHS

Download Specs.
