PulM-1G8T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS

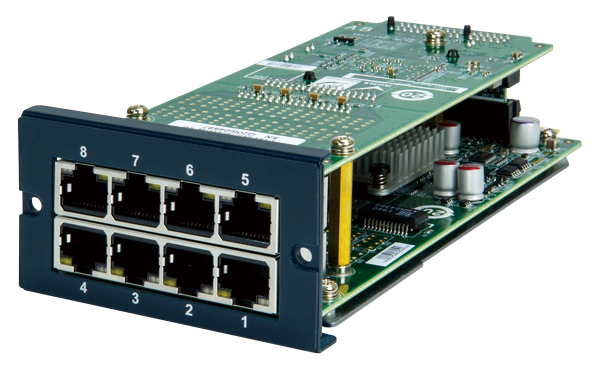

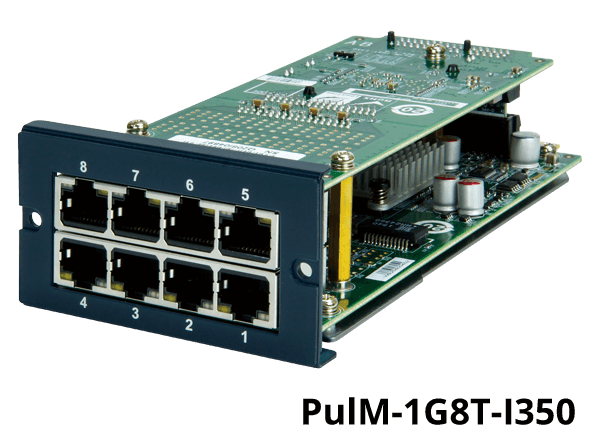

PulM-1G8T-I350 Network Module
PulM-1G8T-I350 Network Module

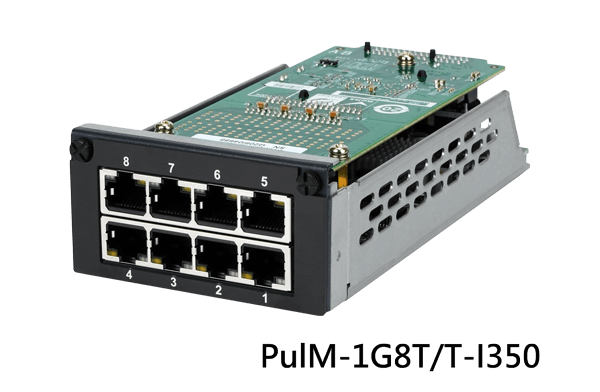

PulM-1G8T/T-I350 NIC

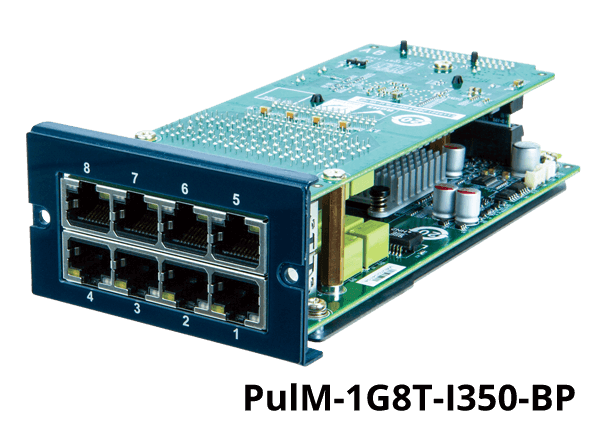

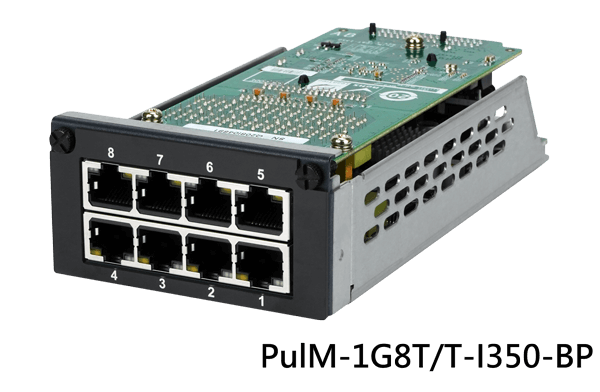

PulM-1G8T/T-I350-BP Network Interface Card
  • PulM-1G8T-I350 Network Module
  • PulM-1G8T-I350 Network Module
  • PulM-1G8T/T-I350 NIC
  • PulM-1G8T/T-I350-BP Network Interface Card
• 2 x Intel® Ethernet Controller I350-AM4
• 8 x GbE RJ-45 connectors
• 2 PCIe2.0 x4
• LAN Bypass (by sku)
• CE/FCC/RoHS compliant

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 x 77.8 x 44.2
I/O Interface
Ethernet 8 x LAN
Falt-tolerance
LAN Bypass Yes (by sku)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC CE/FCC/RoHS compliant
Card Slot Interface
PCIe 2 PCIe 2.0 x4
Card Features
Speed GbE
Controller Chip Intel® Ethernet Controller I350-AM4

Ordering Information

PulM-1G8T-I350-R10 Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS.
PulM-1G8T-I350-BP-R10 Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 with bypass interface, RoHS.

Package Contents

Package Content
  • • 1 x PulM-1G8T-I350 or PulM-1G8T-I350-BP module

  • • 1 x L-shaped T10 Plum Wrench

  • • 2 x Torx Screws

  • • 1 x QIG
