PUZZLE-A001A

1U Rackmount Network Appliance with AMD EPYC™ Embedded 3000 series processor, one PulM module slot & 2 PCIe x4 slots

End of Life

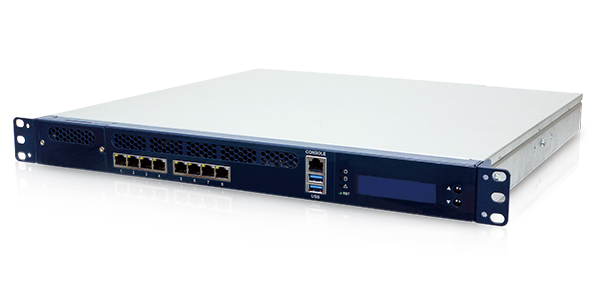

PUZZLE-A001A Network Appliance

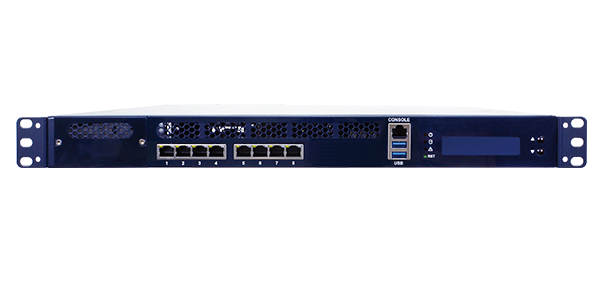

PUZZLE-A001A Network Appliance

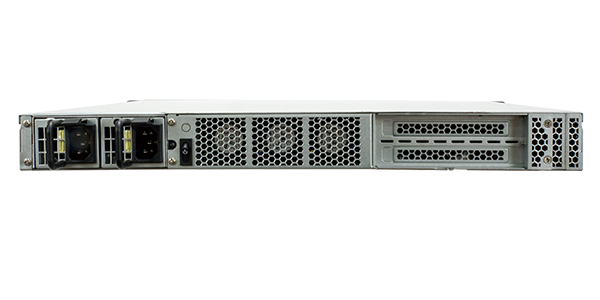

  • PUZZLE-A001A Network Appliance
  • PUZZLE-A001A Network Appliance

End of Life Notice

* Effective Date: 2021/08/18

• AMD EPYC™ Embedded 3000 series processor, highperformance System-on-Chip
• Support 8 x GbE RJ-45 via BCM 5720
• 4 x 288-pin DDR4 2666 MHz, UDIMM up to 64GB / RDIMM up to 128GB
• 1 x RJ-45 Console, 2 x USB 3.2 Gen 1 (5Gb/s)
• 2 x 2.5” SATA 3.0 drive bay, 1 x M.2 B-Key (SATA 3.0, USB 3.2 Gen 1 (5Gb/s)), 1 x PCIe Mini card (PCIe 3.0, USB 2.0)
• Support two PCIe x4 slots, one PulM module slot
• Redundant PSUs

Hardware Spec.

Form Factor
Form Factor 1U
System
CPU PUZZLE-A001A-SO2 : AMD EPYC™ Embedded 3201 processor, 8C/8T, up to 3.10 GHz
PUZZLE-A001A-SO3 : AMD EPYC™ Embedded 3151 processor, 4C/8T, up to 2.90 GHz
Chipset Integrated in CPU
Memory 4 x DDR4 2133/2666 MHz ECC or non-ECC UDIMM/RDIMM
Memory Max. 4 x 288-pin DIMM
UDIMM Up to 64GB / RDIMM Up to 128GB
Cooling method / System Fan 4 x Cooling fans with smart fan
Physical Characteristics
Rack Height 1U
Dimensions (LxWxH) (mm) 426 x 430 x 44.2
Storage
Storage 2 x 2.5” SSD/HDD Bay
1 x M.2(NGFF)1 x 2260/3042 B key (SATA and USB 3.2 Gen 1 (5Gb/s))
Support SATA SSD and 4G LTE module
I/O Interface
Ethernet 8 x LAN
I/O Interface 1 x External RS-2321 x RJ-45 (Console)
Expansion Description:1 x PulM module slot
1 x PCIe mini Card Slot(PCIe 3.0, USB 2.0)
2 x PCIe x4
Other Features
TPM 1 x TPM 2.0 pin header
Power
Power Supply 300W, 100V~240V (Redundant power)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC CE / FCC/RoHS
OS Support
OS Support Linux Ubuntu 18.04.04
CentOS 7/ Red Hat/ Fedora EPEL

Ordering Information

PUZZLE-A001A-SO3/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3151 processor, four DDR4 slots, and eight 1GbE , one PulM slot, two PCIe expansion, Redundant Power, RoHS
PUZZLE-A001A-SO2/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3201 processor, four DDR4 slots, and eight 1GbE , one PulM slot, two PCIe expansion, Redundant Power, RoHS

Package Contents

Package Content
  • 2 x Power cord

  • 2 x Rack mounting ears

  • 6 x Screws for rack mounting ears

  • 1 x RS-232 to console cable


Download Specs.
