Intel® Celeron N3350 (2M Cache, up to 2.4 GHz) TDP 6W

End of Life

AFL3-W07A-AL2 IP65 Fanless Panel PC IO
AFL3-W07A-AL2 IP65 Fanless Panel PC IO
AFL3-W07A-AL2 IP65 Fanless Panel PC IO
  • AFL3-W07A-AL2 IP65 Fanless Panel PC IO
  • AFL3-W07A-AL2 IP65 Fanless Panel PC IO
  • AFL3-W07A-AL2 IP65 Fanless Panel PC IO

End of Life Notice

* Effective Date: 2023/10/17

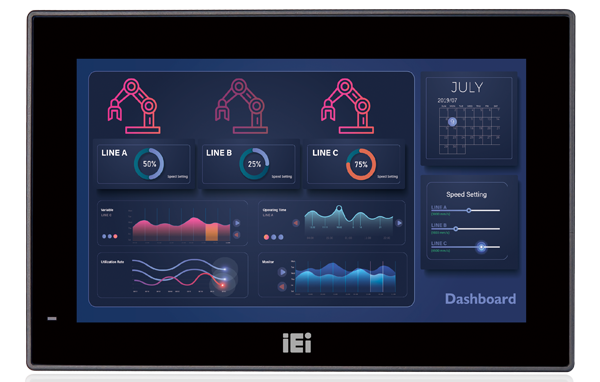

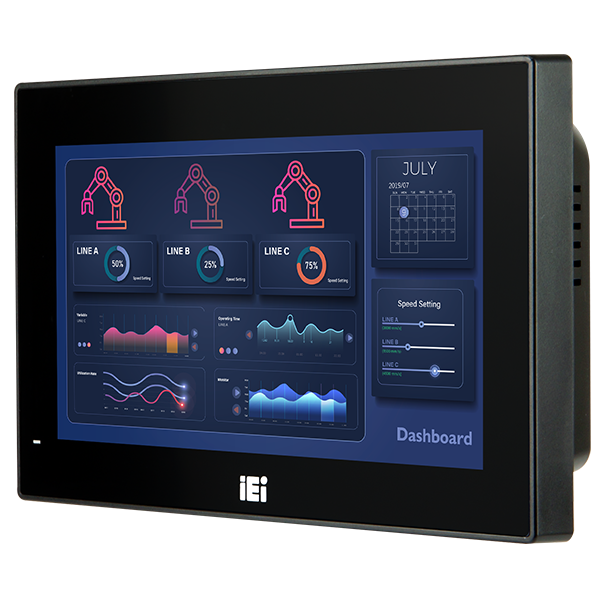

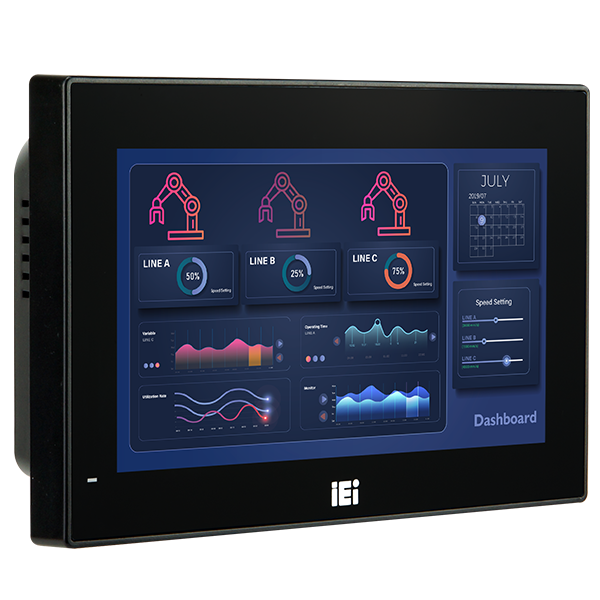

» W7” light industrial interactive panel PC
» 12V DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» On board IEEE802.3 at standard
» IP65 compliant front panel
» Touch screen wth anti-UV / anti-glare coating
» HDMI™ output
» RS232/422/485 DB9 connector

Light Industrial Panel PC With PoE Solution

Light Industrial Panel PC With PoE Solution|AFL3-W07A-AL

Hardware Feature

The Intel® Celeron® processor J3455 Apollo Lake, empowers real-time computing in digital surveillance, new in-vehicle experiences, advancements in industrial and office automation, new solutions for retail and medical, and more. These processors are based on the Goldmont architecture, utilizing Intel’s industry-leading 14 nm process technology.

AFL3-W07A-AL IP65 panel pc hardware feature

IEEE 802.3 at Standard PoE PD Panel PC

PoE allows electronic devices to receive both power and data through one Ethernet plug-in, which means less cabling and less cost is required for factory automation.

IEEE 802.3 at Standard PoE PD Panel PC

Multi-touch Screen for Industry

IEI’s AFL3 series integrated with PCAP glass touch screen is extremely easy to clean and very resistant to scratches.
Notes: The linen gloves touch function for optional

-20°C ~ 50°C Fanless Design

AFL3-W07A-AL_Light-industrial-Panel-PC, -20°C ~ 50°C Fanless Design

Suitable for Semi-outdoor Environment

IP65-rated front panel for water and dust resistance

IP65 panel pc for Semi-outdoor Environment

Anti-glare (AG) and UV-resistant Touch Screen

The screen features anti-glare and anti-UV coating, which can reduce the reflection rate from 8% to 1% and effectively slow the aging of the screen.

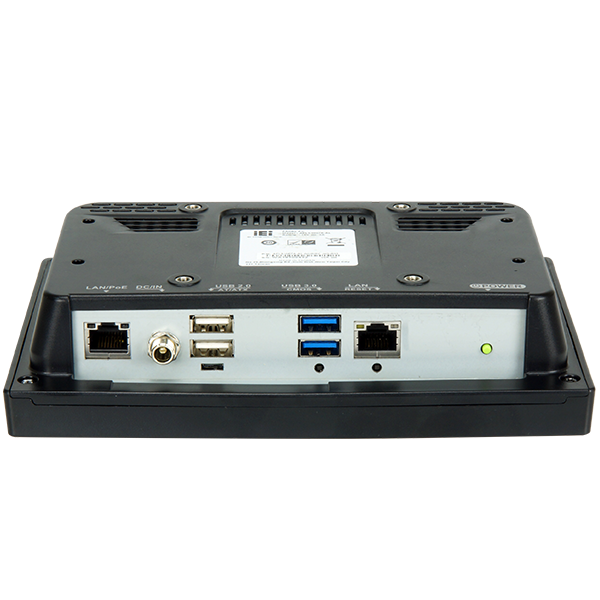

Integrated I/O

AFL3-W07A-AL2 industrial panel pc Integrated integrated I/O

Hardware Spec.

Cooling method / System Fan Fanless
CPU Intel® Celeron N3350 (2M Cache, up to 2.4 GHz) TDP 6W
Storage 1 x M.2 B+M key PCIe 2242 (USB/SATA signal)
Bluetooth Bluetooth V4.1
Wireless IEEE 802.11a/b/g/n/ac
I/O Interface
Ethernet 2x PCIe GbE by Intel® i211 controller
Audio AMP 2W (internal speaker)
Audio Codec ALC269
RAM one 204-pin 1866MHz DDR3L DIMMs support up to 8GB
Power Requirement 12V , 3A
Operating Temperature -20ºC ~ 50ºC
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C~60°C
Weight 0.73kg/1.81kg
Size 7”
Resolution 1024 x 600 (16:9)
Brightness (cd/m2) 500
Contrast Ratio 700:1
LCD Color 16.7M
Pixel Pitch (mm) 0.1506 (H) x 0.1432 (V)
Viewing Angle (H-V) 150º / 145º
Backlight MTBF 20000 (LED backlight)
Touch Screen Projected capacitive type with USB interface (anti-UV)
Touch Controller EXC80H60
I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Clear CMOS
1 x RS-232 (RS232/422/485 (by DB9))
1 x HDMI™
1 x LAN (GbE)
1 x Power Switch
2 x USB 3.2 Gen1x1 (5Gb/s)
1 x Reset Button
1 x Power In
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

AFL3-W07A-AL2-N1/P/PC/4G-R10 7" 500cd/m2 1024x600 fanless Panel PC with Intel® Celeron® Processor N3350 (6W) on-board Processor , w/COM , on-baord POE at, 1*4GB DDR3L , WiFi module, PCAP touch,R10

Package Contents

Package Content
  • 4 x Round head machine screw

  • 4 x Pan head machine screw

  • 1 x Power cord

  • 1 x Power adapter
