» Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption
» 2 x SODIMM Slots, up to 8GB memory with 2 x 4GB DIMMs
» 1 x PCIe x2 slot can support PCIe expansion card
» Storage expandable via USB 3.2 Gen1 port

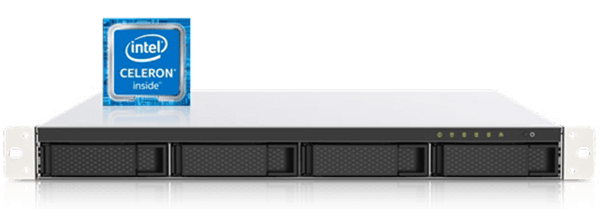

Overview
Powered by an Intel® Celeron® J4125, quad-core 2.0 GHz processor, the GRAND-GL features two 2.5GbE RJ45 ports, providing up to 2.5 times the speed of Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. With a PCIe Gen 2.0 x 2 slot, the GRAND-GL provides flexibility in extending NAS functionality, allowing you to install various cards for extra network ports, M.2 SSD caching/tiering, or Wi-Fi connectivity. The GRAND-GL ensures data security with AES 256-bit encryption, boosting system performance while ensuring the safety of sensitive business data stored.

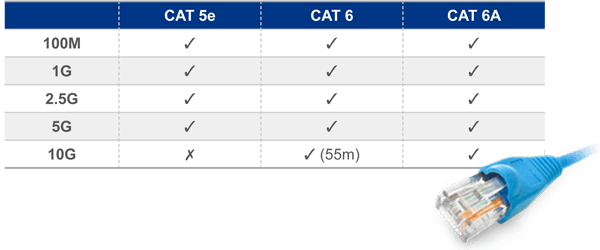

Use the Existing Wiring Infrastructure to Support 2.5GbE
No more bandwidth restriction by 1GbE interface! No more DIY to install the 2.5GbE driver to your system from other venders!! GRAND-GL is equipped with 2 independent 2.5GbE NICs for faster and smoother multi-device networking experience. The available PCIe expansion slot is ready for the future business growth.
Accelerate IOPS Performance with SSD Caching
Adding an SSD cache to the GRAND-RE is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS demanding applications (including databases and virtualization) and can significantly improve overall workflows.
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | 1U, Rackmount |
| System | |
| CPU | Intel® Celeron® J4125 Processor (4M Cache, up to 2.70 GHz) |
| Memory Max. | SODIMM x 2 (MAX. 8GB) |
| Cooling method / System Fan | 2 x 40mm, 12V |
| Physical Characteristics | |
| Rack Height | 1U, 4Bay |
| Dimensions (LxWxH) (mm) | 43.3 (H) x 482.6 (W) x 483.9 (D) mm |
| Net Weight | 8.12 kg |
| Storage | |
| Storage | 4 x 3.5” HDD Bay |
| 4 x SATA | |
| I/O Interface | |
| Display Output | 1 x HDMI™ |
| Ethernet | 2 x LAN |
| I/O Interface | 2 x External USB 2.0 |
| 2 x External USB 3.2 Gen1x1 | |
| Environment | |
| Operating Temperature | 0~40˚C |
| Humidity | 5 to 95% non-condensing, wet bulb：27˚C. |
Ordering Information
| GRAND-GL-04A-RP-R10 | 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server (Barebone), Intel Celeron J4125, 2x 2.5GbE, 2 x 300W PSU |
|---|---|
| GRAND-GL-04A-R10 | 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server (Barebone), Intel Celeron J4125, 2x 2.5GbE, 250W PSU |
Package Contents
| Package Content |
|
|---|
