PUZZLE-IN005

2U Rackmount Network Appliance with 3rd Gen. Intel®Xeon® Scalable Processor,
Eight PulM Module Slots & One PCIe x8 Expansion

End of Life

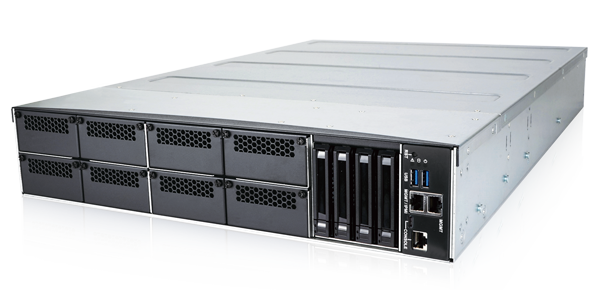

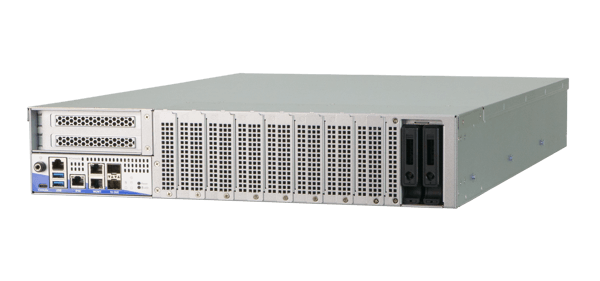

PUZZLE-IN005 Intel® 2U Network Appliance

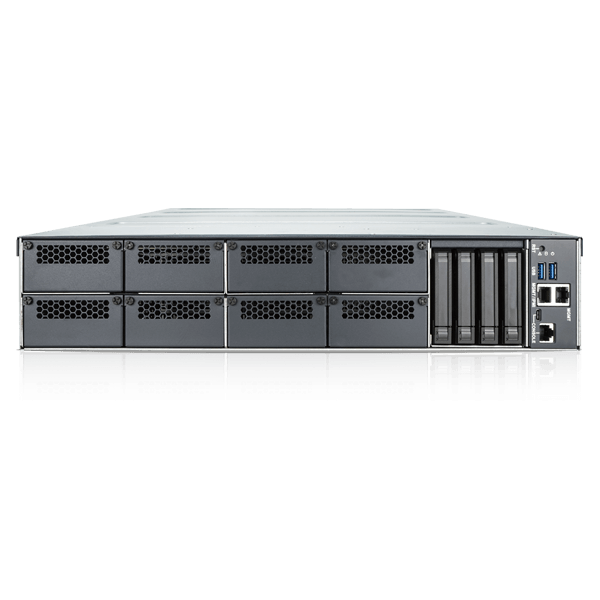

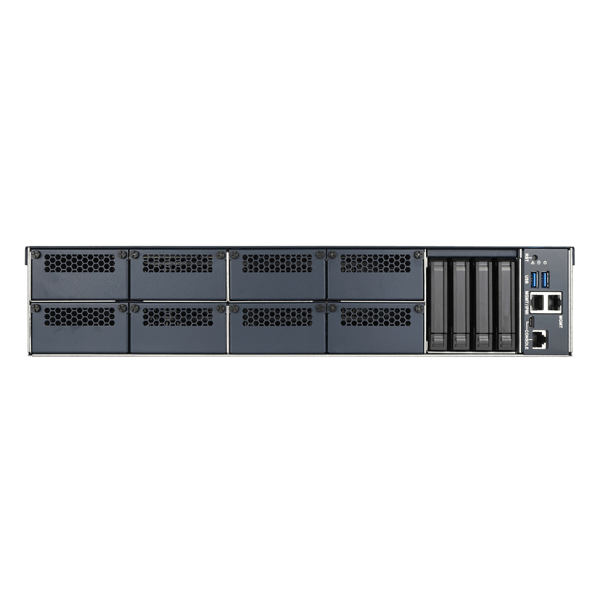

PUZZLE-IN005 Intel® 2U Network Appliance - Front
  • PUZZLE-IN005 Intel® 2U Network Appliance
  • PUZZLE-IN005 Intel® 2U Network Appliance - Front

End of Life Notice

* Effective Date: 2024/09/06

• Dual Intel® Ice lake Xeon® Scalable processors (up to 185W)
• 20 x DDR4 R-DIMM / LR-DIMM memory
• 8 PulM modules with PCIe gen4 x8 signal
• Intel® Quick-Assist Technology
• 4 x U.2(PCIe x4) 2.5" SSD compatible with SATA
• 1+1 1200W CRPS redundant power supply
• 4+1 hot swappable system fans

Higher Core Counts Network Solution for 5G MEC / O-RAN and AI


The PUZZLE-IN005, a 2U rackmount higher core counts network appliance, designed with two 3rd Gen. Intel® Xeon® Scalable processor platform in 10nm technology to offer unlimited computing performance and well throughput. It features extremely high speed experience with latest PCIe Gen4 to provide up to 200GbE data transmission speed, and Intel® QuickAssist Technology (Intel® QAT) to boost encryption and compression performance and maximize CPU utilization. Based on these brilliant features, PUZZLE-IN005 is perfectly meet the demand for Cybersecurity, Telecom, 5G MEC and AI.

3rd Gen. Intel® Xeon Scalable Processor


Outstanding HPC and AI Experience

Intel® Ice Lake-SP, the first server processor with 10nm technology, and its companion Whitley 2-socket server platform increase the number of DDR4 memory channels from six to eight per CPU and introduce PCI Express 4.0. The platform supports up to 6TB per socket using Intel Optane persistent memory technology.

Intel® QuickAssist Technology


Boost Encryption and Compression Performance

Intel® QuickAssist Technology integrates hardware acceleration of compute intensive workloads. It can maximize CPU utilization and achieve well improvement, which includes symmetric encryption and authentication, asymmetric encryption, digital signatures, RSA, DH, ECC, and lossless data compression.

PCI Express 4.0 Ready


Double Bandwidth, Double Speed

To achieve the bandwidth requirements of big data/networking /AIoT applications, the PUZZLE-IN005 supports PCIe 4.0 to either increase the lane width or speed. It has doubled the throughput to 16GT/s, compared to 8GT/s for PCIe 3.0, delivering higher performance and low latency.

Smarter Fan Operation 4+1


Overheating? It’s Not a Problem!

The PUZZLE-IN005 features smart fan operation which uses 4+1 hot-swappable fans to provide strong cooling convection and high reliability for uninterrupted service. Moreover, users are able to manage the fan system and noise production by defining the fan trigger settings.

Scalable Expansion Capability


Diverse Selections, Different Combinations

The PUZZLE-IN005 is designed with eight network module expansion slots to add on different functions, bandwidths or even SSD for more storage needs. In addition, it has one PCIe x8 slot to adopt AI accelerating card or add-on cards for improving performance and efficiency.

High Speed Storage with U.2 NVMe


Low Latency, Low Power

The U.2 SSD interface features high-speed, low-latency and low-power NVMe standard protocol. PUZZLE-IN005 support PCIe 4.0 channel which provides data transmission speed is up to 7000MB/s while PCIe 3.0 U.2 is 3200MB/s, and SATA is 500MB/s. It is 2 times faster than PCIe 3.0 U.2 and 10 times faster than SATA.

Empowered Hardware Architecture


Flexible, Reliable and Durable


PUZZLE-IN005

1

1200W Redundant Power Supply

  • Hot-swappable redundant power supply to ensure maximum system uptime.

2

20 x R-DIMM/LR-DIMM DDR4

3

4+1 Hot-swappable System Fan

4

Standard PCIe Slots

  • PUZZLE-IN005 support one PCIe Gen4 x8 FHHL PCIe card

5

2 x LGA4189 ICE Lake-SP CPU

6

2 x M.2 PCIe Gen3 x4

7

IEI PulM Network Module Slot

  • IEI PulM Network Module slot support 8 lanes of PCIe Gen4 signal form CPU. The PCIe lanes could be configured to one PCIe x8, two PCIe x4

  • Support smart NIC via PulM Network Module

8

Four 2.5” SSD/HDD Bays

  • Support U.2 nVMe & SATA

  • Support intel VROC

9

2 x Console

10

1 x MGMT port

1 x IPMI LAN

11

2 x USB 3.2 Gen1

Applications


  • SD-WAN

  • 5G MEC

  • 5G O-RAN

  • AI Solution

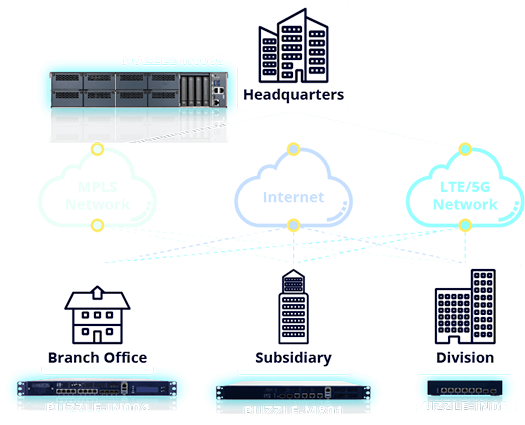

SD-WAN Solution

SD-WAN can reduce your WAN costs by up to 90 percent because it supplements or replaces dedicated private WAN networks, which usually are MPLS, with regular broadband connectivity. By using this, enterprises can get the flexibility and cost savings of SD-WAN and at the same time minimize the headache of managing the infrastructure and connectivity. Moreover, the traffic can be automatically and dynamically transferred based on network status, security, and service quality requirements.

Production-Line

5G MEC Solution

5G MEC is a network solution to providing IT service and telecommunication network at the edge. The PUZZLE-IN005 brings services closer to users, and provides ultra-low latency, high bandwidth, virtualization application and reliable network solution.

Production-Line

5G O-RAN Solution

An Open Radio Access Network (O-RAN) is a concept based on interoperability and standardization of RAN elements. Open RAN is a totally disaggregated approach to deploying mobile fronthaul and midhaul networks. It provides new avenues for RAN customization and flexibility by developing different parts of the network function virtualization.

Production-Line

AI Ready Solution

With high computing capability and bandwidth, the PUZZLE-IN005 is deal for networking, AI training and inference service. It is equipped with one PCIe x 8 slot to support various graphic cards, such as Intel® VPU acceleration cards, Google TPU cards and NVIDIA cards to offer faster and higher computing performance. Moreover, it is compliant with OpenNESS which can enable an easy-to-use software platform for edge computing and smoothly move applications from cloud to network or on-premise edge to bring your AI insights into business in AIoT markets.

Production-Line

Hardware Spec.

尺寸类型
尺寸类型 2U Rackmount
系统
CPU Intel® Ice-Lake LGA-4189 Xeon® Scalable Processor
芯片组 C627A
内存 20 x DDR4 3200MHz ECC R-DIMM / LR-DIMM
内存上限 1280GB (20 x 64GB)
散热方案/系统风扇 Active Fan
物理特性
Rack Height 2U
尺寸 (LxWxH) (mm) 450 x 650 x 88 mm
净重 23Kg
存储
存储 4 x 2.5” SSD/HDD Bay : Support nVMe (PCIe gen4 x4) & SATA 3.0 (6Gbps)
2 x M.2(NGFF) : Support nVMe (PCIe gen3 x4)
I/O 接口
显示输出 1 x VGA
网络 2 x LAN
I/O接口 1 x Internal USB 2.0
2 x Console port(s) : 1 x RJ45, 1 x USB typeC
2 x USB 3.0 : USB 3.1 Gen 1 (5Gb/s) Type-A ports
扩展 9 x PCIe x8 : 8 x PulM Slots, 1 x standard PCIe expansion
Other Features
IPMI 1 x AST 2400
TPM 1 x TPM 2.0 pin header
电源
电源供电 Redundant Power 1200W, 90V~264V AC
环境
操作温度 0°C ~ 40°C (32°F ~ 104°F)
存储温度 -20°C ~ 75°C (-4°F ~ 168°F)
Humidity Relative humidity: 5%~90% non-condensing
认证
Safety & EMC CE / FCC / RoHS
OS Support
OS Support Linux 18.04 (CentOS, Red Hat, Ubuntu, etc.)
Microsoft Windows server 2019

Ordering Information

PUZZLE-IN005-R-R10 2U Rackmount Network Appliance support dual Intel® ice-lake-SP CPU , twenty DDR4 R-DIMM/LR-DIMM slots, and 2 1GbE(one support BMC control) , eight PulM, one PCIe expansion, Redundant Power, without cooler, RoHS

Package Contents

Package Content
  • 2 x Power cord

  • 1 x USB to RJ45 console cable

  • 2 x Rack mounting ears

  • Screws for rack mounting ears

  • Flat head screws (for 2.5” HDD)
