FLEX-BX100-ULT5

第 8 代英特尔® Whiskey Lake-U PoE PD模式嵌入式系统

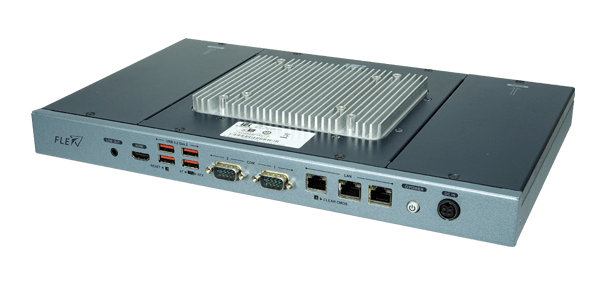

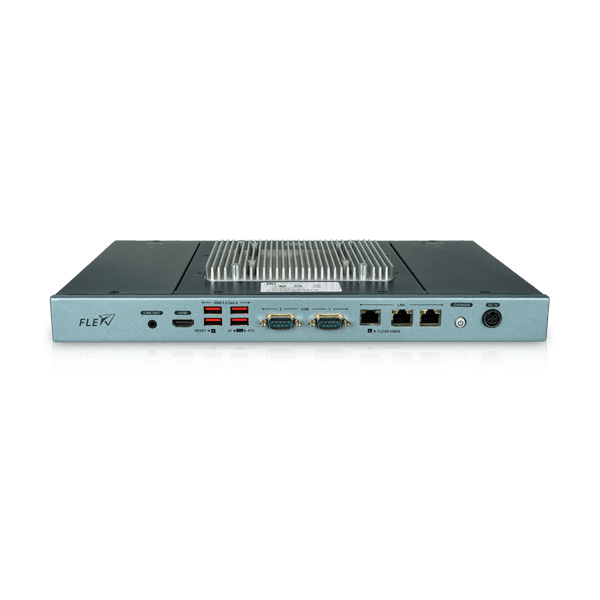

FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System with 8th gen Intel® Whiskey Lake-U processors
FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System with 8th gen Intel® Whiskey Lake-U processors
  • FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System with 8th gen Intel® Whiskey Lake-U processors
  • FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System with 8th gen Intel® Whiskey Lake-U processors
» 8th Gen Intel® Whiskey Lake-U processors
» Low power consumption and fanless design
» Support IEEE 802.3 bt PoE PD (By optional PoE BT module: GPOE-PD-BT01)
» Support NVMe SSD and USB 3.2 GEN2 (10Gbps)

第8代四核高性能处理器

iEi威强电的FLEX-BX100工业电脑采用性能超快的第 8 代英特尔®酷睿™ i5-8365UE 处理器、四个 USB 3.2 Gen 2 端口和超薄设计，可满足高速数据处理和传输的需求，也可适应各种环境，不受空间限制。

photo description

IEEE 802.3 bt 标准PoEPD模式工业电脑

LEX-BX-100 可选择配备符合 IEEE802.3af/at/bt 标准的 GPOE-PD-BT01-R10 卡，用于连接到 IEEE802.3bt 交换机以作为 PoE 受电设备 （PD） 运行。

photo description
photo description

IEEE802.3at 负载共享

无法将 PoE 交换机 [PSE] 升级到 IEEE802.3bt 标准的客户只需安装 IEI 的 GPOE-PD-AT01 模块即可升级 FLEX-BX-100 工业电脑，并通过两个 IEEE802.3at 标准 PSE 端口为设备供电。

photo description
photo description

静音无风扇系统设计

photo description
photo description

应用

3 个GbE 端口，打造联网式工业控制系统环境

photo description

适用于半户外环境

宽温(-20°C ~60°C)

photo description photo description

易于访问的 HDD 和 PoE PD 模块

photo description

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    8th Generation Intel® Core™ i5-8365UE
    8th Generation Intel® Celeron® 4305UE
  • Chipset: Intel® Whiskey Lake-U
  • System Memory:
    2 x 260-pin DDR4 SO-DIMM, one 4 GB pre-installed (system max: 32GB)
  • Power:
    Input - DC Jack: 12 V DC
    Consumption: 12 V@3.5 A (Intel® Core™ i5-8365UE with 4 GB memory)
    Power Device (PD): follows IEEE 802.3bt (71W)
I/O Interface
I/O Ports 1 x HDMI™
2 x PoE GbE LAN* (RJ-45)
1 x GbE LAN (RJ-45)
1 x RS-232/422/485 (DB-9, COM1)
1 x RS-232 (DB-9, COM2)
4 x USB 3.2 Gen 2 (10Gb/s) Type-A
1 x Line-out
Expansion Slots
Expansion Slots M.2 2230 A-Key(PCIe x1, USB 2.0; support Wi-Fi, BT)
M.2 2280 M-Key(PCIe x4; support NVMe SSD)
System
Cooling method / System Fan Fanless
Drive Bays 2.5” HDD/SSD SATA 3(6.0Gb/s) bay
Indicator&Buttons
Buttons 1 x Power button with LED indicator
1 x Reset button
1 x AT/ATX mode switch
1 x Clear CMOS button
Color
Color PANTONE 296 C
Dimensions
Dimensions 356.5x 222 x 44(mm)
Weight
Weight 2.8/5.5kg
Environment
Operating Temperature -10°C ~ 60°C (with air flow)
Humidity 10% ~ 95% (non-condensing)
Reliability Shock - 10G acceleration part to part (11ms)
Vibration 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak
Safety/EMC CE/FCC

Ordering Information

FLEX-BX100-ULT5-i5/4G-R10 Fanless embedded system with IntelR 14nm 8th Whiskey Lake Core- i5-8365UE (6M Cache, up to 4.10 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, R10
FLEX-BX100-ULT5-C/4G-R10 Fanless embedded system with IntelR 14nm 8th Whiskey Lake CeleronR 4305UE (2M Cache, 2.0 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, R10

Package Contents

Package Content

  • 1x FLEX-BX100-ULT5 PC

  • 1x Power adapter

  • 1x Power cord

  • 4x Screws (M3*4) for HDD installation
