» 1 x intel E810 Ethernet controller
» 2 ports 100GbE QSFP28 connector
» 1 x PCIe 4.0 x16
» RoHS/CE/FCC compliant
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Low-profile PCIe card |
| System | |
| CPU | Intel® Ethernet Controller E810 |
| Cooling method / System Fan | Active Fan |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 167.64 (L) x 64.41 (W) x 18 (H) |
| I/O Interface | |
| Ethernet | 2 x LAN: 2 x QSFP28 |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) |
| Humidity | 5% ~ 90% RH, Non-condensing |
| Certifications | |
| Safety & EMC | RoHS |
Ordering Information

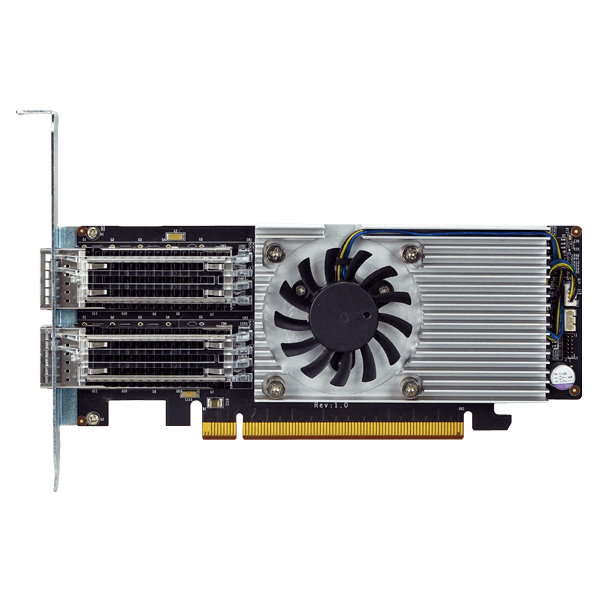

| LAN-100G2SF-E810-R10 | Intel® Ethernet Controller EZE810CAM2 based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x16 interface |
|---|
Package Contents
| Package Content |
|
|---|
