ICE-QM871

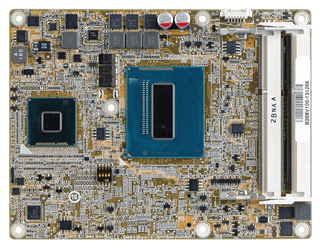

COM Express Basic Type 6 Module Supports Intel® 22nm 4th Generation Mobile Core™ Processor

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» 4th generation Intel® mobile Core™ i7/i5/i3 or Celeron® on-board processor
» Intel® HD Graphics technology integrates high-performance graphics and media processing
» Dual-channel 1600/1333 MHz DDR3 support up to 16 GB
» Support 1.5V/1.35V DDR3 SO-DIMM
» 18/24-bit dual-channel LVDS, analog CRT and three DDI supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support AMT 9.0

Hardware Spec.

BIOS
BIOS UEFI BIOS
Display
Display Output 3 x DDI: DisplayPort/HDMI™/DVI (up to 2560x1600@60 Hz) (to baseboard)
1 x VGA (up to 1920x1200@60 Hz) (to baseboard)
1 x Dual-channel 18/24-bit LVDS (up to 1920x1200@60 Hz) (to baseboard)
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -20°C ~ 60°C
I/O Interface
Ethernet LAN: Intel® I217LM Clarkville-V with Intel® AMT 9.0 support
Expansion 1 x PCIe x16 signal (to baseboard)
7 x PCIe x1 signal (to baseboard)
GPIO 8-bit GPIO
I/O Interface
I/O Interface 8 x USB 2.0
2 x RS-232
4 x SATA 6Gb/s
4 x USB 3.0
I²C
SMBus
Power
Power consumption +12V1@1.86A, +12V2@3.70A
(Intel® Core™ i7-4700EQ 2.4GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)
System
Chipset Intel® QM87
CPU Socket G2 for 2nd & 3rd Intel® mobile Core™ i7-4700EQ on-board processor with Intel® AMT 9.0 support
(2.4GHz, quad-core, 6MB cache, TDP=47W)
Intel® mobile Core™ i5-4402E on-board processor with Intel® AMT 9.0 support
(1.6GHz, dual-core, 3MB cache, TDP=25W)
Intel® mobile Core™ i3-4102E on-board processor (1.6GHz, dual-core, 3MB cache, TDP=25W)
Intel® mobile Celeron® 2002E on-board processor (1.5GHz, dual-core, 2MB cache, TDP=25W)
Intel® mobile Core™ i5-4400E on-board processor with Intel® AMT 9.0 support
(2.7GHz, dual-core, 3MB cache, TDP=37W) (by request)
Intel® mobile Core™ i3-4100E on-board processor
(2.4GHz, dual-core, 3MB cache, TDP=37W) (by request)
Intel® mobile Celeron® 2000E on-board processor
(2.2GHz, dual-core, 2MB cache, TDP=37W)(by request) generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor
Memory Max. Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 16 GB
Watchdog Timer
Watchdog Timer Software programmable, support 1~255 sec. system reset

Ordering Information

ICE-QM871-i7-R10 COM Express Basic Type 6 module supports Intel® 22nm 4th Generation Mobile Core™ i7-4700EQ processor(45W),VGA,LVDS,DDI,GbE,PCIE Gen3,SATAIII,USB 3.0 and HD Audio,RoHS
ICE-QM871-CE-R10 COM Express Basic Type 6 module supports Intel® 22nm 4th Generation Celeron Mobile 2002E processor(25W),VGA,LVDS,DDI,GbE,PCIE Gen3,SATAIII,USB 3.0 and HD Audio,RoHS
ICE-QM871-i3E-R10 COM Express Basic Type 6 module supports Intel® 22nm 4th Generation Mobile Core™ i3-4102E processor(25W),VGA,LVDS,DDI,GbE,PCIE Gen3,SATAIII,USB 3.0 and HD Audio,RoHS
ICE-QM871-i5E-R10 COM Express Basic Type 6 module supports Intel® 22nm 4th Generation Mobile Core™ i5-4402E processor(25W),VGA,LVDS,DDI,GbE,PCIE Gen3,SATAIII,USB 3.0 and HD Audio,RoHS
