End of Life Notice
* Effective Date: 2018/04/17

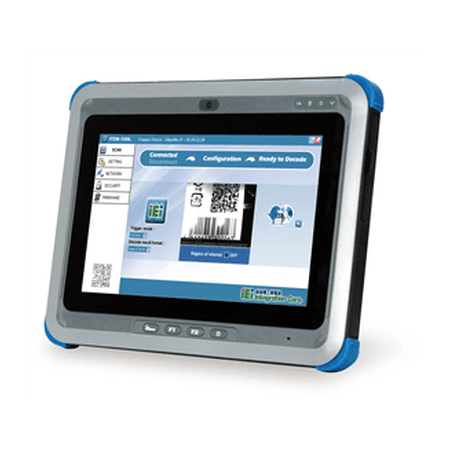

» 10.1” 350 cd/m² TFT LCD with capacitive touch
» Intel® Celeron® 1007U or Intel® Core™ i7-3517UE platform
» Powered by Windows® Embedded Standard 7 P
» Bluetooth, Wi-Fi, 3.75G wireless with GPS
» 1D/2D barcode reader, 13.56MHz RFID reader
» 1.3-megapixel CMOS front camera and 5-megapixel CMOS rear camera
» Built-in hot-swappable battery
» Optional Windows 8 operating system
Hardware Spec.
| Communication | |
|---|---|
| Bluetooth | Bluetooth V3.0 |
| GPS | GPS with internal antenna |
| modem | UMTS/HSUPA Band 1, 2, 4, 5, 6, 8 |
| Wi-Fi | Wi-Fi 802.11b/g/n |
| Data Collection | |
| Barcode | 1D/2D imager scan engine |
| Camera |
1.3-megapixel front camera 5-megapixel rear camera |
| Light Sensor | N/A |
| RFID |
13.56MHz RFID supports ISO 14443A/B (MIFARE®, FeliCa™) |
| Dimensions | |
| Dimensions | 297 x 234 x 32 |
| Display | |
| Brightness(cd/m2) | 350 cd/m² |
| Digitizer | N/A |
| LCD Size | 10.1” TFT LCD |
| Max Resolution | 1280 x 800 pixels |
| Touch Screen | Projected capacitive type |
| Viewing Angle | 85/85/85/85 Deg. |
| Environment | |
| Drop Survival | 1.2 m |
| Environmental Protection |
Front panel: IP65 Back side: IP64 |
| Humidity | 5%~95% non-condensing |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| I/O Interface | |
| Audio |
1 x Headphone 1 x Mic-in 2 x 1 W speakers |
| Expansion |
3 x USB 3.0 1 x SIM card slot 1 x Micro HDMI™ 1 x Micro HDMI™ |
| Micro HDMI™ | Micro HDMI™ x1 |
| USB |
3 x USB 3.0 1 x SIM card slot |
| Indicator&Buttons | |
| Hot Keys |
1 x Power button 2 x Hot keys 1 x iMenu |
| LED Indicator | Battery charging/peripheral device/storage/wireless device |
| Power | |
| Battery |
40 W standard battery pack 40 W optional battery pack |
| Power adapter |
Input AC: 100~240V Output DC: 19V / 3A |
| System | |
| Chipset | Intel® HM76 |
| CPU | Intel® Celeron™ 1007U / i7-3517UE |
| Memory Max. | 4.0 GB DDR3 SDRAM on board and optional 4.0 GB DDR3 SDRAM SO-DIMM |
| Operating System | Microsoft® Windows® Embedded Standard 7 P |
| Storage | 32GB MLC mSATA |
| Weight | |
| Weight | 1.9 kg |
Ordering Information
| ICEROCK3-T10-HU-R10 | Intel Celeron 1007U CPU, Capacitive touch, IPS panel, 8GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, 1.3M/5M camera, 2nd battery, GPS, barcode, 3.75G, WS7P, RoHs |
|---|---|
| CEROCK3-T10-ETC-R10 | |
| ICEROCK3-T10-HUI-R10 | Intel I7-3517 CPU, Capacitive touch, IPS panel, 8GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, 1.3M/5M camera, 2nd battery, GPS, barcode, 3.75G, WS7P, RoHs |
