End of Life Notice
* Effective Date: 2024/09/03

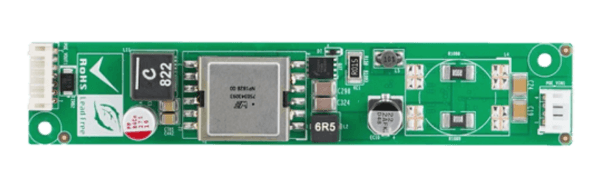

IEEE802.3bt POE PD Module
75 Watt Output Power
12V DC output via 7pin header
Input voltage range 36V to 57V via 4pin header
Hardware Spec.
| Input | |
|---|---|
| Voltage | 36V to 57V DC |
| Output | |
| Voltage | 12V DC |
| Dimensions | |
| Dimensions | 131.7mm X 25.02mm |
| Key Features | |
| Key Features |
IEEE802.3bt POE PD Module 75 Watt Output Power 12V DC output via 7pin header Input voltage range 36V to 57V via 4pin header |
Ordering Information
| AFL3-PD-BT01-KIT01-R10 | PoE PD IEEE802.3 af/at/bt module kit , only for AFL3-xxx-AL optional (W10A/12A/W15A) , R10 |
|---|
