ARM-31

VESA 75/100 LCD Arm, weight capacity from 7kgs to 14kgs

End of Life

End of Life Notice

* Effective Date: 2022/05/31

» Adjusts the scree nto the most comfortable viewing angle.
» Holds the screen in any position without the need of knobs or levers.
» Provides counter clockwise and clockwise rotation of the arm
» Cable location helps to organize the cables in order.
» Adjusting knob offers the different weitht needs.

Hardware Spec.

Dimensions
Dimensions 480 X 130 X 130 (LxWxH) (mm)
Material
Material Steel
Key Features
Key Features Weight Capacity: 7~14 kg (15.4~30.8 lbs)

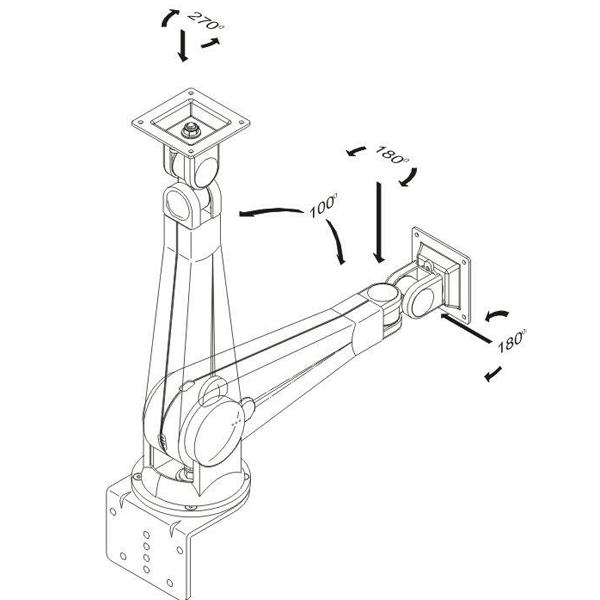

Tilt: 180° up and down (display) & 100° up and down (arm)
Rotation: 270° for portrait or landscape viewing
Pivot: 180° / 180° (wall / display)
Display Compatibility: VESA 75/100mm

Ordering Information

ARM-31-RS Flat Panel Monitor ARM Loading capacity from 7Kg~14Kg for various demands,RoHS
