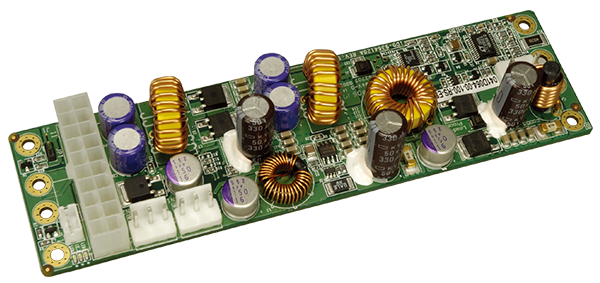

IDD-9364120A

120 W DC/DC Converter Module

End of Life

End of Life Notice

* Effective Date: 2021/12/16

» Wide input range: 9-36 VDC
» AT or ATX mode on/off
» Output voltage protection
» Up to 90% efficiency
» RoHS compliant
» Compact size

Hardware Spec.

General
Dimensions 45 x 160
Efficiency 90%
Operating temperature -20ºC ~ 70ºC
Storage temperature -25ºC ~ 75ºC
Watt 120W
Input
Voltage 9 VDC to 36 VDC
Output
Voltage 12 V@4 A, 5 V@10 A, 3.3 V@8 A,
-12 V@0.3 A & 5VSB@2 A

Ordering Information

IDD-9364120A-R11 120W DC/DC 9~36V input 12V/5V/3.3V/-12V/5VSB output,RoHS
