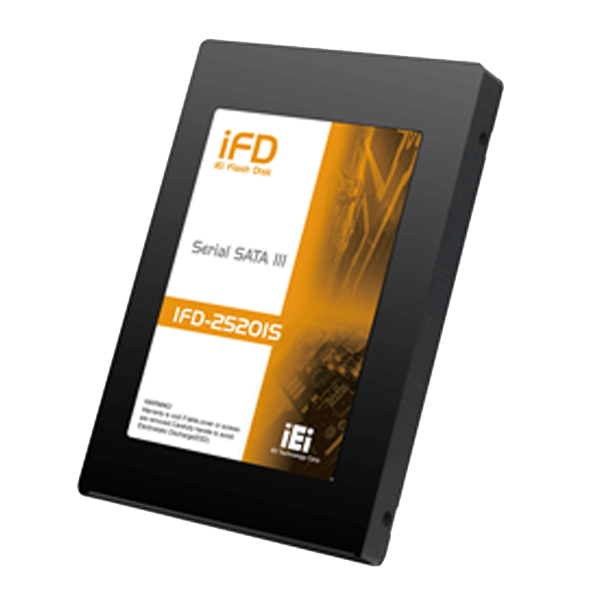

IFD-2520IS

Solid-State Drive-2.5” SATA 6Gb/s SLC

End of Life

End of Life Notice

* Effective Date: 2024/09/03

Solid-State Drive-2.5” SATA 6Gb/s SLC

Specifications

Hardware Spec.

ATA Security
ATA Security Yes
Capacity (GB)
Capacity (GB) 8GB~128GB
Dimensions
Dimensions 69.8 x 100.1 x 9.3
Flash Type
Flash Type SLC
Interface
Interface SATA 6Gb/s
Key Features
Key Features 1. Intelligent error recovery system
2. Excellent data transfer speed
3. Enhanced power cycling management
Max. Power Consumpation
ConsumpationMax. Power Consumpation 2.2W (5V x 450mA)
P/N
STD(0°C~+70°C) IFD-2520IS-8GB
IFD-2520IS-16GB
IFD-2520IS-32GB
IFD-2520IS-64GB
IFD-2520IS-128GB
WT(-40°C~+85°C) IFD-2520WT-8GB
IFD-2520WT-16GB
IFD-2520WT-32GB
IFD-2520WT-64GB
IFD-2520WT-128GB
S.M.A.R.T
S.M.A.R.T Yes
Sequential R/W
Sequential R/W 510/340
Thermal Sensor
Thermal Sensor Wide temperature model only

Ordering Information

IFD-2520WT-8GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, -40℃~85℃, R:510MB/s W:340MB/s, 8GB
IFD-2520WT-64GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, -40℃~85℃, R:510MB/s W:340MB/s, 64GB
IFD-2520WT-32GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, -40℃~85℃, R:510MB/s W:340MB/s, 32GB
IFD-2520WT-16GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, -40℃~85℃, R:510MB/s W:340MB/s, 16GB
IFD-2520WT-128GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, -40℃~85℃, R:510MB/s W:340MB/s, 128GB
IFD-2520IS-8GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, 0℃~70℃, R:510MB/s W:340MB/s, 8GB
IFD-2520IS-64GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, 0℃~70℃, R:510MB/s W:340MB/s, 64GB
IFD-2520IS-32GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, 0℃~70℃, R:510MB/s W:340MB/s, 32GB
IFD-2520IS-16GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, 0℃~70℃, R:510MB/s W:340MB/s, 16GB
IFD-2520IS-128GB Flash Disk; 2.5'' SSD SATAIII Interface, SLC, 0℃~70℃, R:510MB/s W:340MB/s, 128GB

Download Specs.
