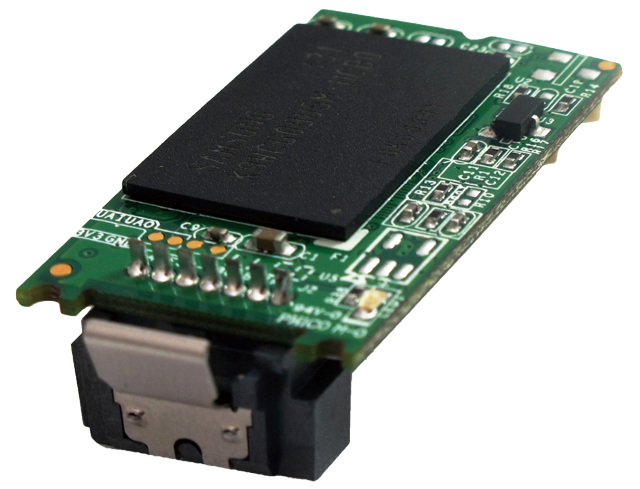

IFM-3010H

Industrial Flash Module Series(SATADOM)SLC

End of Life

End of Life Notice

* Effective Date: 2024/09/03

Industrial Flash Module Series(SATADOM)SLC

Specifications

Hardware Spec.

ATA Security
ATA Security Yes
Capacity (GB)
Capacity (GB) 1GB~32GB
Dimensions
Dimensions 18.1 x 30.5 x 12
Flash Type
Flash Type SLC
Interface
Interface SATA 6Gb/s
Key Features
Key Features 1. Horizontal version
2. Only exposes 12mm height
on the motherboard after
installation
Max. Power Consumpation
ConsumpationMax. Power Consumpation 0.65W (5V x 130mA)
P/N
STD(0°C~+70°C) IFM-3010IPS-1GB
IFM-3010IPS-2GB
IFM-3010IPS-4GB
IFM-3010IPS-8GB
IFM-3010IPS-16GB
IFM-3010IPS-32GB
WT(-40°C~+85°C) IFM-3010WPS-1GB
IFM-3010WPS-2GB
IFM-3010WPS-4GB
IFM-3010WPS-8GB
IFM-3010WPS-16GB
IFM-3010WPS-32GB
S.M.A.R.T
S.M.A.R.T Yes
Sequential R/W
Sequential R/W 300/130
Thermal Sensor
Thermal Sensor Wide temperature model only

Ordering Information

IFM-3010WPS-8GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:250MB/s W:60MB/s, 8GB
IFM-3010WPS-4GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:220MB/s W:50MB/s, 4GB
IFM-3010WPS-32GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 32GB
IFM-3010WPS-2GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:24MB/s W:18MB/s, 2GB
IFM-3010WPS-1GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:23MB/s W:9MB/s, 1GB
IFM-3010WPS-16GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:290MB/s W:120MB/s, 16GB
IFM-3010IPS-8GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:250MB/s W:60MB/s, 8GB
IFM-3010IPS-4GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:220MB/s W:50MB/s, 4GB
IFM-3010IPS-32GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 32GB
IFM-3010IPS-2GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:24MB/s W:18MB/s, 2GB
IFM-3010IPS-1GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:23MB/s W:9MB/s, 1GB
IFM-3010IPS-16GB Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:290MB/s W:120MB/s, 16GB
