End of Life Notice
* Effective Date: 2023/10/17

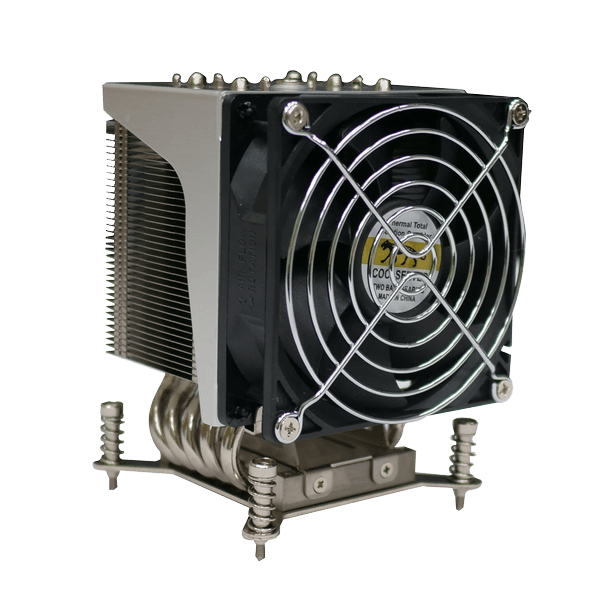

High performance thermal solutions
Hardware Spec.
| CPU Solution | |
|---|---|
| CPU Solution | Intel® Core™ i9/ i7/ i5/ i3 |
| Socket Solution | |
| Socket Solution | LGA1700 |
| Dimensions | |
| Dimensions | 75 x 92.5 x 125.8 mm |
| Material | |
| Material | Cu-Al |
| Bearing Type | |
| Bearing Type | Two-Ball |
| Capability (Watt) | |
| Capability (Watt) | 125W |
| Fan Speed (RPM) | |
| Fan Speed (RPM) | 3800 |
| Noise Level (dBA) | |
| Noise Level (dBA) | 44 |
| Life Expectancy (hrs) | |
| Life Expectancy (hrs) | 70000 |
| Weight | |
| Weight | 657g |
| Key Features | |
| Key Features | LGA1700 CPU cooler, RoHS |
Ordering Information
| 19100-000328-00-RS | B646;COOLER MODULE/Heat Pipe;HEATSINK:75*92.5*125.8mm,FAN:92*92*25mm;LGA1700,125W;STANDARD;00;1700-R19,For Intel LGA 1700;CU BASE+AL FIN+PIPE*5+M3 SCREW*4+GREASE;DC FAN:12V,3800RPM,2510-4P,L=250mm;BeCool;AD9225B12M-P18;CCL;RoHS |
|---|
