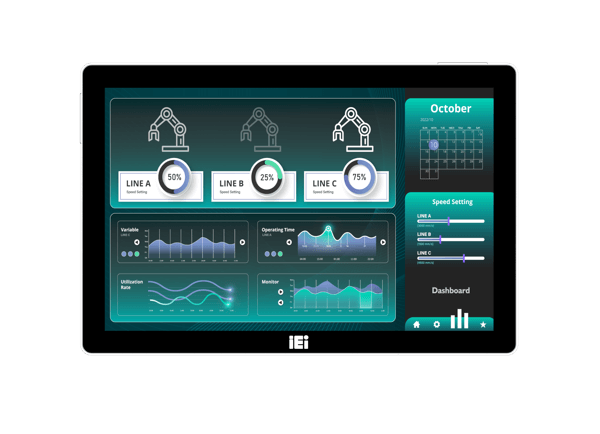

12.1寸无风扇平板电脑,搭载英特尔® Alder Lake-P处理器

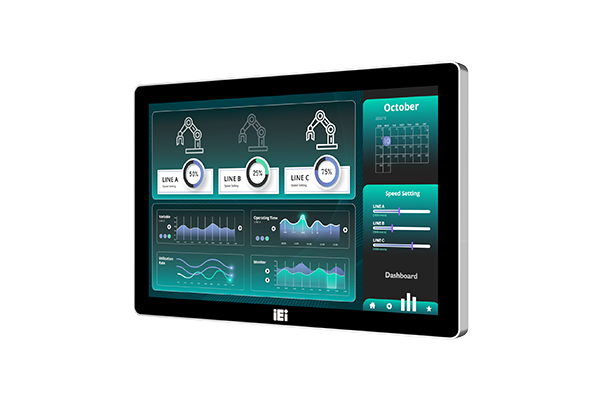

AFL4-W12-ADL Right Side

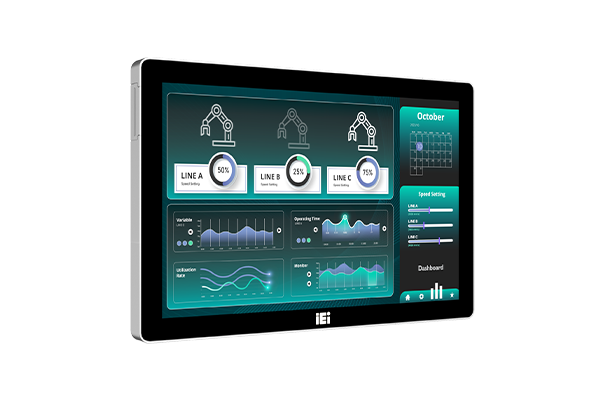

AFL4-W12-ADL Left Side
  • AFL4-W12-ADL Right Side
  • AFL4-W12-ADL Left Side

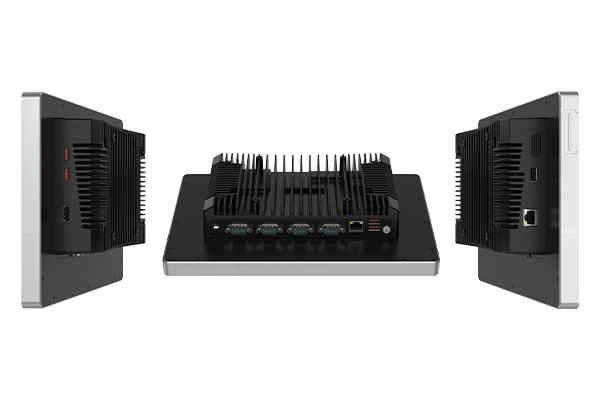

  • AFL4-W12-ADL IO
» 英特尔® Alder Lake-P 平台
» 全新的窄边框设计
» 具备防眩光和防紫外的电容触控屏
» 支持手套和湿水下进行操作
» 支持WiFi 6E 和蓝牙 5.2

The AFL4-ADLP is a fanless and stylish panel PC from IEI's AFOLUX series, which offers affordable luxury solutions for light industrial markets. It runs on a 12th Gen Intel® Core™ processor and 8GB LPDDR4x soldered memory, providing excellent performance and reliability. It features an optimized PCAP touchscreen, a rich I/O port selection, and the latest wireless communication technology – Wi-Fi 6E and Bluetooth 5.2, making it ideal for applications that need high-speed connectivity and large embedded RAM. The AFL4-ADLP is suitable for various fields such as factory automation, retail, digital signage, transportation and surveillance.


Front Panel IP64

10-point AG PCAP Touch with Anti-UV

Narrow Bezel

2.5 GbE LAN

WiFi 6E & Bluetooth 5.2



Superior Performance by the Power of 12th Gen Intel Core Processor

With the 12th Gen Intel® Core™ i7/i5/i3 processor (code name: Alder Lake-P) integrated, the AFL4-ADLP series delivers unparalleled edge computing performance and real-time IoT workload consolidation and AI inferencing. The powerful processor boasts an impressive maximum of 12 cores, ensuring exceptional multitasking capabilities and delivering lightning-fast performance with a burst frequency of 4.7GHz. The AFL4-ADLP series also features the Intel® Iris® Xe graphics with up to 96 graphics execution units (EUs), which boosts graphics performance and enables the panel PC to display high-quality visuals and better support imaging applications.

Powerful Graphics and Computing Performance for Diverse Applications

PCAP Touch Screen with High Sensitivity, Visibility and Durability

With glass-glass PCAP touch technology and industrial-grade controllers, IEI's rugged touchscreen offers high sensitivity, visibility and durability for industrial applications. IEI AFOLUX panel PCs with this rugged touchscreen can work with gloves in harsh environments, such as food processing, chemical and beverage industries.

High Sensitivity

The 10-point touch enables the screen to detect and respond to multiple and complex touch inputs, even when the user is wearing gloves or has wet hands.

Touchscreen firmware may need changes for thick gloves. Gloves may limit touch number. Ex. 2 touches instead of 10 when using gloves.

High Visibility

Our PCAP touchscreen has an anti-glare and anti-UV coating that prevents reflection and scratches, making it suitable for outdoor and bright light environments. It also has a high transmission rate of 87%, which ensures clear and bright images and text.

High Durability

The 7H scratch-resistant and UV-resistance strong glass protect the screen from physical and environmental damage.

  • Blocks UV wavelengths less than ≈340nm
  • Meets ASTM G154 performance criteria Cycle 1

A Touch of Elegance and a Dash of Durability

The AFL4-ADLP panel PC is designed to be both aesthetically pleasing and highly durable. Its sleek aluminum housing and narrow bezel surrounding the true-flat screen give it a modern and stylish appearance. Furthermore, its IP64 compliant front panel ensures that it is dust-tight and resistant to water splashing, making it suitable for use in harsh and challenging environments such as factories, warehouses, workshops, and outdoor settings. With its strong build quality, this panel PC is capable of withstanding tough conditions, thereby enhancing industrial productivity and efficiency.

Durable Aluminum Die Casting Housing

The AFL4-ADLP panel PC stands out with its robust aluminum die casting housing, providing exceptional durability, corrosion resistance, and superior thermal conductivity. This makes it an ideal choice for industrial use, surpassing the limitations of plastic enclosures. The panel PC is also environmentally friendly as it is crafted from recyclable and reusable aluminum.

{{ icon.title }}

Connect Fast NVMe SSDs with Dual M.2 PCIe Gen4 Slots

The AFL4-ADLP panel PC features two M.2 M-key slots, offering versatile connectivity options for various devices such as NVMe SSDs, I/O expansion cards, and peripherals, ensuring efficient usage of space and power. These M.2 M-key slots support PCIe Gen4, a cutting-edge interface that provides double the bandwidth and data transfer capabilities compared to PCIe Gen3. With PCIe x4 bus connections, the AFL4-ADLP can achieve a maximum theoretical bandwidth of 64 Gbps. This advanced technology allows for high-performance expansion options, enhancing the overall functionality and productivity of the panel PC.

Expand the Screen with 4K HDMI™

Connect a second display and stream 4K videos smoothly with the panel PC powered by Intel® Iris® Xe graphics. The AFL4-ADLP has 96 EUs and hard decoding capability, which enables high-quality and uninterrupted videos on the screen. The HDMI™ port on the side panel is easily accessible and connectable, which facilitates switching between different tasks or sharing the screen with others.

IoT Deployment Made Easy with Wireless Network Capability

The AFL4-ADLP industrial panel PC is equipped with cutting-edge wireless network capability, featuring the advanced Wi-Fi 6E and Bluetooth 5.2 technologies, allowing for seamless and fast data transmission through its internal 2T2R antennas, thereby ensuring reliable performance even in high-volume applications while eliminating any interference from cables.

2.5GbE High-Bandwidth Low-Latency Data Transmission

The panel PC offers 2.5GbE connectivity, making it ideal for large-scale workloads that require high bandwidth. This feature is particularly beneficial for implementing IoT solutions such as smart surveillance and home automation systems, where fast and reliable communication is crucial. By leveraging this technology, businesses can achieve lightning-fast transmission speeds and ensure efficient automation processes.

Touch-enabled BIOS

IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.

Shortcut to boot device setup

The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.

Easy-access function keys

The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.

On-screen keyboard

An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.

Customize Your Installation with Various Mounting Options

The AFL4-ADL series features a 75x75 or 100x100 VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs.

I/O Interfaces

  • {{ title }}


Optional Mounting Kits

Hardware Spec.

CPU 十二代 Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P)
内存 板载双通道8GB LPDDR4x
无线 IEEE 802.11ax 2T2R module (Wi-Fi 6E)
with BT v5.0 (M.2 2230 A-key)
I/O Interface
网络 一个2.5GbE网口通过Intel® I225V 驱动
一个2.5GbE网口通过Intel® I225V-LM 驱动
Audio AMP1.2W(内置扬声器)
扩展 1 x M.2 M key 2242 (PCIE Gen4 x 4)
1 x M.2 M key 2280 (PCIE Gen4 x 4)
音频编解码器 瑞昱ALC888S
电源输入 12V 直流
工作温度 -10°C ~ 50°C
安规&电磁 CE/EMC, FCC, RED (Class A)
相对湿度 10% ~ 95%(无冷凝)
存储温度 20°C ~ 60°C
IP Level 前面板符合 IP 65 标准
Physical Characteristics
机身颜色 银色+黑色
安装方式 Wall, Rack, Stand, ARM, VESA100
LCD 尺寸 12.1”
分辨率 1280 x 800 (16:10)
亮度 450(cd/m²)
对比度 1200:1
可视角度 (H-V) 170°/170°
背光 MTBF 50000小时
触摸屏 多点电容式触控屏(抗紫外/防眩光,支持手套)
触控IC EETI EXC 81 系列
I/O Interface
I/O 接口 2 x RS-232 (by DB9)
2 x RS-232/422/485 (by DB9)
1 x HDMI™ (高达 3840*2160 @30Hz)
2 x LAN (英特尔® I225V 2.5GbE 控制IC)
1 x DC Input Jack
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
2 x USB 3.2 Gen1x1
1 x USB2.0
2 x USB 3.2 Gen2
OS Support
OS Support Windows 10 IoT

Ordering Information

AFL4-W121-ADLP-i7/8G-R10 12.1" 450cd/m² 1280x800 fanless panel PC with Intel® Core™ i7-1260P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10
AFL4-W121-ADLP-i5/8G-R10 12.1" 450cd/m² 1280x800 fanless panel PC with Intel® Core™ i5-1240P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10
AFL4-W121-ADLP-i3/8G-R10 12.1" 450cd/m² 1280x800 fanless panel PC with Intel® Core™ i3-1220P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10

Package Contents

Package Content
  • 1 x AFL4-W121-ADL-P

  • 1 x 电源线

  • 1 x 电源适配器

  • 1 x 使用指南
