» 第十二代英特尔 Intel® Core™ Mobile i7/i5/i3 处理器
» 具备防眩光和防紫外的电容触控屏
» 双M.2 ( M.2 M Key) 支持
» 全新设计的手拧面板安装套件
» 支持手套和湿水下进行操作
Hardware Spec.
| System | |
|---|---|
| CPU | 12th Genertion Intel® Alder Lake-P Core™ i7/i5/i3 Processor |
| Memory Ext. | 板载双通道 8G LPDDR4x |
| I/O Interface | |
| 网络 |
一个2.5GbE网口通过Intel® I225V/I226V 驱动 一个2.5GbE网口通过Intel® I225-LM/I226-LM 驱动 (Intel AMT) |
| 扩展 |
1 x M.2 M key 2242 (PCIe Gen4 x4) 1 x M.2 M key 2280 (PCIe Gen4 x4) 1 x M.2 E key 2230 (PCIe + USB signal) |
| Power | |
| 电源输入 | 12V 直流 |
| Power adapter | 84W 电源适配器 |
| Environment | |
| 工作温度 | -10º°C ~ 50°C |
| 安规&电磁 | CE/EMC, FCC, UKCA |
| 相对湿度 | 10% ~ 95%@40°C, 无冷凝 |
| 存储温度 | -20°C ~ 70°C |
| IP Level | 前面板符合 IP 65 |
| Physical Characteristics | |
| 机身颜色 | 黑色 |
| 安装方式 | VESA 100, Panel, Wall, Rack, Stand and Arm |
| Construction | 铝压铸件 + SECC |
| LCD | |
| LCD 尺寸 | 17” (5:4) |
| 分辨率 | 1280 (W) x 1024 (H) |
| 亮度 | 350 cd/m² |
| 对比度 | 800:1 |
| LCD 色彩 | 16.7M |
| 像素间距 (mm) | 0.26 x 0.26 |
| 可视角度 (H-V) | 170°/160° |
| 背光 MTBF | 50,000 hours |
| Touch | |
| 触摸屏 | 带USB接口的电容触控屏（抗紫外/防眩光） |
| 触控IC | EETI EXC 81 系列 |
| Other Features | |
| System Cooling | 无风扇 |
| TPM | 英特尔® 平台信任技术 |

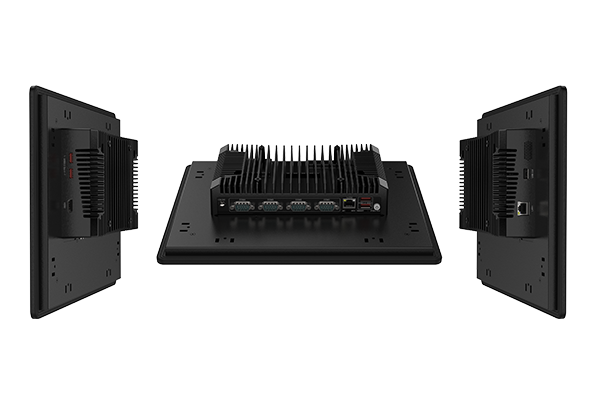

| I/O Interface | |
| I/O 接口 | 2 x RS-232 (by DB9) |
| 2 x RS-232/422/485 (by DB9) | |
| 1 x USB 2.0 | |
| 2 x USB 3.2 Gen1x1 | |
| 1 x HDMI™ | |
| 2 x LAN (2.5GbE) | |
| 1 x DC Input Jack (12V) | |
| 1 x Reset Button | |
| 1 x AT/ATX switch | |
| 2 x USB 3.2 Gen2 | |
| OS Support | |
| OS Support | Windows 10/11 IoT, Linux |
Ordering Information

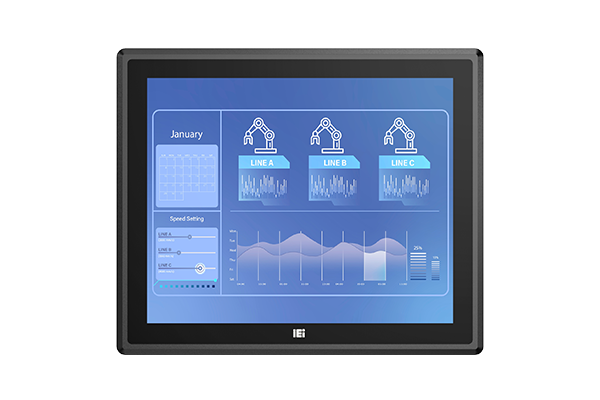

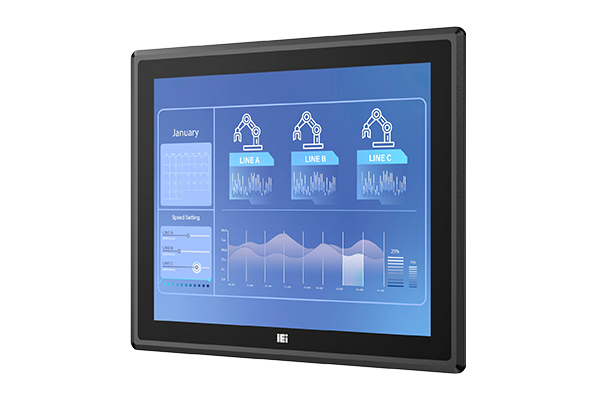

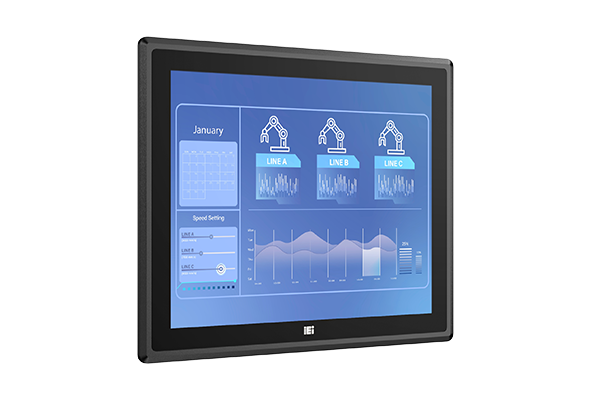

| PPC2-C170-ADLP-i7/8G-R10 | 17" 350cd/m² 1280x1024 Fanless Panel PC with 12th Generation Intel® Core™ i7-1260P on-board Processor,TDP 28W,8GB LPDDR4x on-board, PCAP touch,12V DC,R10 |
|---|---|
| PPC2-C170-ADLP-i5/8G-R10 | 17" 350cd/m² 1280x1024 Fanless Panel PC with 12th Generation Intel® Core™ i5-1240P on-board Processor,TDP 28W,8GB LPDDR4x on-board, PCAP touch,12V DC,R10 |
| PPC2-C170-ADLP-i3/8G-R10 | 17" 350cd/m² 1280x1024 Fanless Panel PC with 12th Generation Intel® Core™ i3-1220P on-board Processor,TDP 28W,8GB LPDDR4x on-board, PCAP touch,12V DC,R10 |
Package Contents
| Package Content |
|
|---|
