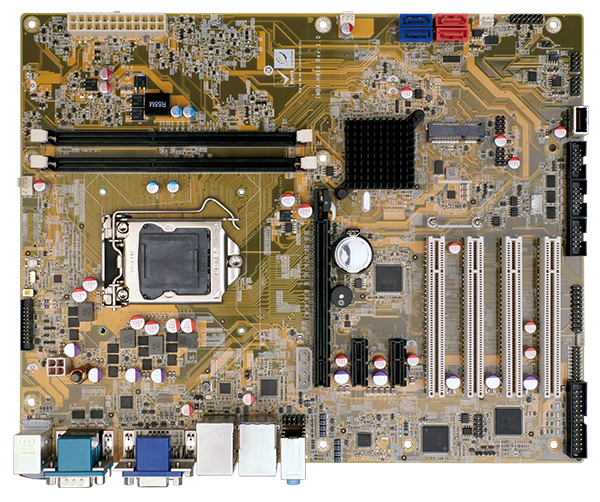

IMBA-H810

ATX motherboard supports 22nm LGA 1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81

» 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Dual-channel DDR3 1333/1600 MHz support up to 16 GB
» Intel® HD Graphics technology integrates high-performance graphics and media processing
» USB 3.0, and SATA supported
» TPM V1.2 hardware security function supported by TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor supported
Chipset Intel® H81
Memory Two 240-pin 1600/1333 MHz dual-channel DDR3 SDRAM ECC and non-ECC unbuffered DIMMs
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 244 X 305
Net Weight 700g
Storage
Storage 4 x SATA :2 X 6Gb/s (SATA1, SATA2) (AHCI supported, no RAID) (Blue)
2 X 3Gb/s (SATA3, SATA4) (Red)
1 x mSATA :share with SATA4
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x DVI-D :up to 2560x1600@60Hz
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I217-LM with Intel® AMT9.0 support
LAN2: Intel® I211-AT PCIe Controller
Audio Description: Realtek ALC662 HD codec supports 5.1-channel
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 2 x External RS-232
1 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
5 x Internal USB 2.0 :1 X A type, 4 X 2x4 pin, p=2.54
2 x PS/2 :1 X 1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
1 x LPT :2x13 pin
Expansion 1 x PCIe x16
2 x PCIe x1
4 x PCI Slot
1 x PCIe mini Card Slot :Full-ize slot(support mSATA)
Other Features
TPM 2x10 pin
Power
Power Consumption 3.3V@0.83A, 5V@2.2A, 12V@3.88A, 5VSB@0.3A
(Intel® Core™ i7-4770K 3.90GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)
Power Supply Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-H810-R10 ATX motherboard supports 22nm LGA 1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® and Celeron® H81, DDR3, VGA/DVI-D/iDP, Dual Intel ® PCIe GbE , USB3.0, SATA 6Gb/s, HD Audio and RoHS
IMBA-H810-ECO-R10 LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81, DDR3, VGA/DVI-D/ iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS

Package Contents

Package Content
  • 1 x IMBA-H810 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
