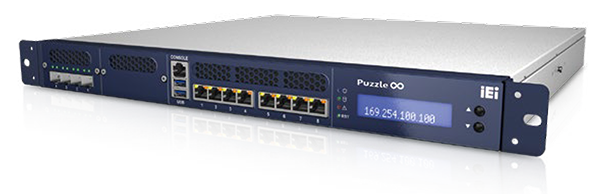

| PUZZLE-IN001A |
|
✔
|
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor
|
|
✔
|
Support 8 x 5GbE RJ-45 via AQC111C
|
|
✔
|
4 x 288-pin Long DIMM, DDR4 2100MHz ECC & non ECC, up to 64GB
|
|
✔
|
1 x RJ-45 Console, 2 x USB 3.2 Gen 1 (5Gb/s), LCM
|
|
✔
|
2 x 2.5” SATA drive bay, 1 x M.2 B-Key (SATA, USB 3.2 Gen 1 (5Gb/s)), 1 x PCIe mini
|
|
✔
|
Support PCIe x4, PCIe x8 slot and two PulM module slots
|
|
✔
|
Redundant PSUs
|
| |
|
|
|
|
| |
| Model Name |
PUZZLE-IN001A-XE |
PUZZLE-IN001A-i3T |
| Platform |
Form Factor |
1U |
| CPU |
Intel® Xeon® E-2136 Processor, 6C/12T, up to 4.50 GHz |
8th Generation Intel® Core™ i3-8100T Processor, 4C/4T, up to 3.10 GHz |
| Chipset |
Intel® C246 |
| Memory |
Memory Technology |
4 x DDR4 2400MHz ECC/Non-ECC UDIMM |
| Memory Capacity |
Up to 64GB |
| Memory Socket |
4 x 288-pin DIMM |
| Network and Security |
Network Acceleration and Security Function |
Intel® AES New Instructions
Intel® Software Guard Extensions (Intel® SGX)
Intel® Memory Protection Extensions (Intel® MPX)
Intel® Trusted Execution Technology |
| TPM |
1 x TPM 2.0 Pin header |
| Networking |
Ethernet IC |
8 x 5GbE NIC: AQC111C |
| Ethernet Port |
8 x 5 GbE RJ-45 LAN ports |
| Network Module Slot |
2 x PulM module slots |
| Expansion slot |
PCIe slot |
1 x PCIe x4 slot, 1 x PCIe x8 slot |
| PCIe mini Card Slot |
1 x PCIe mini card (PCIe & SATA, USB 2.0) |
| M.2 |
1 x M.2 B Key (2260/2280) (SATA and USB 3.2 Gen 1)
Support SATA SSD and 4G LTE module |
| Storage |
Storage |
2 x 2.5" SATA HDD/SSD bay |
| eMMC |
N/A |
| SD Card |
N/A |
| External I/O |
USB |
2 x USB 3.2 Gen 1 (5Gb/s) |
| Console |
1 x RJ-45 |
| Internal I/O |
HDMI™ |
1 x HDMI™ connecter (optional) |
| USB |
4 x USB 2.0 (pin header) |
| Power and Mechanical |
Power Switch |
1 x Power Switch |
| Reset Button |
1 x Reset Button |
| Power Input |
100 V ~ 240 V |
| Type/Watt |
Redundant Power 300W |
| 90V ~ 264V AC |
| Processor Cooling |
1 x Passive CPU Heatsink |
| System Cooling |
4 x Cooling Fans with Smart Fan |
| Antenna Port |
1 x Antenna port |
| Physical and Environmental |
Storage Temperature |
0 ~ 40°C |
| Operating Temperature |
0 ~ 40°C (32 ~ 104°F) |
| Operating Humidity |
5% ~ 90% non-condensing |
| Dimensions (W x H x D) (mm) |
430 x 426 x 44.2 |
| Weight |
7kg |
| OS and Certifications |
Certification |
CE / FCC |
| Operating System |
Linux Ubuntu 16.04.04 |
| Indicators |
LCM |
LCM, 2 buttons |
| LED |
1 x Power LED, 1 x Storage LED, 1 x Alert LED |
|
|
|
| Part No. |
Description |
| PUZZLE-IN001A-XE/R-R10 |
1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, four DDR4 slots, and eight 5GbE, two PulM module slots, two PCIe expansion, Redundant Power, RoHS |
| PUZZLE-IN001A-i3T/R-R10 |
1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, four DDR4 slots, and eight 5GbE, two PulM module slots, two PCIe expansion, Redundant Power, RoHS |
|
|
|
| |
PUZZLE-IN001A-XE/16G/R |
PUZZLE-IN001A-i3T/16G/R |
| Power cord |
1 |
1 |
| Heatsink |
1 |
1 |
| Rack mounting ears |
2 |
2 |
| SCREW for Rack mounting ears |
6 |
6 |
| USB to console cable |
1 |
1 |
| RS-232 to console cable |
Option |
Option |
| Slide rail |
Option |
Option |
|
`
|
|
| Item |
Part No. |
Description |
| Slide rail |
RAIL-B02 |
New rail kit for new 1U & 2U NAS: TVS-471U, 1253U, etc |
| USB to console cable |
32013-004000-100-RS |
ROUND CABLE; LAN CABLE; FTDI Console Cable; 2; 1800MM; (A)USB A TYPE 4P MALE+PCB:FTDI_FT232RL; (B)RJ-45 8P8C; RoHS |
| RS-232 to console cable |
32005-005100-100-RS |
ROUND CABLE; RS-232/422/485; PUZZLE RS-232 Cable; 2; 500MM; 24AWG; (A) D-SUB 9P MALE+#4-40 Screw; (B)RJ-45 PLUG 8P8C; ONE PCS PKG; TC&C; RoHS |
|
`
|
|
|
