IEI Launches 4K HDR SDVoE Transceiver to Drive the Evolution of AV-over-IP

May 24, 2022

4K HDR SDVoE AV over IP Combo Transceiver

Supporting 10GbE Copper & Fiber Port

IEI's new 4K video solution, iSDV-200CTR, is a high-performance, zero latency, and 4K@60Hz (4:4:4) AV over IP video streaming transceiver, and is compliant with SDVoE technology. With its transceiver function, the iSDV-200CTR can act as a transmitter (Tx) and also a receiver (Rx) to deliver excellent flexibility of deploymentby software utility for different video scenarios. This transceiver built with the 10GbE combo port design is able to stream over copper cable or fiber cable in one device. Moreover, to offer a complete 4K video solution, IEI develops a FREE software utility, iSDV Network Video Orchestrator featuring intuitive user interface for centralization management, and enabling easy configuration of all iSDV-200CTR devices. As a leading 4K video streaming transceiver, the iSDV-200CTR delivers advanced capabilities for live event, video wall or situation room

photo description photo description photo description
photo description photo description

4K Video Streaming Transceiver

Easy Deployment by Switching Tx and Rx Function in One Device

IEI iSDV-200CTR dropped the traditional form factor design that one hardware can only be assigned as a receiver or a transmitter. The iSDV-200CTR being used as a highly comprehensive 4K video streaming solution with lower budget allows users to set Tx and Rx function in one device and supports easy deployment in any 4K video scenarios, such as video wall, big live events, situation room, or operating room.

4K Video Streaming Transceiver
4K Video Streaming Transceiver
4K Video Streaming Transceiver
4K Video Streaming Transceiver

10GbE Combo Port Design

Supporting Both Copper and Fiber Port

Based on the combo design, the iSDV-200CTR supports one 10GbE RJ45 LAN port and one 10GbE SFP+ LAN port to provide more flexible implementation to users.

10GbE Combo Port Design

Management Visualization

Easier Maintenance

For easier management, the iSDV-200CTR is designed with a LCM to show the IP address of device and different LED indicators on the front panel to check the device status on site directly.

Management Visualization

Flexible Free Software Utility

iSDV Network Video Orchestrator

Simply log in the iSDV network video orchestrator, a free software and free installation, to manage all your iSDV devices from a central console. The free software can easily implement in different platforms, such as Windows 10/11, UBUNTU 18.04 LTS+, QNAP NAS QTS 5, and has intuitive user interface allowing you to setup the mode of Tx/Rx, quickly configure display array or other settings, and check the status of all devices in real-time.

  • Free source and free installation
  • Simple installation procedure and user interface design
  • Control over matrix, video wall, and multi-viewer modes
  • Display real-time status and setting of all connected transmitters and receivers
iSDV Network Video Orchestrator
  • 1Main Function Bar 2Device List
  • 3Display Layout 4Device Information

iSDV Display Configuration

The iSDV software provides a highly-customizable display layout. You can create display matrix according to your needs or choose from the built-in options. With drag-and-drop operation, you can easily arrange receivers from the device list onto the display layout. For signal routing, simply drag a transmitter to the display zone of the desired receiver to assign source to display.

Receiver Arrangement

Signal Routing

Receiver Arrangement
Signal Routing

Flexible Deployment

iSDV makes creating multiviews and video walls simple and straightforward. Different video sources supplied by iSDV transmitters can be displayed on a multiview layout through one receiver. The iSDV software supports up to 32 video sources to meet your high-volume requirements.

With iSDV software, creating video walls of arbitrary size has never been easier. Just assign a transmitter to multiple receivers on the video wall layout, and you can build a video wall with perfectly synchronized outputs.

Multiviews

Video Walls

Multiviews
Video Walls

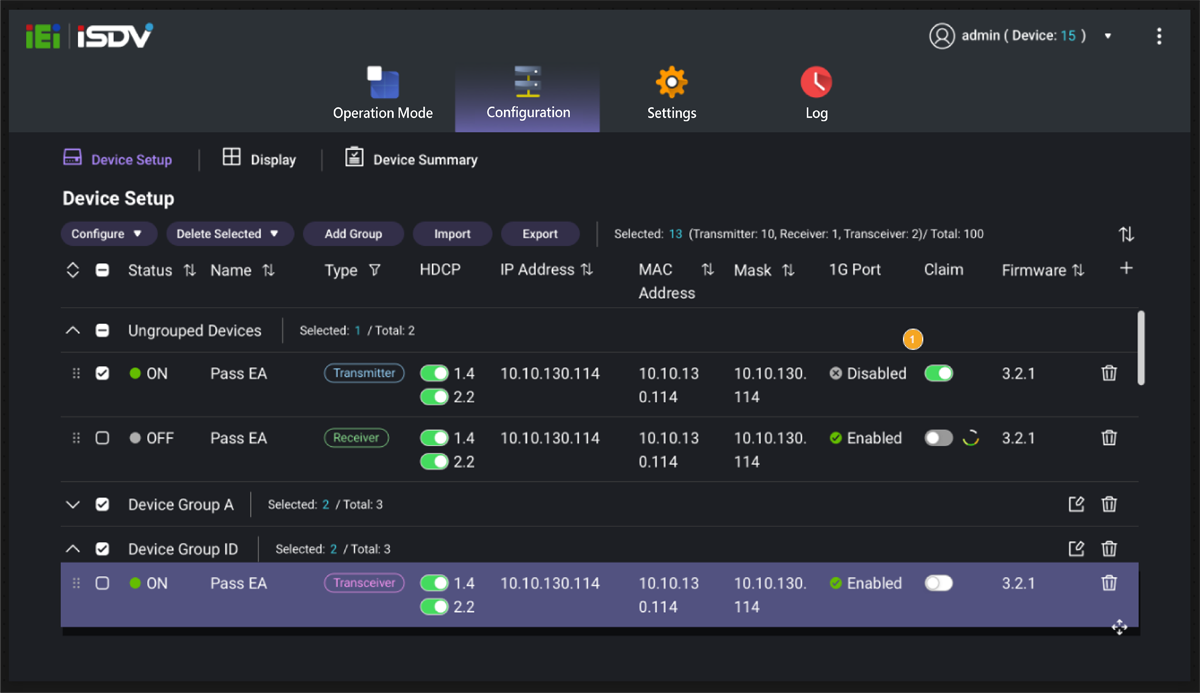

iSDV Device Setup

All of the connected iSDV transmitters and receivers can be easily managed in one single page. You can configure the settings of device group, individual device, audio, RS-232, hardware or firmware update. The device status shown in the device summary allow users to monitor devices in real time and make quick-response troubleshooting.

iSDV Device Setup

Maximum Compatibility and Stability

Fully Standard and SDVoE™ Alliance Compliant

To meet the universal market demands of 4K video solution, IEI complies with SDVoE technology and standard to offer 4K video streaming platforms with maximum compatibility, stability, and zero latency extension and switching.

 SDVoE™ Alliance

SDVoE™ Alliance, the leading AV technology provider with complete ecosystem, integrates various expert teams of manufactures, system designers, software developers, and system integrators to accelerate the replacement of point-to-point connectivity and the matrix switch with Ethernet-based AV distribution, and achieve an excellent AV experience for users.

Application in Hospital

IEI’s advanced 4K video streaming solution with iSDV-200CTR offers real-time high-resolution video sharing over hospital IP networks. It features zero latency and high efficiency of encode/decode allowing healthcare professionals to smoothly share live surgical or diagnosis video to improve medical outcomes.

Application in Hospital

Application in Shopping Mall

IEI’s iSDV-200CTR offers a scalable control room solutions. The security personnel are able to receive all high-resolution images from different IP cams, and simply manage video resources into multi-viewer, image compositing, or video wall with IEI’s free software, iSDV Network Video Orchestrator, to support guards receiving any critical issues in the meantime and ensure dead spots can be avoided.

Application in Shopping Mall

Application in Live Concert

To provide the best performance and experience of live conditions at concerts, IEI’s iSDV-200CTR delivers maximum stability and high speed in switching of Pro AV solution to stream 4K@60Hz video over the 10GbE SFP+ ports.

Application in Shopping Mall

Hardware I/O & Dimensions

 SDVoE™ Alliance

Selection for SDVoE Total Solution

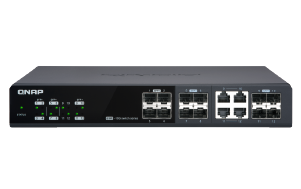

We provide a total solution for your 4K SDVoE deployment, including embedded systems for control centers, high-performance NAS for storage and web-managed switches for network management.
