DRPC-140-EHL

无风扇 DIN 导轨嵌入式系统

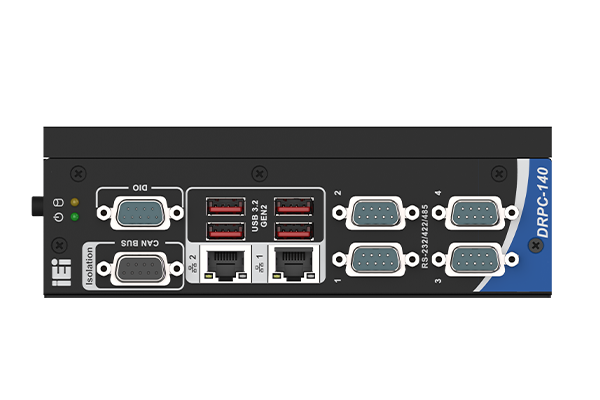

DRPC-140 IO

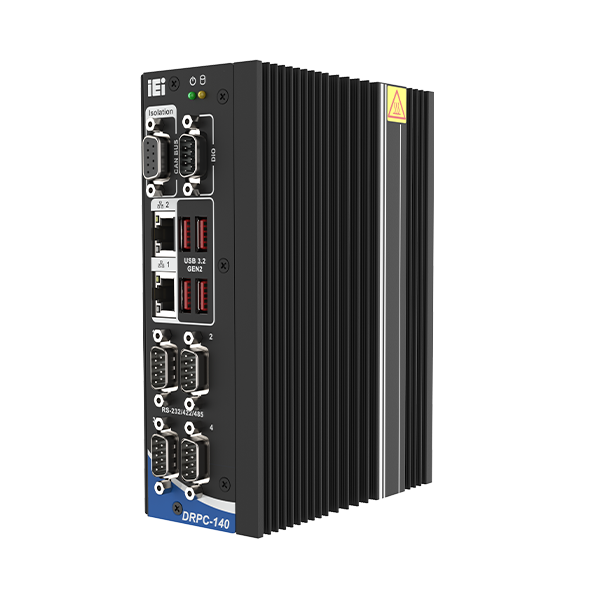

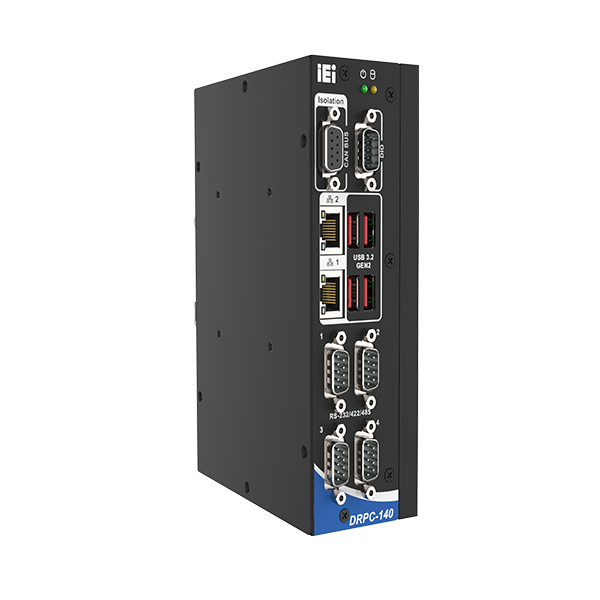

DRPC-140 Left Side

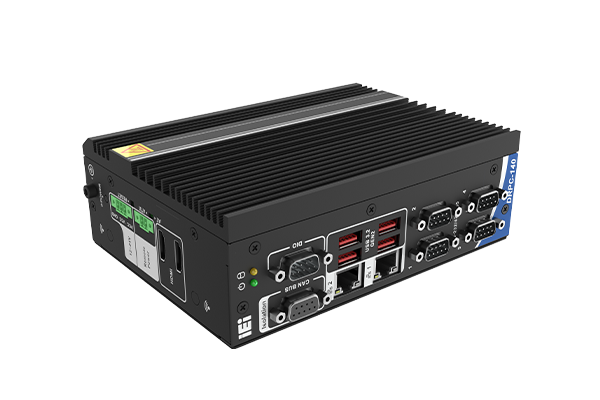

DRPC-140 Left Side 45

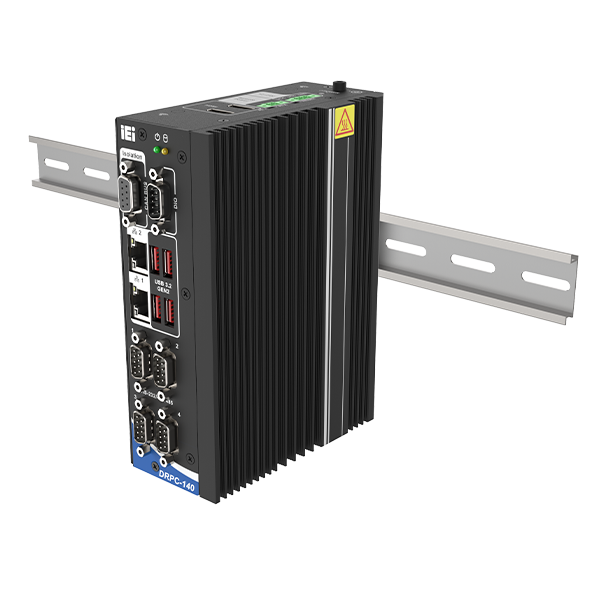

DRPC-140 Left Side with DIN
  • DRPC-140 IO
  • DRPC-140 Left Side
  • DRPC-140 Left Side 45
  • DRPC-140 Left Side with DIN
» 无风扇系统
» Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
» 四个RS232/422/485串口
» 两个带隔离的CAN总线
» 符合CE/FCC

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • Supported CPU:
    Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  • 芯片组: SoC
  • 系统内存:
    1 x SO-DIMM DDR4 3200 预装 8GB (上限 32GB)
  • 电源:
    3-针凤凰端子: 12-24V直流
    功耗: 12V@3.36 (Intel® Celeron® J6412 带8GB DDR4内存)
I/O Interface
I/O Ports
  • USB:
    4 x USB 3.2 Gen2
  • 网络:
    2 x 2.5 GbE by Intel® I226-V controller
  • 显示:
    2 x HDMI™ (up to 4K@30Hz)
  • COM Port:
    4 x RS-232/422/485 (DB-9)
  • Digital I/O:
    8-bit Digital I/O (4-in/ 4-out)
  • CAN BUS:
    2 x CAN-bus (DB9 带2.5kV隔离)
  • Wireless:
    1 x 802.11a/b/g/n/ac (选配)
  • TPM:
    1 x TPM (2 x10 pin)
    Intel PTT
  • 看门狗定时器：
    可编程 1 ~ 255 秒/分钟
Expansion Slots
Expansion Slots
  • M.2:
    1 x M.2 A Key 2230 (PCIe Gen3 x1/USB 2.0)
    1 x M.2 M Key 2280 (PCIe Gen3 x2)
System
Cooling method / System Fan 无风扇
Drive Bays eMMC 5.1 (选配) (起订量要求，请与销售联系。)
Indicator&Buttons
Buttons 1 x 电源开关
1 x 复位开关
1 x AT/ATX开关
Indicators 1 x 电源灯
1 x HDD灯
Physical Characteristics
Construction 铝合金
Color
Color 黑色
Dimensions
Dimensions 58.75 x 130 x 174 (mm)
Weight
Weight Net: 1.39kg / Gross: 1.68 kg
Environment
工作温度 -20°C ~ 60°C 带 0.7M/S 空气流动 (M.2)
相对湿度 10% ~ 95% 无冷凝
Operating Vibration MIL-STD-810G 514.6C-1 (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
安规&电磁 CE, FCC, UKCA
OS Support
OS Support Microsoft® Windows® 10/11, Linux

Ordering Information

DRPC-140-EHL-JC-R11 Fanless embedded system, Intel® Celeron® J6412 2.0GHz, (up to 2.6GHz, 4-Core, TDP 10W), 8GB DDR4 pre-installed memory, 4 x RS-232/422/485, 4 x USB 3.2, 2 x HDMI, 2 x 2.5GbE Lan, 8-bit DIO, 2 x CAN-Bus, 12~24V DC and RoHS

Package Contents

Package Content

  • 1 x DIN导轨安装支架

  • 1 x 螺丝包
