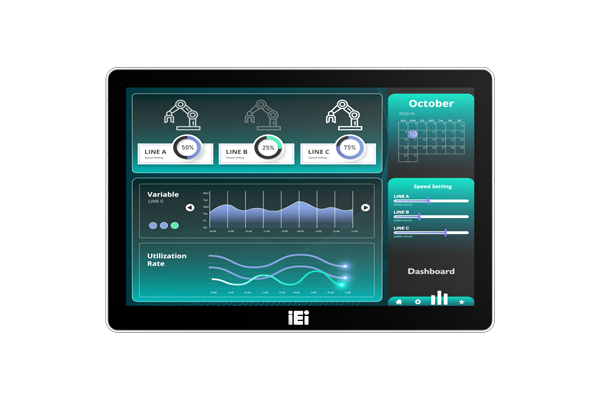

AFL4-W10-RK3568

10.1寸无风扇平板电脑 Rockchip® RK3568 处理器

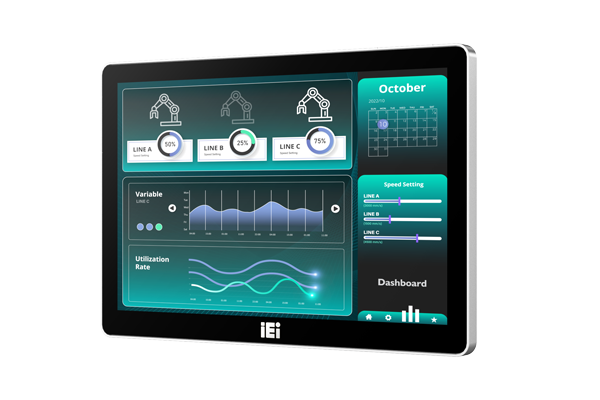

AFL4-W10-RK3568-right

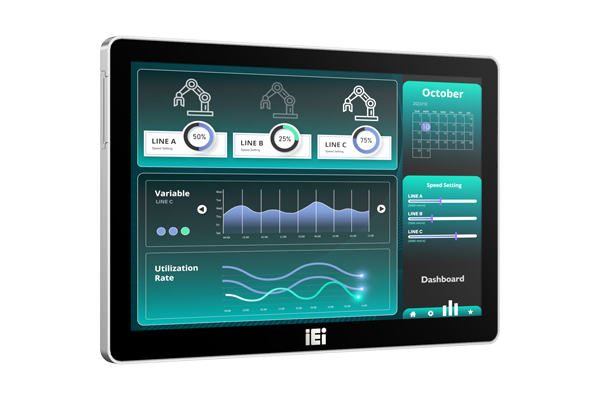

AFL4-W10-RK3568-left
AFL4-W10-RK3568-IO
  • AFL4-W10-RK3568-right
  • AFL4-W10-RK3568-left
  • AFL4-W10-RK3568-IO
» Rockchip RK3568 处理器
» 全新窄边框设计
» 防眩光和防紫外线电容触摸屏
» 支持戴手套和湿手操作
» 支持 WiFi 6E 和蓝牙 5.2 (选配)

Hardware Spec.

System
Cooling method / System Fan 无风扇
CPU Rockchip® RK3568 (Quad-core Cortex-A55, up to 2.0 GHz)
芯片组 SoC
内存 4GB LPDDR4/4X, Up to 8GB
存储 32GB eMMC NAND FLASH
Drive Bays 1 x Micro SD Slot
Communication
无线 Wi-Fi 5/6 & BT5.0 (选配 IEI 无线模块)
I/O Interface
Audio AMP 1.3W (internal speaker)
1 x Audio Jack (Mic-in&Lineout)
扩展 1 x 3042/52 B-key (PCIe Gen2 x1, USB2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key
I/O Ports 2 x USB3.0 Type A (1 x OTG, 1 x HOST)
2 x USB2.0 Type-A
2 x RS-232 & 2 x RS-485 by 1 x DB9
1 x HDMI™ 2.0 output
2 x 1GbE RJ45 By YT8521SC
Power
电源输入 12V DC Jack
Power consumption 12V@2.25 (Rockchip® RK3568 with 4GB Memory, 32G eMMC, Debian OS)
Environment
工作温度 -10°C ~ 50°C with air flow
相对湿度 10% to 90% @40°C (non-condensing)
存储温度 -20°C ~ 60°C
IP Level Front panel IP64
Physical Characteristics
机身颜色 银色 + 黑色
安装方式 Wall, Stand, Arm, VESA 75
尺寸 (LxWxH) (mm) 243.56 x 166.2 x 38.65
Net Weight 1.18 / 2.32kg
LCD
LCD 尺寸 10.1” (16:10)
分辨率 1280 x 800
亮度 420
对比度 1000:1
可视角度 (H-V) 160°/160°
背光 MTBF 30000 hours
Touch
触摸屏 PCAP with USB interface (anti-UV/AG coating)
触控IC EETI EXC81 Series

Ordering Information

AFL4-W10-RK3568-R10 10.1" 420cd/m² 1280x800 fanless Panel PC with RK3568 on-board Processor , 4GB LPDDR4 on-board , 32GB Emmc,Option:802.11a/b/g/n/ac/ax WiFi&Bluetooth®5.2 module, PCAP touch,Debian10 OS,R10
AFL4-W10-RK3568-A-R10 10.1" 420cd/m² 1280x800 fanless Panel PC with RK3568 on-board Processor , 4GB LPDDR4 on-board , 32GB Emmc,Option:802.11a/b/g/n/ac/ax WiFi&Bluetooth®5.2 module, PCAP touch,Android12 OS,R10

Package Contents

Package Content
  • 1 x 电源线

  • 1 x 电源适配器

  • 1 x QIG
