» 英特尔灵动系列 X7433RE / X7835RE 处理器
» 10~28V 宽压输入
» 304 不锈钢机身外壳
» 预装一根高性能 8GB DDR5 内存，可高达 16GB
» WiFi 6E 和蓝牙 5.2 可选配
» 高速传输光纤模块可选配

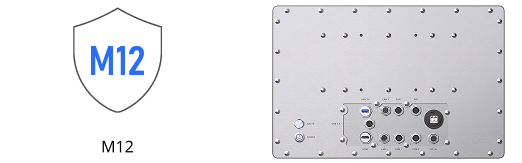

» M12 全防水接口
IP66 Premium Stainless Steel,
Built for Hygienic Environments

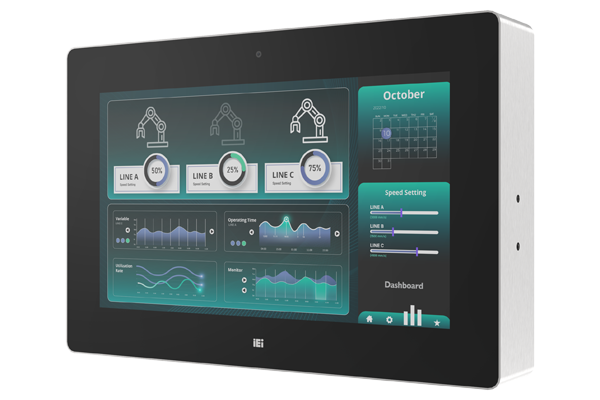

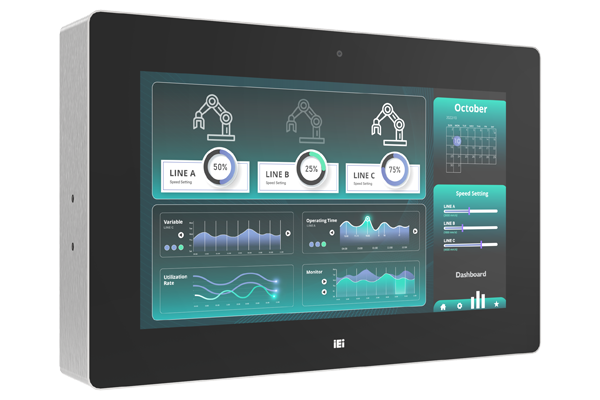

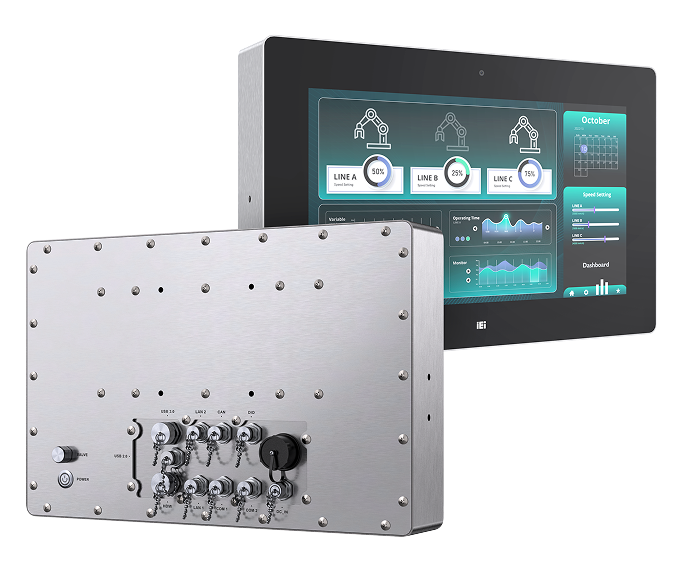

The Shield-156 from the IEI Shield Series is a rugged 15.6" stainless steel panel PC designed specifically for food processing, beverage production, cold chain, medical, and biotechnology applications. Engineered to withstand harsh environments ranging from -30°C to 55°C, this industrial-grade panel PC ensures reliable 24/7 operation with exceptional durability, meeting the unique requirements of hygienic and temperature-sensitive applications.
IP66 Waterproof
MIL-STD-810G Shock Test
High Bandwidth Long Distance
with Optical Fiber
15.6” 1920 x 1080 TFT-LCD
with 178° Wide Viewing Angles
-30°C ~ 55°C
Extended Temperature
Wide Range DC Input
304 Stainless Steel
Anti-Corrosion
Dual
2.5Gbe LAN
Power-Efficient Performance for AI and Graphics
Powered by Intel Atom® Processors x7000RE Series Processors, the Shield-156 delivers improved performance and stability for device applications. With support for up to eight E-cores, Intel UHD Graphics with up to 32 execution units (EUs), and deep learning inference capabilities, it is ideal for industries requiring superior computing power while DDR5 memory ensures fast and efficient data processing. Intel Time-Coordinated Computing (Intel TCC) enables predictable, smooth operation for latency-bound workloads in food processing industry.
PERFORMANCE
Up to
1.49x (est.)
faster graphics
performance3
vs. Intel Atom® processors
x6000RE Series
Up to
1.61x (est.)
faster multithread
performance3
vs. Intel Atom processors
x6000RE Series
GRAPHICS
Up to
5.15x
faster single-thread
performance3
vs. Intel Atom® processors
x6000RE Series
Up to
9.83x
higher performance
in image classification3
vs. Intel Atom processors
x6000RE Series
304 Stainless Steel Strong Corrosion Resistance
Crafted from premium stainless steel, the Shield-156 features a non-toxic, easy-to-clean surface, providing outstanding corrosion resistance. This is designed to maintain structural integrity even in moisture-rich and chemically intense settings.
Deformation Resistance
Corrosion Resistance
-30°C to 55°C Resilience for Extreme Food Processing Environments
The Shield-156 features an internal bumper-like thermal structure that prevents deformation and withstands extreme conditions. Its rugged casing enhances heat retention, reducing thermal dissipation challenges in freezing environments. This ensures longevity and low maintenance, making it a reliable solution for extreme conditions.

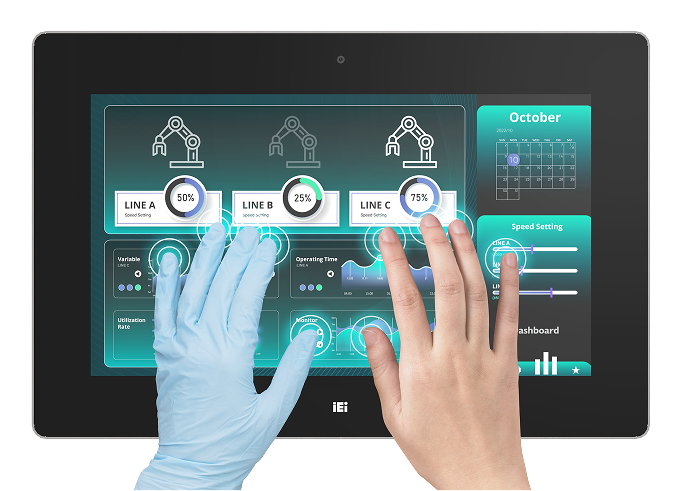

10-Point Multi-Touch PCAP
Features a 10-point multi-touch PCAP panel, allowing seamless operation even in demanding environments. It is designed to work with gloves and water, ensuring high usability in hygienic settings. Additionally, the 7H scratch-resistant surface hardness enhances durability, while anti-glare and anti-UV features provide optimal visibility in bright industrial environments.

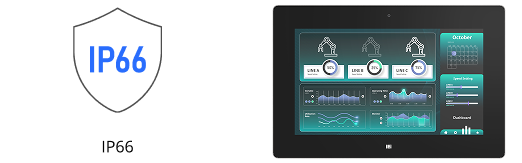

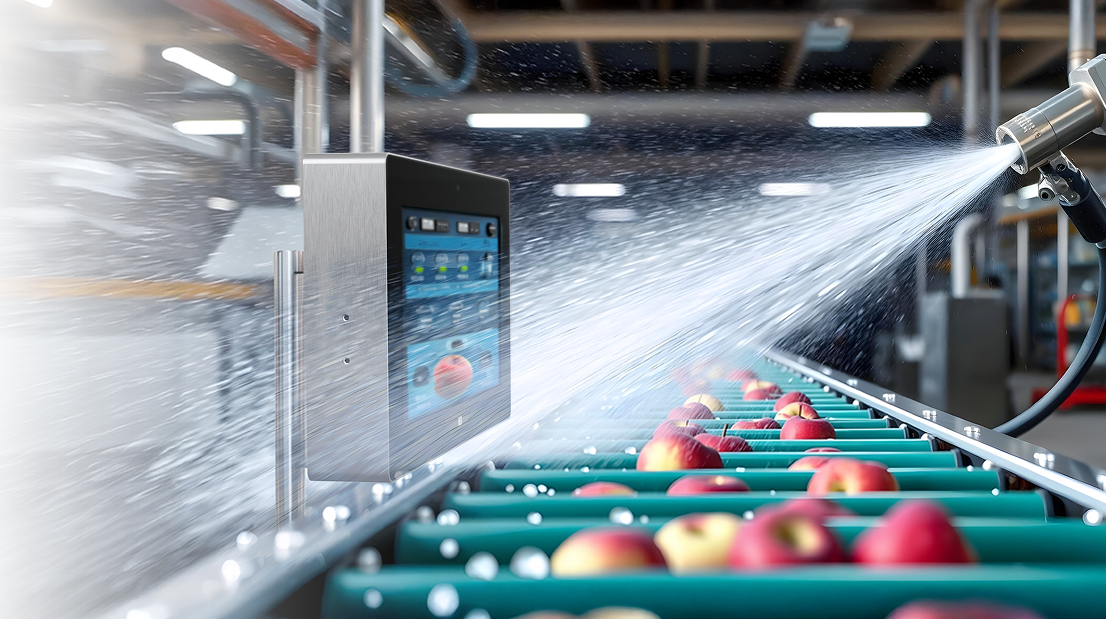

IP66 Full Screen Waterproof and Dustproof
With an IP66 rating, the Shield-156 offers comprehensive waterproof protection, preventing damage from water and contaminants. Also, with the waterproof M12 and M20 connectors, it ensure secure and reliable data transmission, even in wet or hazardous conditions.

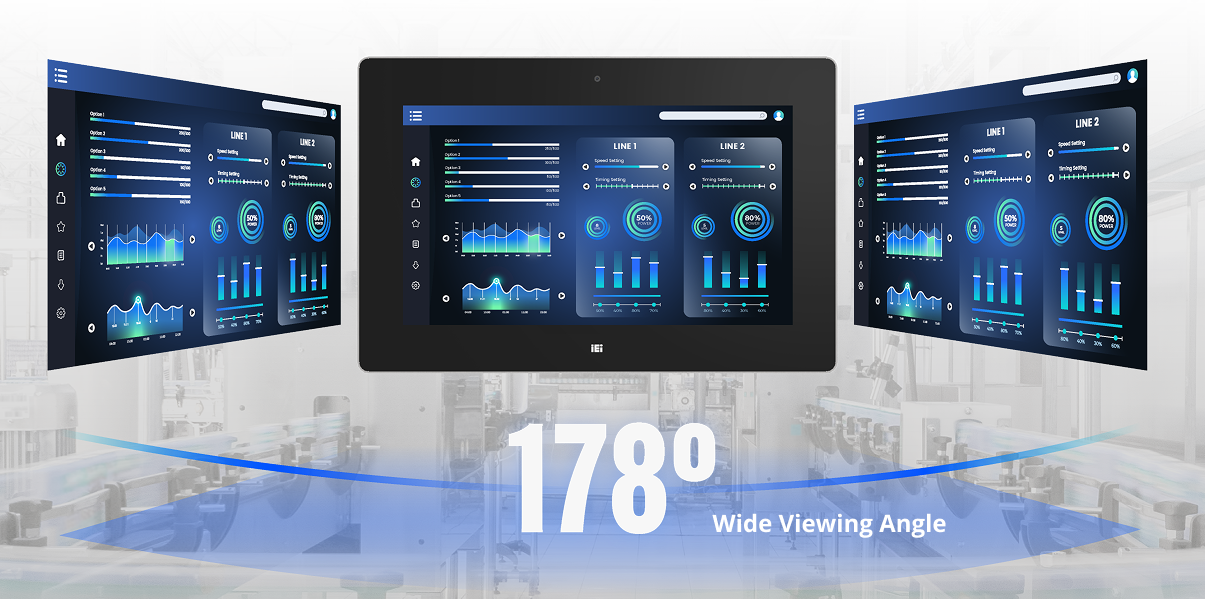

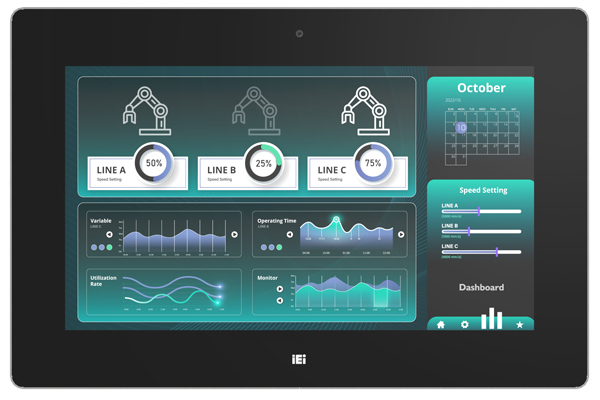

Clear View with IPS technology
The Shield-156 is equipped with a 1920x1080 FHD resolution display with 450 nits brightness, ensuring superior image clarity in industrial environments. IPS technology provides wide viewing angles and exceptional visibility.

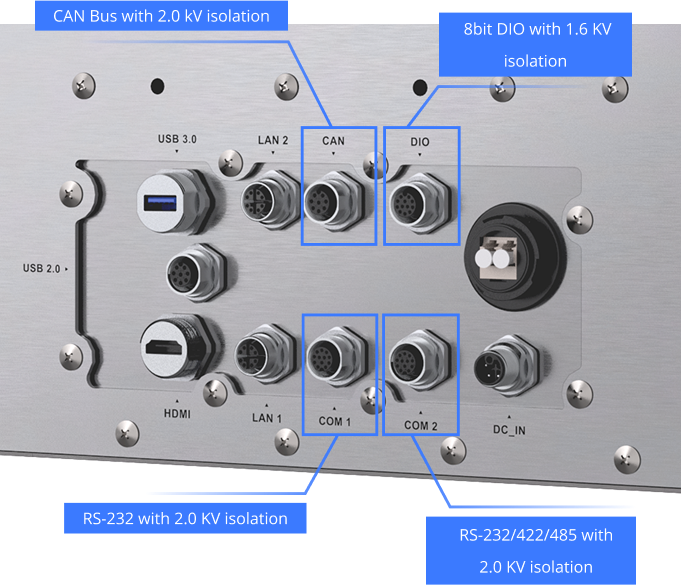

Isolated IIoT-Centric Connectivity
By integrating isolated I/O protection, the system is safeguarded against electrical surges, electromagnetic interference (EMI), and voltage spikes, which are common in industrial environments with heavy machinery and automation equipment. This ensures stable data transmission and prevents system failures, minimizing disruptions to food production lines.

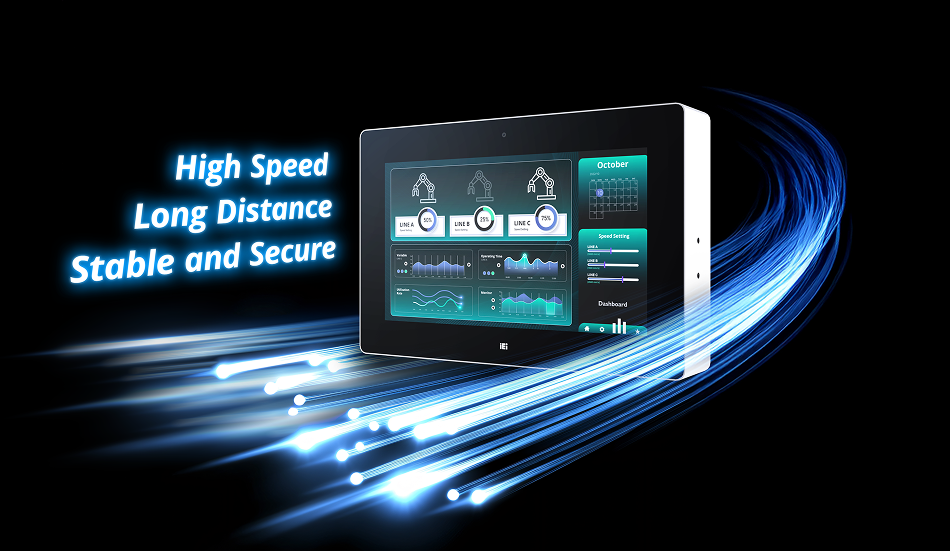

Optical Fiber Flexible for Fast Industry 4.0 Deployments
Designed for industrial efficiency, the Shield-156 features optical fiber connectivity, offering:
- ● High bandwidth for high-speed data transmission
- ● Low signal attenuation for long-distance communication (up to 40KM)
- ● Anti-electromagnetic interference for stable connectivity
- ● High security for critical industrial data applications

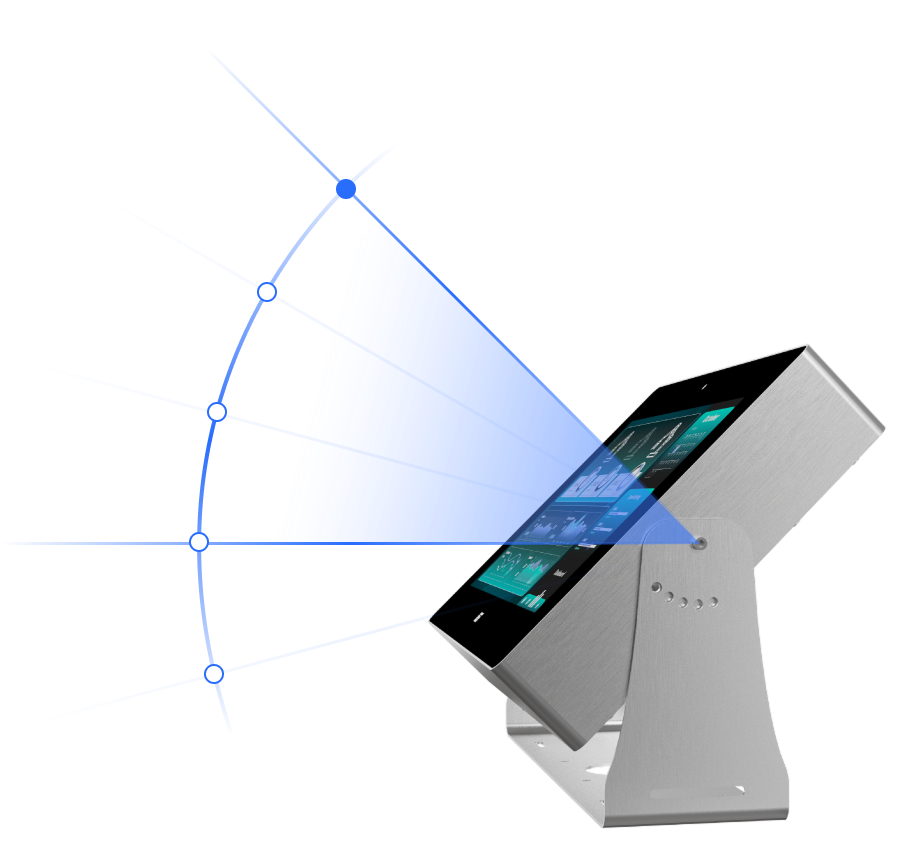

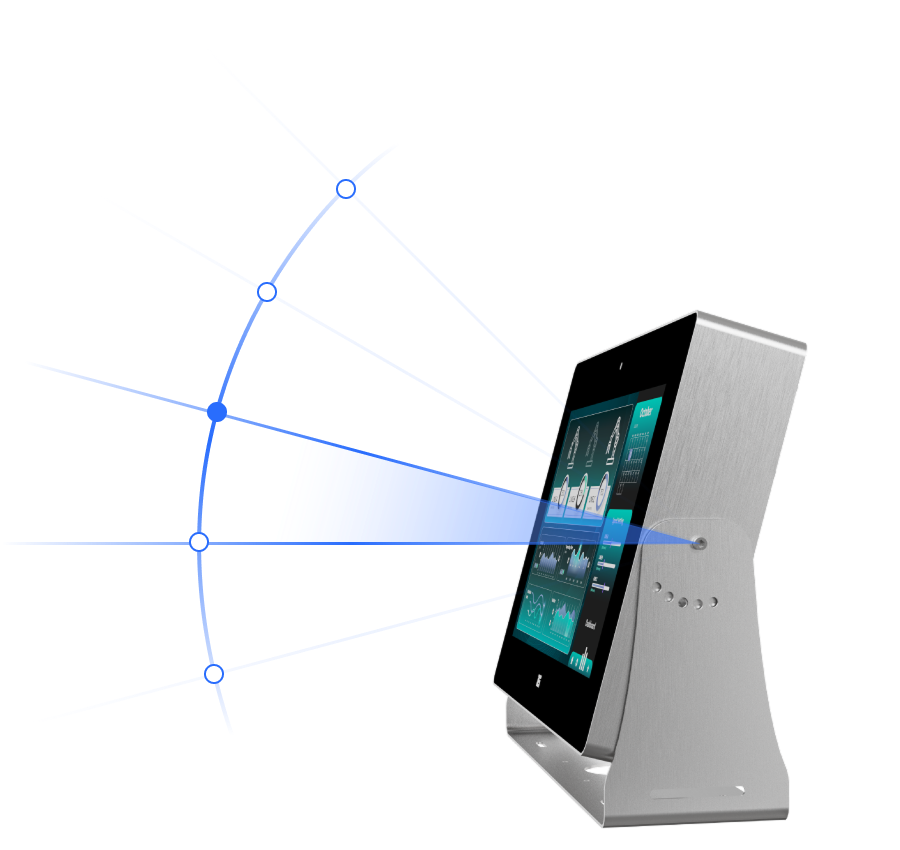

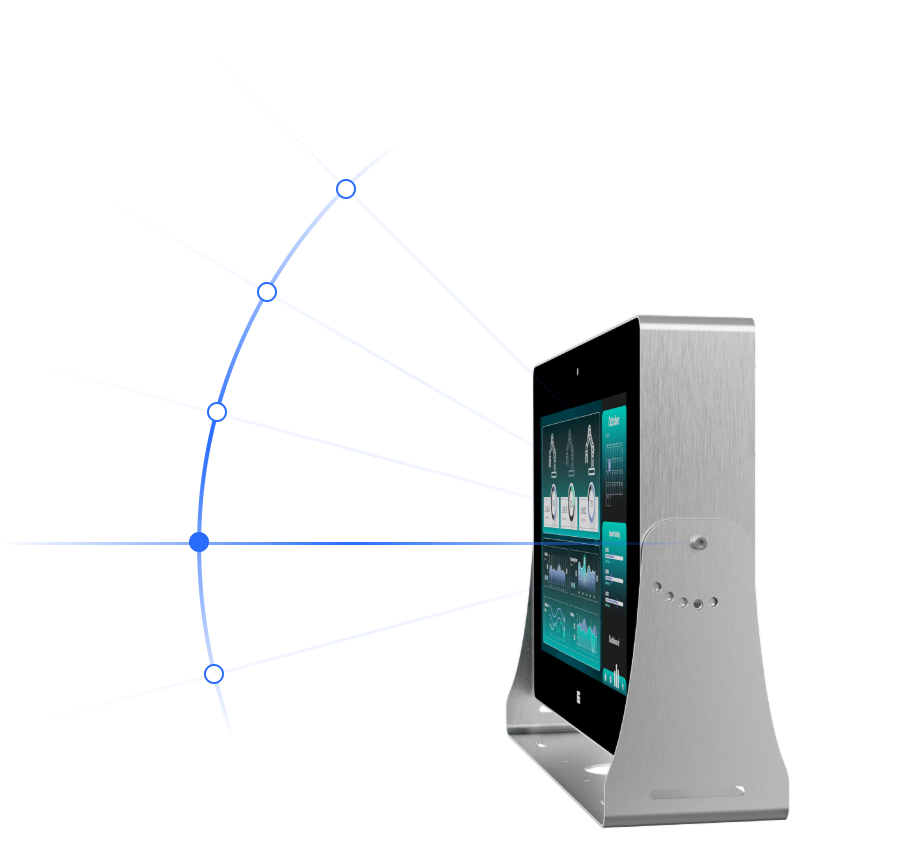

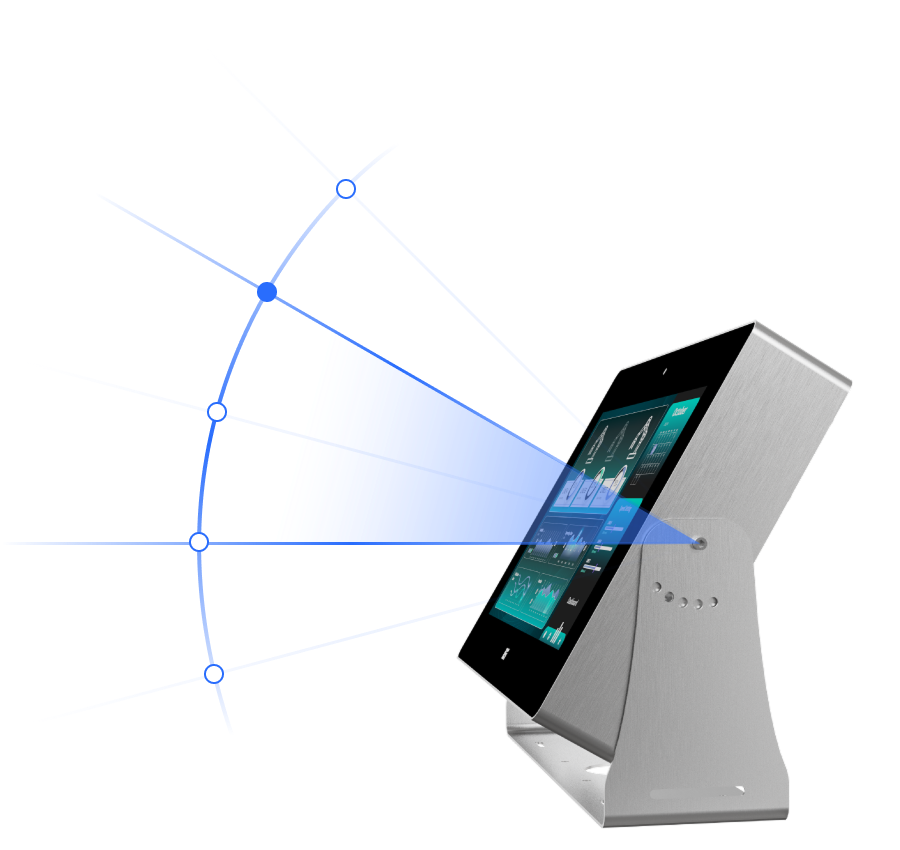

Flexible Mounting
The Shield-156 supports 100 x 100 VESA mounts and Yoke mounts, enabling flexible installation in cleanrooms, cold chain storage, and factory ceilings.
+45°
+30°
+15°
+0°
-15°

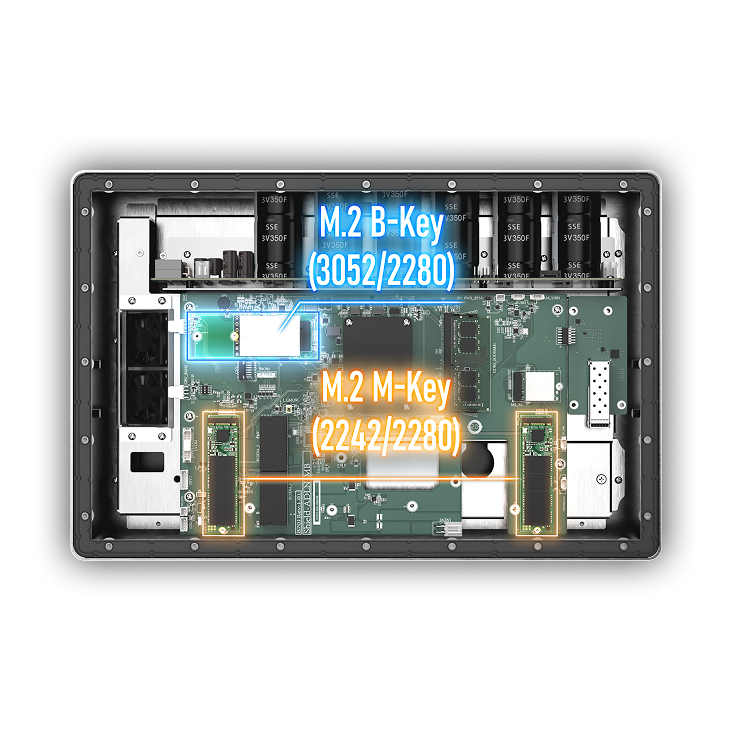

High-Speed, High-Capacity Data Agregation M.2 SSD Expansions
- ● 1x M.2 2280 M-Key (PCIe Gen3 x2)
- ● 1x M.2 2242/2280 M-Key (PCIe Gen3 x1 + SATA)
- ● 1 x M.2 3052/3080 B-Key (PCIe Gen3 x1 + USB 3.0 x1)
Dual 2.5GbE High Speed Ethernet
Intel i226IT Dual LAN RJ45 Network ensures stable, high-speed connectivity for industrial use, providing network redundancy, reducing downtime, and improving reliability in mission-critical environments.

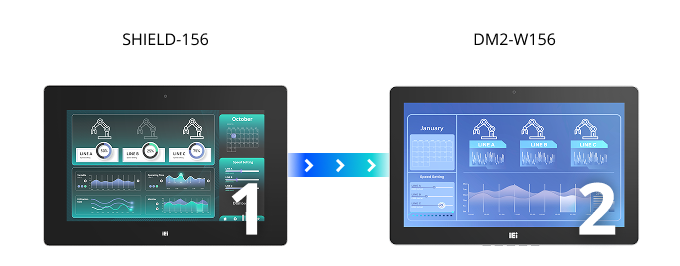

Second Screen Display
The SHIELD features an HDMI interface, allowing you to extend your workspace to a second monitor in 4K resolution.

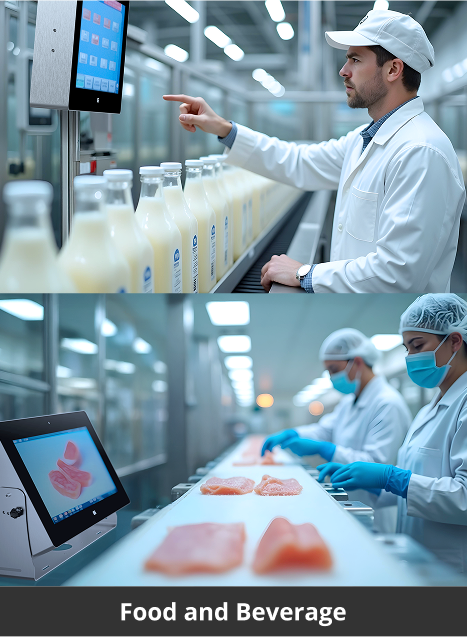

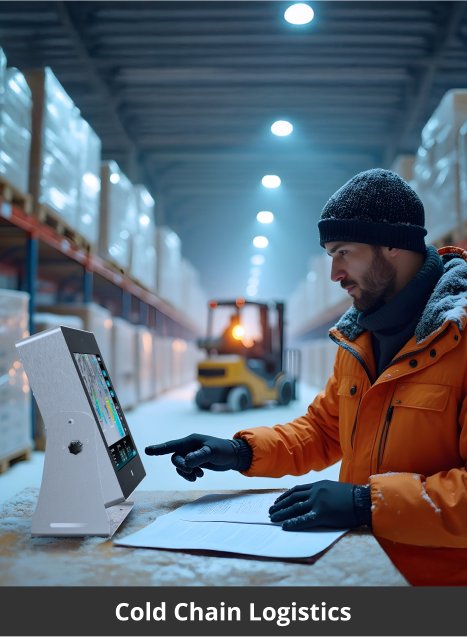

Applications

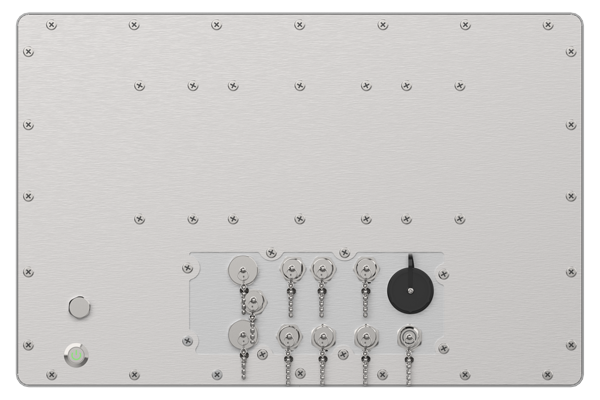

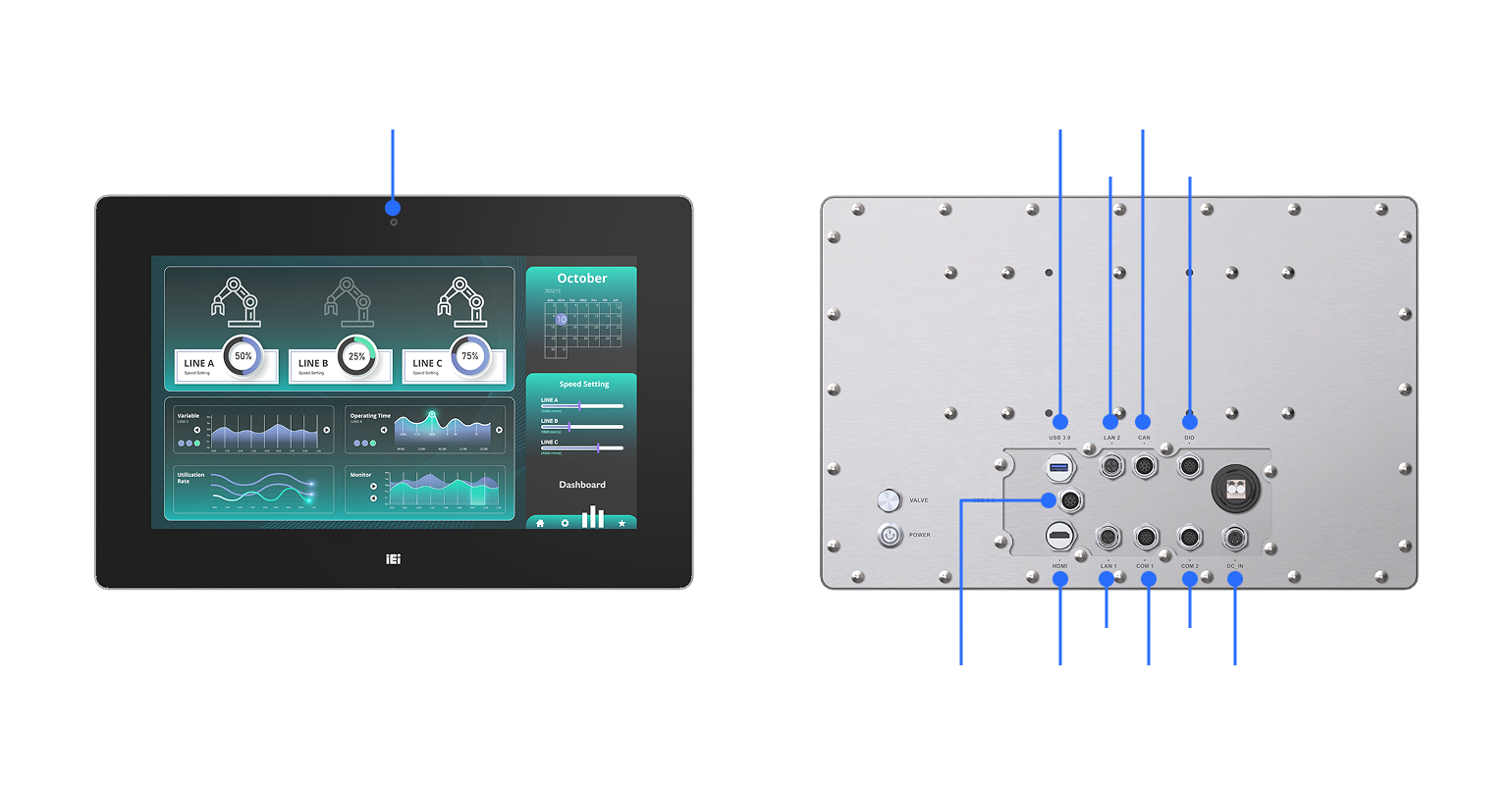

I/O Interface
Dimensions (Unit: mm)
Hardware Spec.
| System | |
|---|---|
| CPU |
Intel Atom® x7433RE Processor 6M Cache, up to 3.40 GHz / TDP 9w Intel Atom® x7835RE Processor 6M Cache, up to 3.40 GHz / TDP 12w |
| Memory Ext. | 一根 SO-DIMM DDR5-4800 插槽，可高达 16GB (预装 8GB，支持 ECC) |
| 存储 |
1 x M-Key 2280 (PCIe Gen3 x2) for M.2 SSD 1 x 128GB Emmc (选配) |
| Communication | |
| 无线 | IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (选配) |
| I/O Interface | |
| 网络 | 2 x 2.5GbE LAN via Intel I226-IT |
| 扩展 |
1 x M.2 M-Key 2242/2280 (PCIe Gen3 x1 + SATA) 1 x M.2 B-Key 3052/3080 (PCIe Gen3 x1 + USB 3.0 x1) 1 x NANO-SIM 1 x M.2 E-key 2230 (PCIe Gen3 x1 + USB 2.0 x1) for optional WIFI/BT module |
| Power | |
| Power Supply | 10 ~ 28V直流 |
| Environment | |
| 工作温度 | -30°C ~ 55°C @50%RH |
| 安规&电磁 | CE, FCC (Class A) |
| 相对湿度 | 10% ~ 90% (无冷凝) |
| 存储温度 | -40°C ~ 70°C |
| IP Level | 全机身符合 IP66 防护等级 |
| Physical Characteristics | |
| 机身颜色 | silver |
| 安装方式 | Yoke / VESA 100mm |
| LCD | |
| LCD 尺寸 | 15.6” |
| 分辨率 | 1920 x 1080 (16:9) |
| 亮度 | 450 cd/m² |
| 对比度 | 800 : 1 |
| LCD 色彩 | 16.2M |
| 像素间距 (mm) | 0.179 (H) x 0.179 (V) |
| 可视角度 (H-V) | 178°/178° |
| 背光 MTBF | 50000 小时 |
| Touch | |
| 触摸屏 | PCAP with USB interface (anti-UV/AR coating) |
| 触控IC | ILI2520 |
| Other Features | |
| Camera | 1 x Camera (Wide-viewing angle) |
| I/O Interface | |
| I/O 接口 | 1 x CAN-bus (with 2.0 kV isolation) |
| 1 x Power Switch | |
| 1 x RS-232 (with 2.0 kV isolation) | |
| 1 x RS-232/422/485 (with 2.0 kV isolation) | |
| 1 x USB 2.0 | |
| 1 x USB 3.2 Gen1x1 | |
| VGA | |
| 2 x LAN (2.5GbE) | |
| 1 x DC Input Jack | |
| 1 x GPIO (with SMbus (1.6 KV isolation)) | |
Ordering Information
| SHIELD-156-R4C-R10 | 15.6" 450cd/m² 1920x1080 Panel PC with Intel® Atom x7835RE Processor, TDP 12W, Preinstalled with 8GB DDR5, PCAP touch, 10~28V DC, 304 Stainless Steel Chassis, Full body IP66 Rated With Water-Proof Connectors , R10 |
|---|---|
| SHIELD-156-R3C-R10 | 15.6" 450cd/m² 1920x1080 Panel PC with Intel® Atom x7433RE Processor, TDP 9W, Preinstalled with 8GB DDR5, PCAP touch, 10~28V DC, 304 Stainless Steel Chassis, Full body IP66 Rated With Water-Proof Connectors , R10 |
Package Contents
| Package Content |
|
|---|
