» Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz
» 8 inch 10-point multi-touch PCAP touch panel
» 6 x USB (4 x USB 2.0 / 2 x USB 3.0)
» HDMI in up to 4K@60FPS
» 2 x HDMI output (1x 8K@60Hz / 1x 4K@60Hz)
» Onboard 8GBLPDDR4x Memory
Future-Ready 8” 4K Video Recorder and Still Image Capture
Streamline Medical Video Recording and Archiving

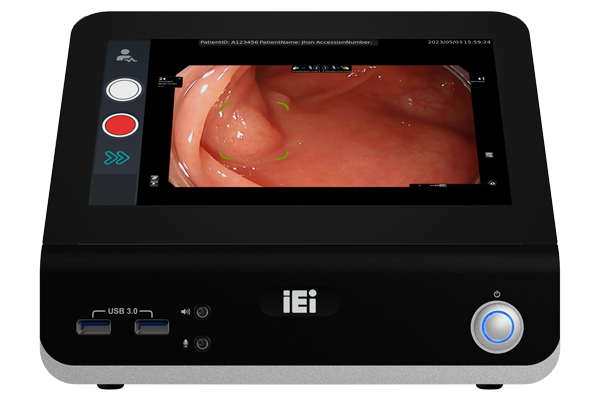

The EndoCap-3588 is an all-in-one video recorder and capture system that enhances the digital recording of traditional endoscopes, extending the lifespan of existing equipment during upgrades.
This device features an integrated 8" touch screen, reducing the need for extra peripherals, simplifying cable management, and saving space. Its intuitive I/O design and high-resolution capture software support various functions. The rear I/O zone's eave-like design prevents dust entry.
With DICOM worklist integration and FDA certification, the EndoCap-3588 enables seamless digital transformation and PACS server integration for endoscopy processes.
8-inch touchscreen display
interface
Rockchip RK3588
Records medical imaging
up to 4K resolution
Automatic DICOM conversion and
direct PACS transmission
1 x HDMI input 4K @30FPS
2 x HDMI output up to 8K@60FPS
FDA Certification for software
Wi-Fi 6
Bluetooth
Complete Function Software
User-friendly interface easy to operate
The endoscopy software offers a user-friendly interface for easy navigation. With clear layouts and intuitive icons, users can quickly access functions, enhancing efficiency and precision.
FDA-Certified Medical Software
No.：FDA K152034
Low-Latency 60 FPS Recording
The device can record in 60 FPS and recording with screenshot capture at up to 4K resolution, utilizing an efficient MP4 video format for convenient sharing. It also supports real-time screenshot capture during recording, allowing users to document key moments without interrupting the video process.
- 1 x HDMI-output up to 4K@60FPS
- 1 x HDMI-input up to 4K@30FPS,
1080P@60FPS
Encoding Formats
- 1 x HDMI-output up to 8K@60FPS
- 8K resolution for image capture
Capture Image Format
Onboard LPDDR4x Memory & Pre-installed 4TB NVMe SSD
Maximize Storage for Your Medical Imaging Needs
The EndoCap-3588 recorder supports 4K video capture with one M.2 M Key 2280 NVMe SSD slot, utilizing a PCIe Gen3 x4 interface, making it ideal for recording medical procedures and surgeries. Additionally, it features on-board 8GB LPDDR4x memory, ensuring efficient performance and seamless operation in demanding medical environments.
Built-in 32GB eMMC for Reliable Storage
It is ideal for demanding applications and is highly reliable. Considering its size, eMMC is capable of handling extremely large amounts of data in such a small footprint.
Durability
Cost
Effectiveness
Ease of
Integration
32GB eMMC Built for Speed and Efficiency in Data Handling
It is ideal for demanding applications and is highly reliable. Considering its size, eMMC is capable of handling extremely large amounts of data in such a small footprint.
Durability
Cost
Effectiveness
Ease of
Integration
Compatible DICOM 3.0 Standard
Enhance efficiency for smoother workflows
Endocap-3588 supports DICOM 3.0, ensuring access to the latest patient data, and transfer those data to the system including PACS, EMR, and EHR. This integration allows healthcare professionals to quickly access patient imaging data across these platforms.
Superior Multiple Transfer Platform
Flexible Options to Fit User Habits
The multi-transfer platform cater to users' needs, especially featuring two USB ports conveniently located on the front panel for quick and easy file saving, without changing users' habits
Effortless GPIO-Integrated Image Control for Sterile Medical Environments
The foot pedal, seamlessly integrated via the GPIO interface, enables effortless hands-free control of recording start and stop functions. Designed to enhance efficiency in medical procedures, it empowers healthcare professionals to operate the imaging system with ease while maintaining strict sterility standards.
Plug and Play
Supports Foot Pedal

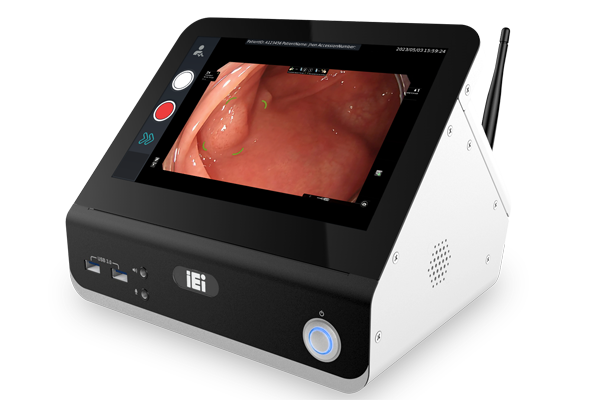

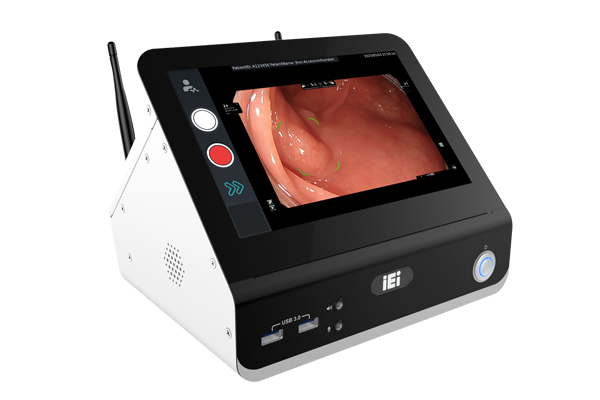

Integrated 8" TFT LCD
with Multi-Touch Screen
The 8” FHD 1920x1200 10-point touch screen expands the field of view, providing a more immersive experience while enabling users to execute complex gestures simultaneously, even when wearing layers of gloves. Its intuitive touch capability eliminates the need for traditional peripherals like a mouse or keyboard, streamlining workflows in any environment.
Seamlessly Upgrade Legacy Endoscopy Systems with Advanced Video Recording
Traditional endoscopy systems lack recording capabilities, but with the integration of EndoCap-3588, legacy systems receive a seamless upgrade. The EndoCap-3588 is an all-in-one video recorder and capture system, designed to enhance digital recording for conventional endoscopes, maximizing the lifespan of existing equipment while enabling modern workflow efficiency.
Applications
Surgical Room
Endoscopy
I/O Interface
- 1 2 x USB 3.0
-
2
1 x line out
1 x Mic in -
3
8” PCAP 1920x1200
touch panel - 4 Power Button
- 5 1 x DC IN
- 6 4 x USB 2.0
-
7
1 x GbE LAN
1 x 2.5GbE LAN -
8
1 x HDMI-input up to
4K@60FPS -
9
1 x HDMI-output up to 8K@60Hz
1 x HDMI-output up to 4K@60Hz -
10
3.5mm jack for
capture in & print out - 11 2 x GPIO for Pedal
Dimensions
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 8” |
| LCD Resolution | 1920 x 1200 |
| LCD Brightness (cd/m²) | 460 |
| LCD Contrast Ratio | 900:1 |
| LCD Color | 16.7M (8-bit) |
| LCD Pixel Pitch (mm) | 0.0897 x 0.0897 |
| LCD Viewing Angle (H-V) | 170°/170° |
| Touch Screen | Projected capacitive type with 10-point multi-touch |
| Touch Controller | ILI 2520 |
| System | |
| Processor | Rockchip RK3588 (Quad core Cortex-A76 + Quad-core Cortex-A55) |
| GPU | ARM Mali-G610 MP4 |
| NPU | 6TOPS NPU, triple core, support int4/int8/int16/FP16/BF16/TF32 acceleration |
| Supported OS | Debian 11 (Linux kernel 5.10) |
| Network | |
| Wi-Fi | Wi-Fi 6 |
| Bluetooth | Bluetooth v5.0 |
| Storage | |
| Storage | On-board 8GB LPDDR4x |
| RAM | On-board 32GB of eMMC NAND Flash |
| Expansion Slots | |
| Expansion Slots | 1 x M.2 2280 M key slot |
| Audio | |
| Audio | 1 x Line-out jack |
| Speaker | 2 x 3W speaker |
| Microphone | 1 x Mic-in |
| I/O Interface | |
| Front I/O |
1 x Audio 1 x Speaker 2 x USB3.2 Gen 1 (5Gb/s) Type A |
| Rear I/O |
1 x DC jack 1 x GHz LAN 1 x 2.5 GHz LAN 4 x USB 2.0 Type A 1 x HDMI input4K@60FPS 1 x HDMI output4K@60FPS 1 x HDMI output8K@60FPS 1 x 3.5 mm input 1 x 3.5 mm output 2 x RS-232 (GPIO) |
| Indicator&Buttons | |
| Buttons | 1 x Power on/off |
| Indicators |
1 x Power LED 1 x Capture status |
| Physical Characteristics | |
| Color | White/Black |
| Thermal | Fanless |
| Weight (Net) (kg) | 1.88 |
| Weight (Gross) (kg) | 4.89 |
| Dimensions (LxWxH) (mm) | 205.4 x 168.34 x 162.65 |
| Power | |
| Output | 12V DC |
| Power Consumption | 65W power adapter |
| Environment | |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -20°C – 65°C |
| Humidity | 10% – 95% (non-condensing) |
| Vibration | 1G |
| Operating Vibration | 5G peak acceleration (11ms duration) |
| Operating Shock | 15G peak acceleration (11ms duration) |
| Certifications | |
| Safety & EMC | CE, FCC Class A Part 15, CCC, IEC 62368-1, FDA |
Ordering Information
| EndoCap-3588-R10 | Box PC, 8" panel, PCAP touchscreen, Rockchip RK3588, on-board 8GB LPDDR4x, on-board 32GB eMMC, 65W power adapter, w/o M.2 SSD, w/ Wi-Fi Antenna, FW with IEI Logo, IEI logo plate, R10, RoHS |
|---|
Package Contents
| Package Content |
|
|---|
