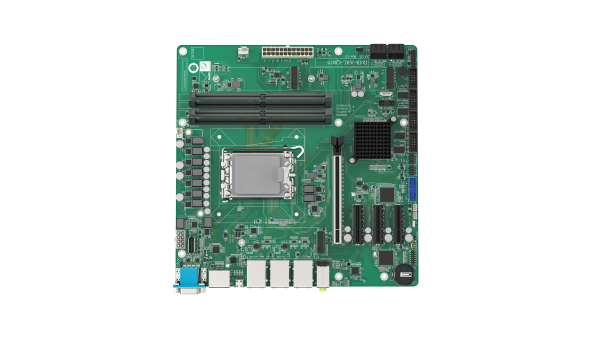

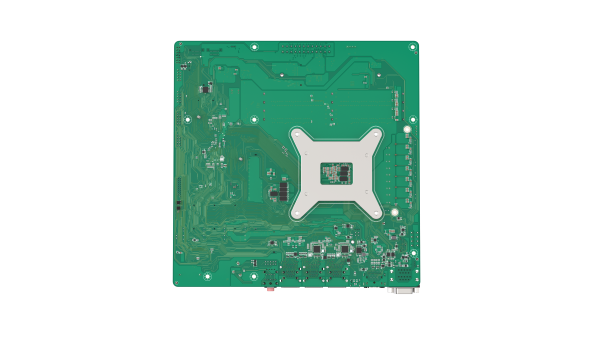

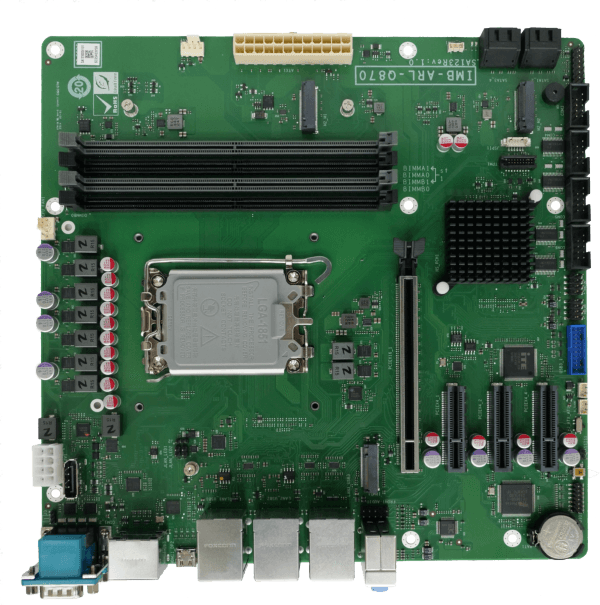

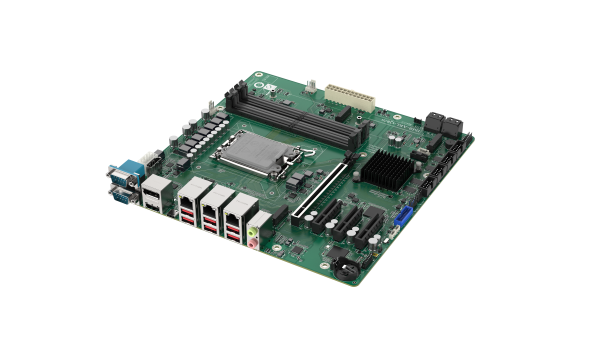

IMB-ARL-Q870
1. high-Performance Intel® Core™ Ultra Processors (Series 2)
2. 支持四个 288-pin 5600 MHz Dual-Channel DDR5 Clocked Unbuffered DIMM (CUDIMM) 高达 192GB
3. 只支持两个Intel® 2.5GbE 控制器
4. 支持 PCIe Gen5 x16, PCIe Gen4 x4, 2 x M.2 M key 和 M.2 B key 扩展
Hardware Spec.
| 尺寸类型 | |
|---|---|
| 尺寸类型 | Micro-ATX |
| 系统 | |
| CPU | high-Performance Intel® Core™ Ultra Processors (Series 2) |
| 内存 | Four 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Clocked Unbuffered DIMM (CUDIMM) DIMMs |
| 内存上限 | 192GB |
| 散热方案/系统风扇 |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| 物理特性 | |
| 尺寸 (LxWxH) (mm) | 244mm x 244mm |
| 净重 | GW: 1200g / NW: 700g |
| 存储 | |
| 存储 | 4 x SATA : 6Gb/s (RAID 0/1 supported) |

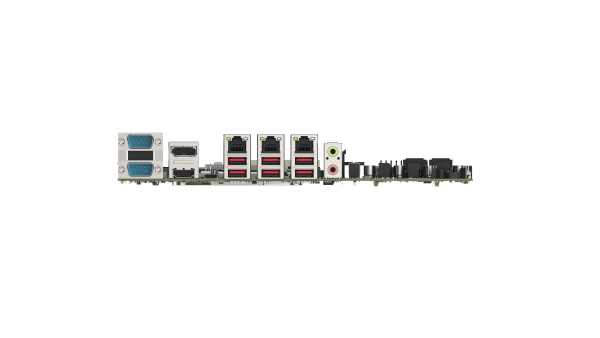

| I/O 接口 | |
| 显示输出 | 1 x HDMI™ : HDMI 1.4 (高达 4K @30Hz) |
|
1 x DP++ - DP1.4 (高达4K @60Hz) DP1.4 (高达4K @60Hz) 内部 |
|
| 1 x USB4 : 40Gb/s speed, support DP 4096 x 2304 @60Hz, up to 15W per port | |
| 网络 |
2 x LAN - LAN1: Intel® I226-LM 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller |
| I/O接口 | 2 x 外部RS-232/422/485 : RS-485 support AFC |
| 4 x 内部RS-232 : 2x5 pin, P=2.54 | |
| 4 x 内部 USB 2.0 : 2x4 pin, P=2.54 | |
| 1 x DIO : 12位数字 I/O (2x7 pin) | |
| 6 x 外部 USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 2 x Internal USB 3.2 Gen1x2 : 2x10 pin, P=2.00, 5Gb/s | |
| 扩展 | 1 x PCIe x16 : PCIe Gen5 x16 |
| 3 x PCIe x4 : PCIe Gen4 x4 | |
|
2 x M.2(NGFF) - 2 x M.2 M Key (2280, PCIe x4) 支持 NVMe 1 x M.2 B key 适用于 IRIS2-2600 |
|
| 电源 | |
| 电源功耗 |
3.3V@5.05A, 5V@11.94A, 12V@5.79A, 5VSB@0.6A (Intel® Core™ Ultra 9 285 with DDR5 5600MT/s U-DIMM 48GB memory) |
| 电源供电 |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| 环境 | |
| 操作温度 | 0°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, 无冷凝 |
Ordering Information
| IMB-ARL-Q870-R10 | micro-ATX motherboard supports LGA1851 Intel® 15th Generation Ultra™ processor, DDR5, Quadruple independent displays, triple LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
