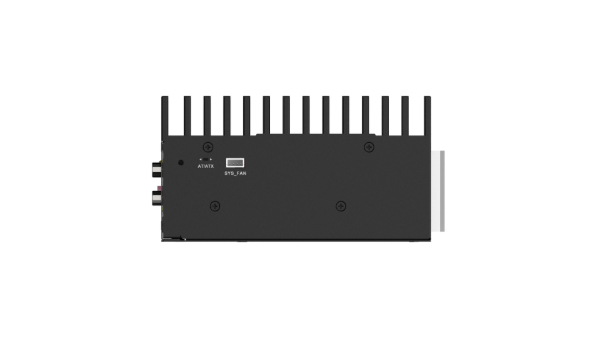

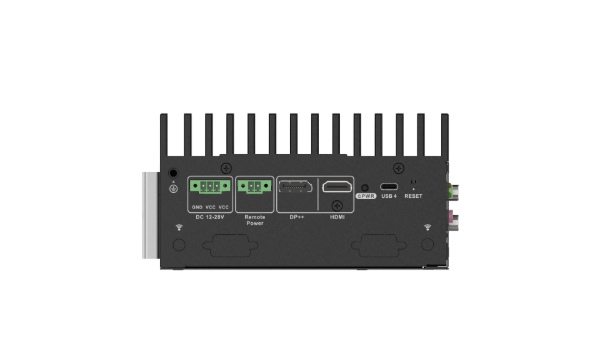

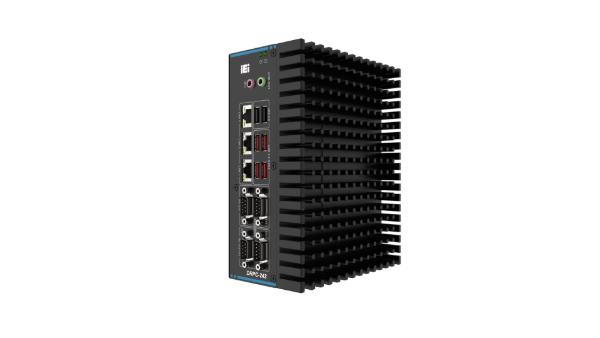

DRPC-243-MTL

Fanless DIN-Rail Embedded System

» Supported CPUs:
Intel® Core™ Ultra Processors (Series 1)(Meteor Lake platform)
» 4 x USB 3.2 Gen2 & 2 x USB 2.0
» Triple independent display (HDMI™ + DP + USB-C)
» 2 x RS-232 & 2 x RS-422/485 (with 2.5KV isolation)
» CE/FCC compliant

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • 支持的 CPU：
    Intel® Core™ Ultra Processors (Series 1) (Meteor Lake platform)
  • 芯片组：
    SoC
  • 系统内存：
    2 个 SO-DIMM 插槽，支持 DDR5 5600 MHz (预安装 16GB) (可支持达 96GB)
  • 功率：
    3 引脚接线端子：12 ~ 28 VDC (直流电)

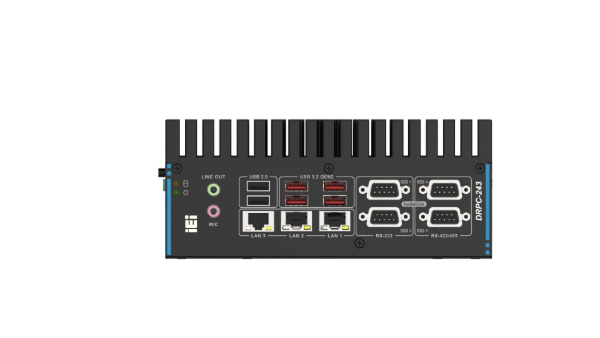

I/O Interface
I/O Ports
  • USB:
    4 x USB 3.2 Gen2 Type-A
    2 x USB 2.0 Type-A
  • 网络:
    1 x 2.5 GbE by Intel® I226LM controller
    2 x 2.5 GbE by Intel® I226-V controller
  • Display:
    1 x HDMI™ 1.4b (最高支持 4K@30Hz)
    1 x DP 1.4b (最高支持 4K@60Hz)
    1 x USB-C (最高支持 4K@60Hz 显示，支持 40Gbps 数据传输及 15W 供电)
  • COM Port:
    2 x RS-232 (DB9 接口，带 2.5KV 电压隔离)
    2 x RS-232 (可选配)
    2 x RS-422/485 with AFC (DB9 接口，带 2.5KV 隔离)
  • DIO: 1 x 12-bit(6进6出)(可选配)
  • TPM:
    Intel® PTT (Firmware TPM 2.0)
    Optional TPM module via 20-pin header (IEI TPM module P/N:TPM-IN03)
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A-key (PCIe Gen4 x1/ USB2.0)
    1 x 3042/52 B-key (PCIe Gen4 x1/ USB3.2 Gen2/ USB2.0)
    1 x On-board SIM card socket (hinge type) for M.2 B key
    1 x 2280 M-key (PCIe Gen4 x4)
  • Backplane:
    1 x PCIe Gen4 x4 (可选配)
System
Cooling method / System Fan 无风扇设计
4-pin 外部系统风扇接口
Drive Bays 1 x 2.5” SATA 6Gb/s SSD bay
Indicator&Buttons
Buttons 1 x 电源按钮
1 x 2-pin 远程电源按钮接线端子
1 x 复位按钮
1 x AT/ATX 开关
Indicators 1 x 电源指示灯
1 x 硬盘指示灯



Physical Characteristics
Construction 铝合金
Color
Color 黑色
Dimensions
Dimensions 190 (W) x 150 (D) x 81 (H) mm
Weight
Weight 1.6 / 2.4KG
Environment
工作温度 -20°C ~ 60°C (with SSD)
相对湿度 10% ~ 95%, 无凝结
Operating Vibration MIL-STD-810H 514.8C-I with SSD
Operating Shock IEC 60068-2-27 half-sine, 5G, 11ms, 100 shocks with SSD
安规&电磁 CE, FCC
OS Compatible
OS Compatible Microsoft® Windows 10 / 11, Linux

Ordering Information

DRPC-243-MTL-U7AD-R10 Embedded system with Intel® Core™ Ultra 7 155U, pre-installed 1x 16GB DDR5, HDMI/DP/USB4, 3x 2.5GbE LAN, 4x COM, 6x USB, 12~28V DC, RoHS
DRPC-243-MTL-U5AD-R10 Embedded system with Intel® Core™ Ultra 5 125U, pre-installed 1x 16GB DDR5, HDMI/DP/USB4, 3x 2.5GbE LAN, 4x COM, 6x USB, 12~28V DC, RoHS

Package Contents

  • 1 x DIN-Rail mounting kit
  • 1 x Screw pack
  • 1 x Terminal block
