DRPC-W-ASL

无风扇 DIN 导轨嵌入式系统

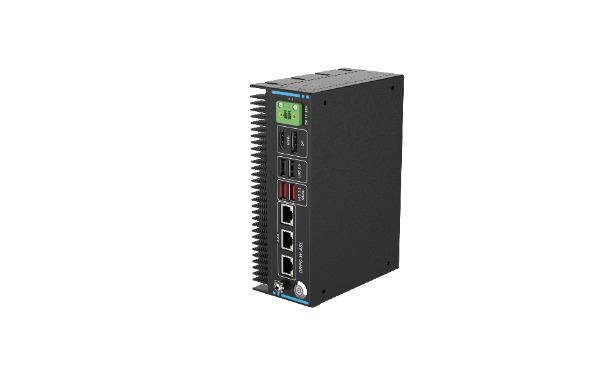

left

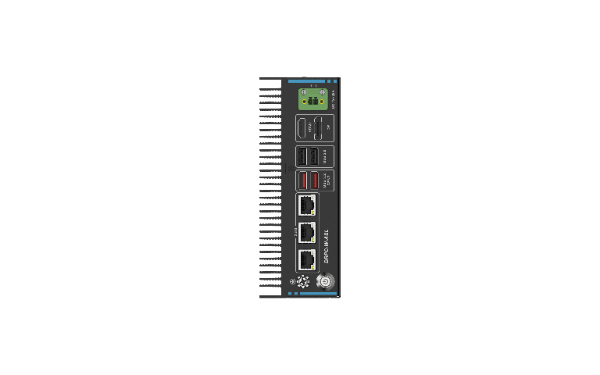

IO
  • left
  • IO
» 支持 Intel® Atom™ x7433RE/ Atom™ x7835RE/ N150 处理器
» 支持 M.2 E-key 与 M.2 M-key 扩展插槽
» 支持宽温操作
» 搭载 3 个 2.5GbE 网口，通过 Intel® I226-IT

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • 支持的 CPU：
    Intel Atom® x7433RE SoC Processor (up to 3.4GHz, 4 core, TDP 9W)
    Intel Atom® x7835RE SoC Processor (up to 3.6GHz, 8 core, TDP 12W)
    Intel® Processor N150 0.8 GHz (up to 3.60 GHz, 4 core, TDP 6W)
  • 芯片组：SoC
  • 系统内存：
    1 个 SO-DIMM 插槽，支持 DDR5 4800 MHz（预安装 8GB）（支持高达 16GB）
  • 电源：电源输入：12 ~ 28V DC (直流电)
I/O Interface
I/O Ports
  • USB:
    2 x USB 3.2 Gen 2
    2 x USB 2.0
  • 网络:
    3 x 2.5 GbE LAN via Intel® I226-IT
  • Display:
    1 x HDMI™ 1.4b (支持高达 4K@30Hz)
    1 x DP 1.4b (支持高达 4K@60Hz)
Expansion Slots
Expansion Slots
  • M.2:
    1 x M.2 E Key 2230 (PCIe Gen3 x1 & USB 2.0)
    1 x M.2 M Key 2242/2280 (PCIe Gen3 x2)
System
Cooling method / System Fan 无风扇设计
Drive Bays 1 x 2.5＂ SATA 6Gb/s SSD/HDD bay
Indicator&Buttons
Buttons 1 x 电源按钮
Physical Characteristics
Construction 铝合金



Color
Color 黑色
Dimensions
Dimensions 163mm x 116mm x 60mm
Weight
Weight 1.13Kg
Environment
工作温度 -40°C ~ 70°C (Intel Atom® x7433RE/ x7835RE)
-10°C ~ 60°C (Intel® N150)
相对湿度 10% ~ 95%, 无凝结
Operating Vibration 10-500 Hz, 1.04 Grms, random, 1 hr/axis
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis
安规&电磁 CE, FCC
OS Compatible
OS Compatible Microsoft® Windows 10 / 11, Linux

Ordering Information

DRPC-W-ASL-x7835REC-R10 Fanless System with Intel® Atom™x7835RE processor, 3 x 2.5GbE LAN, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DP, 1 x 2.5'' SATA HDD bay, DDR5 SO-DIMM 8G memory, 12-28V DC, RoHs
DRPC-W-ASL-x7433REC-R10 Fanless System with Intel® Atom™x7433RE processor, 3 x 2.5GbE LAN, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DP, 1 x 2.5'' SATA HDD bay, DDR5 SO-DIMM 8G memory, 12-28V DC, RoHs
DRPC-W-ASL-N150C-R10 Fanless System with Intel® N150 processor, 3 x 2.5GbE LAN, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DP, 1 x 2.5

Package Contents

  • 1 x DIN 导轨安装支架
  • 1 x 螺丝包
  • 1 x 凤凰端子
  • 1 x SATA 线
  • 1 x 壁挂套件
