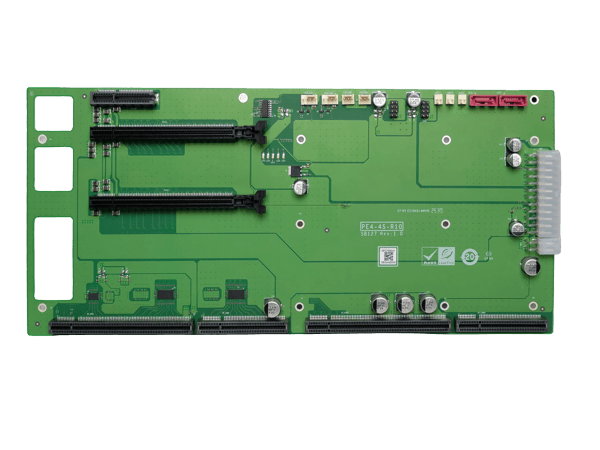

» 4-slot PICMG 1.3 backplane supporting high-performance expansion
» Dual PCIe x16 slots for accelerator integration
» Wide operating temperature range for industrial environments
Hardware Spec.
| 尺寸类型 | |
|---|---|
| 尺寸类型 | PICMG1.3 |
| 存储 | |
|---|---|
| 存储 | 2 x SATA |
| I/O 接口 | |
|---|---|
| I/O接口 | 4 x 内部 USB 2.0 : p=2.54mm |
| 扩展 | 2 x PCIe x16 (with PCIe Gen4 x8 signal) |
| 1 x PCIe x4 (with PCIe Gen4 x4 signal) | |
| 电源 | |
|---|---|
| 电源供电 | 24+4 pin ATX |
| 环境 | |
|---|---|
| 操作温度 | -10°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
