Embedded Computer

IEI 嵌入式计算机助您轻松搭建功能丰富的嵌入式系统，搭配工业、医疗、军事、交通和商业等领域应用。

产品

>

工业主板

>

单板

全长型主板

The PICMG 1.3 allows users to protect their investment in PCI (PCI-X) technology while taking advantage of the speed and increased bandwidth of PCI Express. -->Backplane Selection Table

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

PCIE-RPL-Q670

Full-size PICMG 1.3 CPU Card 支持 LGA1700 Intel® 12/13/14 代 Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI™, DP, 两个 Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS

LGA1700 socket 支持 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (高达 65W)

LGA1700 socket 支持 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (高达 65W)

两个 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs 支持高达 96GB

两个 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs 支持高达 96GB

● 独立三显
1 x Display Port 1.4 (up to 4k @60Hz) 180°
1 x Display Port 1.4 (up to 4k @60Hz) 180° (Option) (The DP interface is not plugged in. If needed, MOQ is 100.)
1 x HDMI™ (高达 4k @30Hz)

● 独立三显
1 x Display Port 1.4 (up to 4k @60Hz) 180°
1 x Display Port 1.4 (up to 4k @60Hz) 180° (Option) (The DP interface is not plugged in. If needed, MOQ is 100.)
1 x HDMI™ (高达 4k @30Hz)

● 外部 I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
● 内部 I/O Interface
4 x SATA 6Gb/s (支持RAID 0/1/5/10)
2 x RS-232/422/485 (2x5 pin, P=2.54) (RS485 支持 AFC)
4 x USB 2.0 到背板
1 x USB 3.2 Gen2 (Type A 180°)
4 x USB 3.2 Gen1 (2x10 pin P=2.00) (5Gb/s)
2 x RS-232 (2x5 pin, P=2.54)

● 外部 I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
● 内部 I/O Interface
4 x SATA 6Gb/s (支持RAID 0/1/5/10)
2 x RS-232/422/485 (2x5 pin, P=2.54) (RS485 支持 AFC)
4 x USB 2.0 到背板
1 x USB 3.2 Gen2 (Type A 180°)
4 x USB 3.2 Gen1 (2x10 pin P=2.00) (5Gb/s)
2 x RS-232 (2x5 pin, P=2.54)

PCIE-Q470

全长卡PICMG 1.3 CPU卡支持 LGA1200插槽 Intel® 第10/11代Core™ i9/i7/i5/i3，Pentium®和Celeron® 处理器，基于 Q470芯片组, 支持DDR4内存, HDMI™, 双 Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, IAUDIO 符合RoHS

CPU:
LGA1200插槽 Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组：Intel® Q470/Q470E

CPU:
LGA1200插槽 Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组：Intel® Q470/Q470E

4 x 288-pin 2933 MHz 双通道 DDR4 DIMMs ，支持多达至128G

4 x 288-pin 2933 MHz 双通道 DDR4 DIMMs ，支持多达至128G

一路显示输出
1 x HDMI™ 1.4 (高达 4096 x 2160@30Hz)

一路显示输出
1 x HDMI™ 1.4 (高达 4096 x 2160@30Hz)

● 外部 I/O 接口
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● 内部 I/O 接口
4 x SATA 6Gb/s (支持RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin)
1 x USB 3.2 Gen1 (Type A 180°)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)

● 外部 I/O 接口
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● 内部 I/O 接口
4 x SATA 6Gb/s (支持RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin)
1 x USB 3.2 Gen1 (Type A 180°)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)

16条 PCIe 信号来自CPU 通过金手指
(支持 x16, 或 x8 + x8, 或 x4 + x4 + x8)
4条 PCIe 信号来自 PCH通过金手指
(支持一个 x4, 或四个 x1)
通过BIOS进行配置
4条 PCI 信号通过金手指
1 x M.2 A Key (2230) (基于PCIe Gen3 x2/USB 2.0信号)
1 x M.2 B Key (3042/3052/2280) w/ SIM holder (基于 PCIe Gen3 x2信号)
1 x M.2 M Key (2280/2242) (基于PCIe Gen3 x4信号)

16条 PCIe 信号来自CPU 通过金手指
(支持 x16, 或 x8 + x8, 或 x4 + x4 + x8)
4条 PCIe 信号来自 PCH通过金手指
(支持一个 x4, 或四个 x1)
通过BIOS进行配置
4条 PCI 信号通过金手指
1 x M.2 A Key (2230) (基于PCIe Gen3 x2/USB 2.0信号)
1 x M.2 B Key (3042/3052/2280) w/ SIM holder (基于 PCIe Gen3 x2信号)
1 x M.2 M Key (2280/2242) (基于PCIe Gen3 x4信号)

SPCIE-C246

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI™, DP, Dual Intel® PCIe GbE, USB 3.1 Gen 1, SATA 6Gb/s, M.2, HD Audio, Intel® AMT and RoHS

‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246

‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246

Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC

Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC

‧Dual display supported:
1 x HDMI™ (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz)

‧Dual display supported:
1 x HDMI™ (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz)

‧External I/O Interface:
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°)
‧Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)

‧External I/O Interface:
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°)
‧Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)

‧Expansion:
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

‧Expansion:
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

PCIE-Q370

全尺寸 PICMG 1.3 CPU 卡支持 LGA1151 Intel® Core™ i9/i7/i5/i3/ Pentium®/Celeron® CPU per Intel® Q370, DDR4, VGA/HDMI™ and DP, 双 Intel® PCIe GbE, USB 3.1, SATA 6Gb/s, M.2, HD 音频, iAMT 和 RoHS

● CPU
LGA1151 socket 支持第八/九代 Intel® Core® i9/i7/i5/i3, Pentium® 或 Celeron® 处理器
● 芯片组
Intel® Q370

● CPU
LGA1151 socket 支持第八/九代 Intel® Core® i9/i7/i5/i3, Pentium® 或 Celeron® 处理器
● 芯片组
Intel® Q370

四个 288-pin 2666MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs 支持高达 64GB

四个 288-pin 2666MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs 支持高达 64GB

支援双显
» PCIE-Q370-R11
1 x VGA (高达 1920 x 1080@60Hz)
1 x Internal DP (高达 4096 x 2304@60Hz)
» PCIE-Q370-HDMI™-R11**
1 x HDMI™ (高达 4096 x 2304@30Hz)
1 x Internal DP (高达 4096 x 2304@60Hz)

支援双显
» PCIE-Q370-R11
1 x VGA (高达 1920 x 1080@60Hz)
1 x Internal DP (高达 4096 x 2304@60Hz)
» PCIE-Q370-HDMI™-R11**
1 x HDMI™ (高达 4096 x 2304@30Hz)
1 x Internal DP (高达 4096 x 2304@60Hz)

● 外部 I/O 接口
2 x USB 3.0 (后置 IO type A)
1 x USB 2.0 (Type A 180°)
● 内部 I/O 接口
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (支持 RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)

● 外部 I/O 接口
2 x USB 3.0 (后置 IO type A)
1 x USB 2.0 (Type A 180°)
● 内部 I/O 接口
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (支持 RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)

● 扩展
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via 金手指
4 x PCI signal via 金手指

● 扩展
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via 金手指
4 x PCI signal via 金手指

PCIE-Q170

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q170

LGA 1151 socket 支持 Intel® 第6/7代 Core™ i7/i5/i3，Pentium® 或 Celeron® processor + Intel® Q170

LGA 1151 socket 支持 Intel® 第6/7代 Core™ i7/i5/i3，Pentium® 或 Celeron® processor + Intel® Q170

四个 288-pin 1867/2133MHz 双通道 DDR4 SDRAM 无缓冲 DIMM 支持高达64GB

四个 288-pin 1867/2133MHz 双通道 DDR4 SDRAM 无缓冲 DIMM 支持高达64GB

1 x VGA(via Chrontel CH7517A，高达1920x1200@60Hz)
1 x iDP 接口用于 HDMI™、LVDS、VGA、DVI 和 DisplayPort(高达3840x2160@60Hz)

1 x VGA(via Chrontel CH7517A，高达1920x1200@60Hz)
1 x iDP 接口用于 HDMI™、LVDS、VGA、DVI 和 DisplayPort(高达3840x2160@60Hz)

1 x 6-pin wafer，用于 KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (Q170 支持 RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)

1 x 6-pin wafer，用于 KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (Q170 支持 RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)

WSB-H810

Full-size PICMG 1.0 CPU Card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81,

Intel® H81
LGA1150

Intel® H81
LGA1150

Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

4 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 2.0
1 x VGA

4 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 2.0
1 x VGA

PCIE-H810

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81

Intel® H81
LGA1150

Intel® H81
LGA1150

Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB

Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB

Display Output :
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

Display Output :
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0

2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0

半长型主板

IEI offers ISA, PCISA, PCI and PICOe half size CPU cards. (PICOe = PCI + PCIe x4) The benefits of PICOe : *Same dimension, backwards compatible but half the size of PCI SBC. *Higher performance as PCI only solution for the same price. -->Backplane Selection Table

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

HPCIE-RPL-Q670

Half-size PICMG 1.3 CPU Card 支持 LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI™, DP, 两个 Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS

CPU:
LGA1700 socket 支持 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (高达 65W)

CPU:
LGA1700 socket 支持 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (高达 65W)

两个 262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs, 高达 96GB

两个 262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs, 高达 96GB

独立双显
1 x interface DP (up to 4k @60Hz) 180° (DP++)
1 x HDMI™ (up to 4k @30Hz)

独立双显
1 x interface DP (up to 4k @60Hz) 180° (DP++)
1 x HDMI™ (up to 4k @30Hz)

● 外部 I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
● 内部 I/O Interface
2 x SATA 6Gb/s (支持RAID 0/1/5/10)
2 x RS-232/422/485 (2x5 pin, P=2.00) (RS485 支持 AFC)
4 x USB 2.0 (2x4 pin, P=2.54)
1 x USB 3.2 Gen2 (Type A 180°)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)

● 外部 I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
● 内部 I/O Interface
2 x SATA 6Gb/s (支持RAID 0/1/5/10)
2 x RS-232/422/485 (2x5 pin, P=2.00) (RS485 支持 AFC)
4 x USB 2.0 (2x4 pin, P=2.54)
1 x USB 3.2 Gen2 (Type A 180°)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)

PICOe-EHL

Half-size PCIe CPU card 支持板载 SoC Intel® Elkhart Lake Celeron® J6412 处理器，默认板载 8GB LPDDR4x 内存、DDR4、HDMI™、iDPM 显示模块、双网口、USB 3.2、SATA 6Gb/s、M.2、HD 音频和 RoHS。

Half-size PCIe CPU card 支持板载 SoC Intel® Elkhart Lake Celeron® J6412 处理器，默认板载 8GB LPDDR4x 内存、DDR4、HDMI™、iDPM 显示模块、双网口、USB 3.2、SATA 6Gb/s、M.2、HD 音频和 RoHS。

Half-size PCIe CPU card 支持板载 SoC Intel® Elkhart Lake Celeron® J6412 处理器，默认板载 8GB LPDDR4x 内存、DDR4、HDMI™、iDPM 显示模块、双网口、USB 3.2、SATA 6Gb/s、M.2、HD 音频和 RoHS。

LPDDR4x-3200Gbps 8GB，内存上限 16GB

LPDDR4x-3200Gbps 8GB，内存上限 16GB

● 独立双显
1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

● 独立双显
1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● 内部I/O接口：
2 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● 内部I/O接口：
2 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

1 x M.2 M Key (2242/2280, PCIe x2)
1 x PCIe x4 slot (1 x PCIe x4 or 4 x PCIe x1)
4 x PCI slot

1 x M.2 M Key (2242/2280, PCIe x2)
1 x PCIe x4 slot (1 x PCIe x4 or 4 x PCIe x1)
4 x PCI slot

HPCIE-Q470

半尺寸 PICMG 1.3 CPU 卡支持第10/11代 Intel® Core™ i9/i7/i5/i3, Pentium® 和 Celeron® 处理器, 基于 Intel® Q470芯片组,支持 SO-DIMM DDR4, HDMI™, 双2.5 GbE, USB 3.2 Gen2, SATA 6Gb/s, M.2, IAUDIO, 符合RoHS

CPU:
LGA1200插槽 Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组：Intel® Q470/Q470E

CPU:
LGA1200插槽 Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组：Intel® Q470/Q470E

2 x 260-pin 2933 MHz 双通道 DDR4 SO-DIMMs，支持多达至64G

2 x 260-pin 2933 MHz 双通道 DDR4 SO-DIMMs，支持多达至64G

一路显示输出
1 x HDMI™ 1.4 (高达 4096 x 2160@30Hz)

一路显示输出
1 x HDMI™ 1.4 (高达 4096 x 2160@30Hz)

● 外部 I/O 接口
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● 内部 I/O 接口
2 x SATA 6Gb/s (支持RAID 0/1)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 支持 AFC)

● 外部 I/O 接口
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● 内部 I/O 接口
2 x SATA 6Gb/s (支持RAID 0/1)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 支持 AFC)

16条 PCIe信号来自CPU通过金手指
(支持 x16, 或 x8 + x8, 或 x4 + x4 + x8)
4条 PCIe信号来自PCH通过金手指
(支持一个 x4, 或四个 x1)
1 x M.2 A key (2230) (基于PCIe Gen3 x2/USB 2.0信号)
1 x M.2 M key (2280/2242) (基于PCIe Gen3 x4信号)

16条 PCIe信号来自CPU通过金手指
(支持 x16, 或 x8 + x8, 或 x4 + x4 + x8)
4条 PCIe信号来自PCH通过金手指
(支持一个 x4, 或四个 x1)
1 x M.2 A key (2230) (基于PCIe Gen3 x2/USB 2.0信号)
1 x M.2 M key (2280/2242) (基于PCIe Gen3 x4信号)

PCISA-BT

Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA

On Board

On Board

One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)

One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)

Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)

Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)

1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x SMBus
1 x USB 2.0
1 x USB 3.0
1 x VGA

1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x SMBus
1 x USB 2.0
1 x USB 3.0
1 x VGA

背板

IEI offers PEMUX PICMG1.3, PICMG 1.0, PCI/PCI EXPRESS, PCISA and ISA backplane. --> Backplane Selection Table

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

HPE2-3S1

1* PCIE x16 slot from CPU
1* PCIE x4 slot from PCH

1* PCIE x16 slot from CPU
1* PCIE x4 slot from PCH

1* ATX power connector (20pin)
1* IOPWR (20 pin)
1* SM BUS connector (2 pin)
1* PWRGD connector (2 pin)
1* Reset connector (2 pin)
1* PWRBTN connector (2 pin)
2* Fan connector (3 pin)
1* ATXCTL connector (3 pin)
Power LED

1* ATX power connector (20pin)
1* IOPWR (20 pin)
1* SM BUS connector (2 pin)
1* PWRGD connector (2 pin)
1* Reset connector (2 pin)
1* PWRBTN connector (2 pin)
2* Fan connector (3 pin)
1* ATXCTL connector (3 pin)
Power LED

PXE-11S1

PICMG 1.3 无源背板

1 x PCIe x16 (x8 信号)
1 x PCIe x1
3 x PCIe x4 (x4 信号)
1 x PCIe x4 (x2 信号)
4 x PCI Slots
1 x M.2 A key

1 x PCIe x16 (x8 信号)
1 x PCIe x1
3 x PCIe x4 (x4 信号)
1 x PCIe x4 (x2 信号)
4 x PCI Slots
1 x M.2 A key

PXE-14S1

PICMG 1.3 无源背板

1 x PCIe x16（Gen3 x16 信号）
12 x PCI

1 x PCIe x16（Gen3 x16 信号）
12 x PCI

SPXE-11S

IEI Server Grade Backplane Solution, PICMG 1.3 Backplane for 4U rack-mount chassis

采用 2 x PCIe x4 CPU
采用 1 x PCIe x4 PCH
插槽类型：X4信号和X16插槽
采用3 x PCIE x4 CPU via PLX8724
插槽类型：X4信号和X16插槽
采用 4 x PCI CPU card

采用 2 x PCIe x4 CPU
采用 1 x PCIe x4 PCH
插槽类型：X4信号和X16插槽
采用3 x PCIE x4 CPU via PLX8724
插槽类型：X4信号和X16插槽
采用 4 x PCI CPU card

2 x ATX电源连接器(24pin+4pin)
电源LED
1 x IOPWR(20 pin)
1 x SM总线连接器(2 pin)
1 x PWRGD连接器(2 pin)
1 x 复位连接器(2 pin)
1 x PWRBTN连接器(2 pin)
4 x 风扇连接器(3 pin)
1 x ATXCTL连接器(3 pin)
安装孔与PCI-14S兼容

2 x ATX电源连接器(24pin+4pin)
电源LED
1 x IOPWR(20 pin)
1 x SM总线连接器(2 pin)
1 x PWRGD连接器(2 pin)
1 x 复位连接器(2 pin)
1 x PWRBTN连接器(2 pin)
4 x 风扇连接器(3 pin)
1 x ATXCTL连接器(3 pin)
安装孔与PCI-14S兼容

HPXE2-8S1

8-slot PICMG 1.3 backplane for half-size SBC, with four PCI

PCIe x 8：2
PCI插槽：4

PCIe x 8：2
PCI插槽：4

BP-3S

3-slot backplane with three ISA slots

ISA 插槽:3

ISA 插槽:3

BP-4S

4-slot backplane with four ISA slots

ISA 插槽:4

ISA 插槽:4

BP-6S

6-slot backplane with six ISA slots

ISA 插槽:6

ISA 插槽:6

BP-8S

8-slot backplane with eight ISA slots

ISA 插槽:8

ISA 插槽:8

BP-10S

10-slot backplane with ten ISA slots

ISA 插槽:10

ISA 插槽:10

HPE-3S2

3-slot backplane with one PCI slot and one PCIe x4 slot

PCIe x 4:1
PCI 插槽:2

PCIe x 4:1
PCI 插槽:2

IP-3S

3-slot backplane with two PCI slots

PCI 插槽:2

PCI 插槽:2

IP-5SA2

5-slot backplane with four PCI slots

PCI 插槽:4

PCI 插槽:4

IP-6S

6-slot backplane with three PCI slots and two ISA slots

PCI 插槽:3
ISA 插槽:2

PCI 插槽:3
ISA 插槽:2

IP-10S

10-slot backplane with four PCI slots and five ISA slots

PCI 插槽:4
ISA 插槽:5

PCI 插槽:4
ISA 插槽:5

HPE-4S2

4-slot backplane with two PCI slots and one PCIe x4 slot

PCIe x 4:1
PCI 插槽:2

PCIe x 4:1
PCI 插槽:2

HPE-5S1

5-slot backplane with four PCI slots

PCI 插槽:4

PCI 插槽:4

HPE-6S1

6-slot backplane with four PCI slots and one PCIe x4 slot

PCIe x 4:1
PCI 插槽:4

PCIe x 4:1
PCI 插槽:4

HPE-8S0

7-slot backplane with four PCI slots and two PCIe x1 slots

PCIe x 1:2
PCI 插槽:4

PCIe x 1:2
PCI 插槽:4

PCI-5SD6

2U chassis backplane with four PCI slots

PCI 插槽:L2+R2

PCI 插槽:L2+R2

PCI-6SD

2U chassis backplane with two PCI slots and two ISA slots

PCI 插槽:L1+R1
ISA 插槽:L1+R1

PCI 插槽:L1+R1
ISA 插槽:L1+R1

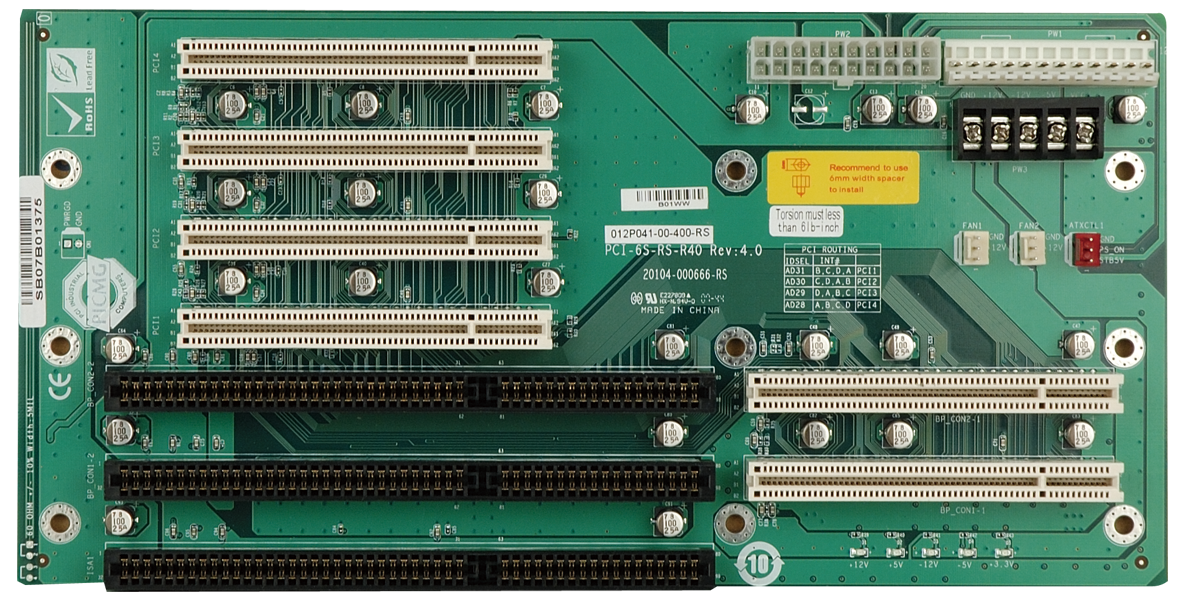

PCI-6S

6-slot backplane with four PCI slots and two ISA slots

PCI 插槽:4
ISA 插槽:2

PCI 插槽:4
ISA 插槽:2

PCI-7S

7-slot backplane with four PCI slots and three ISA slots

PCI 插槽:4
ISA 插槽:3

PCI 插槽:4
ISA 插槽:3

PCI-10S

10-slot backplane with four PCI slots and five ISA slots

PCI 插槽:4
ISA 插槽:5

PCI 插槽:4
ISA 插槽:5

PCI-12S

12-slot backplane with four PCI slots and seven ISA slots

PCI 插槽:4
ISA 插槽:7

PCI 插槽:4
ISA 插槽:7

PCI-14S

14-slot backplane with four PCI slots and nine ISA slots

PCI 插槽:4
ISA 插槽:9

PCI 插槽:4
ISA 插槽:9

PXE-13S

13-slot backplane with one PCIe x16 slot, three PCIe x1 slots and eight PCI slots

PCIe x 16:1
PCIe x 1:3
PCI 插槽:8

PCIe x 16:1
PCIe x 1:3
PCI 插槽:8

PE-2SD1

2-slot backplane with one PCIe slot

PCIe x 16:1

PCIe x 16:1

PE-4S

4-slot backplane with one PCIe x16 slot, one PCIe x4 slot and one PCI slot

PCIe x 16:1
PCIe x 4:1
PCI 插槽:1

PCIe x 16:1
PCIe x 4:1
PCI 插槽:1

PE-5S

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots RACK-500G 5U 5-slot full-size

PCIe x 16:1
PCIe x 4:1
PCI 插槽:2

PCIe x 16:1
PCIe x 4:1
PCI 插槽:2

PE-5S2

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots

PCIe x 16:1
PCIe x 1:3

PCIe x 16:1
PCIe x 1:3

PE-6S

6-slot backplane with one PCIe x16 slot, two PCIe x1 slots and two PCI slots

PCIe x 16:1
PCIe x 1:2
PCI 插槽:2

PCIe x 16:1
PCIe x 1:2
PCI 插槽:2

PE-6S2

6-slot backplane with one PCIe x16 slot, one PCIe x4 slot and three PCI slots

PCIe x 16:1
PCIe x 4:1
PCI 插槽:3

PCIe x 16:1
PCIe x 4:1
PCI 插槽:3

PE-6SD

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots

PCIe x 16:1
PCIe x 1:3

PCIe x 16:1
PCIe x 1:3

PE-6SD3

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots

PCIe x 16:1
PCIe x 4:1
PCIe x 1:3
PCI 插槽:2

PCIe x 16:1
PCIe x 4:1
PCIe x 1:3
PCI 插槽:2

PE-7S

7-slot backplane with one PCIe x16 slot, two PCIe x1 slots and three PCI slots

PCIe x 16:1
PCIe x 1:2
PCI 插槽:3

PCIe x 16:1
PCIe x 1:2
PCI 插槽:3

PE-8S

8-slot backplane with one PCIe x16 slots, three PCIe x1 slots and three PCI slots

PCIe x 16:1
PCIe x 1:3
PCI 插槽:3

PCIe x 16:1
PCIe x 1:3
PCI 插槽:3

PE-9S

9-slot backplane with one PCIe x16 slot, four PCIe x1 slots and three PCI slots

PCIe x 16:1
PCIe x 1:4
PCI 插槽:3

PCIe x 16:1
PCIe x 1:4
PCI 插槽:3

PE-10S

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots

PCIe x 16:1
PCIe x 1:4
PCI 插槽:4

PCIe x 16:1
PCIe x 1:4
PCI 插槽:4

PE-10S2

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots

PCIe x 16:1
PCIe x 1:4
PCI 插槽:4

PCIe x 16:1
PCIe x 1:4
PCI 插槽:4

SPE-6S

6-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,5 PCIe x4,RoHS

PCIe x 4:5

PCIe x 4:5

SPE-9S

7-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slots,3 PCIe x4,3 PCI,RoHS

PCIe x 8:1
PCIe x 4:3
PCI 插槽:3

PCIe x 8:1
PCIe x 4:3
PCI 插槽:3

SPXE-14S

14-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slot,12 PCIe x1,RoHS

PCIe x 8:1
PCIe x 1:12

PCIe x 8:1
PCIe x 1:12

HPXE2-5S1

5-slot PICMG 1.3 backplane for half-size SBC, with two PCI slots and one PCIe x16 slot (x16 signal)

PCIe x 16:1
PCI 插槽:2

PCIe x 16:1
PCI 插槽:2

工业级主板

IEI industrial motherboard series including ATX, Micro-ATX and Mini-ITX motherboards. With multifunctional and high performance features, IEI industrial motherboard series are suited to applications in POS, KIOSK, vending machine, healthcare industry, etc.

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

IMB-AM5

micro-ATX 主板支持 AMD 7000&8000G PHX1 系列处理器、DDR5、三重独立显示器、双 2.5GbE LAN、M.2、USB 3.2、SATA 6Gb/s、HD Audio 和 RoHS

● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 系列台式机处理器

● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 系列台式机处理器

支持四个 288-pin 5200 MHz 双通道 DDR5 SDRAM 无缓冲 DIMM，最高支持192GB

支持四个 288-pin 5200 MHz 双通道 DDR5 SDRAM 无缓冲 DIMM，最高支持192GB

● 独立三显
1 x DP (高达 4096 x 2304@60Hz)
2 x HDMI™ (高达 4096 x 2304@30Hz)

● 独立三显
1 x DP (高达 4096 x 2304@60Hz)
2 x HDMI™ (高达 4096 x 2304@30Hz)

● 外部 I/O 接口
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
1 x RS-232/422/485 (RS-485 支持 AFC)
● 内部 I/O 接口
1 x RS-232/422/485 (RS-485 支持 AFC) (2x5 pin, P=2.54)
4 x SATA 6Gb/s
4 x RS-232 (2x5 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.54)

● 外部 I/O 接口
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
1 x RS-232/422/485 (RS-485 支持 AFC)
● 内部 I/O 接口
1 x RS-232/422/485 (RS-485 支持 AFC) (2x5 pin, P=2.54)
4 x SATA 6Gb/s
4 x RS-232 (2x5 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.54)

1 x PCIe x16 (Slot1) with x8 Signal Gen4
2 x PCIe x4 open-end (Slot3 & 4) Gen4 (Ryzen™ 8000G PHX1 将不能使用 slot3)
1 x PCIe x1 (Slot 2, PCIe Gen4 x1 signal)
1 x M.2 M Key (2242/2280, PCIe x4) NVMe support (Ryzen™ 8000G PHX1 将不不能使用)
1 x M.2 M Key (2242/2280, PCIe x2) NVMe support (NVME RAID 0/1 support)

1 x PCIe x16 (Slot1) with x8 Signal Gen4
2 x PCIe x4 open-end (Slot3 & 4) Gen4 (Ryzen™ 8000G PHX1 将不能使用 slot3)
1 x PCIe x1 (Slot 2, PCIe Gen4 x1 signal)
1 x M.2 M Key (2242/2280, PCIe x4) NVMe support (Ryzen™ 8000G PHX1 将不不能使用)
1 x M.2 M Key (2242/2280, PCIe x2) NVMe support (NVME RAID 0/1 support)

IMB-MTL

micro-ATX motherboard 支持 14th Gen. Intel® mobile Meteor Lake-H on-board 处理器, DDR5, 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio 和 RoHS

● CPU:
14th Gen. Intel® mobile Meteor Lake-H on-board 处理器

● CPU:
14th Gen. Intel® mobile Meteor Lake-H on-board 处理器

2 x 262-pin 5600 MHz DDR5 SO-DIMM, 支持高达 96GB

2 x 262-pin 5600 MHz DDR5 SO-DIMM, 支持高达 96GB

● 外部 I/O 接口
2 x USB 3.2 Gen 2 (10Gb/s)
4 x USB 2.0
● 内部 I/O 接口
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

● 外部 I/O 接口
2 x USB 3.2 Gen 2 (10Gb/s)
4 x USB 2.0
● 内部 I/O 接口
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

1 x PCIe Gen5 x8 Slot
3 x PCIe Gen4 x4
1 x M.2 B key 3080 (用于 IRIS2-2600)
1 x M.2 M key 2280 (PCIe Gen4 x2)

1 x PCIe Gen5 x8 Slot
3 x PCIe Gen4 x4
1 x M.2 B key 3080 (用于 IRIS2-2600)
1 x M.2 M key 2280 (PCIe Gen4 x2)

IMB-V3000

micro-ATX motherboard 支持 AMD V3000 系列处理器, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio 和 RoHS

CPU:
AMD V3000 Series Processors

CPU:
AMD V3000 Series Processors

两个 288-pin 4800 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs 支持高达 96GB

两个 288-pin 4800 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs 支持高达 96GB

● 外部 I/O 接口
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 支持 AFC)
1 x RJ45 for IRIS2-2600(F830)
● 内部 I/O 接口
2 x SATA 6Gb/s (RAID 0/1 supported)
4 x RS-232 (2x5 pin, P=2.54)

● 外部 I/O 接口
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 支持 AFC)
1 x RJ45 for IRIS2-2600(F830)
● 内部 I/O 接口
2 x SATA 6Gb/s (RAID 0/1 supported)
4 x RS-232 (2x5 pin, P=2.54)

1 x PCIe x16 (Slot1) with x8 Signal Gen4
1 x PCIe Gen4 x4 open-end
2 x PCIe Gen4 x1
1 x M.2 M Key (2242/2280, PCIe Gen4 x1 ) 支持NVMe
1 x M.2 B Key (2242/2280, PCIe Gen4 x1 ) 支持NVMe (IPMI)

1 x PCIe x16 (Slot1) with x8 Signal Gen4
1 x PCIe Gen4 x4 open-end
2 x PCIe Gen4 x1
1 x M.2 M Key (2242/2280, PCIe Gen4 x1 ) 支持NVMe
1 x M.2 B Key (2242/2280, PCIe Gen4 x1 ) 支持NVMe (IPMI)

IMBA-AM5

ATX 主板支持 AMD 7000&8000G PHX1 系列处理器、DDR5、三重独立显示器、双 2.5GbE LAN、M.2、USB 3.2、SATA 6Gb/s、HD Audio 和 RoHS

CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 系列台式机处理器

CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 系列台式机处理器

支持四个 288-pin 5200 MHz 双通道 DDR5 SDRAM 无缓冲 DIMM，支持高达 128GB

支持四个 288-pin 5200 MHz 双通道 DDR5 SDRAM 无缓冲 DIMM，支持高达 128GB

独立三显:
1 x DP (高达 4096 x 2304@60Hz)
2 x HDMI™ (高达 4096 x 2304@30Hz)

独立三显:
1 x DP (高达 4096 x 2304@60Hz)
2 x HDMI™ (高达 4096 x 2304@30Hz)

● 外部 I/O 接口
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
1 x RS-232/422/485 (RS-485 支持 AFC)
● 内部 I/O 接口
2 x USB2.0 (2x4 pin, P=2.54)
1 x RS-232/422/485 (RS-485 支持 AFC) (2x5 pin, P=2.54)
2 x USB 3.2 Gen1 (2 x 10 pin) (5Gb/s)
4 x SATA 6Gb/s (支持RAID 0/1/10 )
4 x RS-232 (2x5 pin, P=2.54)

● 外部 I/O 接口
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
1 x RS-232/422/485 (RS-485 支持 AFC)
● 内部 I/O 接口
2 x USB2.0 (2x4 pin, P=2.54)
1 x RS-232/422/485 (RS-485 支持 AFC) (2x5 pin, P=2.54)
2 x USB 3.2 Gen1 (2 x 10 pin) (5Gb/s)
4 x SATA 6Gb/s (支持RAID 0/1/10 )
4 x RS-232 (2x5 pin, P=2.54)

1 x PCIe Gen4 x16 (Slot1) 带有 x16 信号（ Ryzen8000G PHX1 只有 x8 信号）
2 x PCIe Gen4 x4 开放式
4 x PCIe Gen4 x1开放式
1 x M.2 M Key (2242/2280, PCIe Gen4 x2) 支持NVMe

1 x PCIe Gen4 x16 (Slot1) 带有 x16 信号（ Ryzen8000G PHX1 只有 x8 信号）
2 x PCIe Gen4 x4 开放式
4 x PCIe Gen4 x1开放式
1 x M.2 M Key (2242/2280, PCIe Gen4 x2) 支持NVMe

IMBAX-SP6

Server grade ATX motherboard, supports AMD SP6 Siena 8-64 cores, 70W-225W TDP ,DDR5, 4 x 2.5GbE LAN, 4 x M.2 slot, RoHS

AMD EPYC™ 8004 Series Processors

AMD EPYC™ 8004 Series Processors

6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC, up to 576GB in total

6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC, up to 576GB in total

1 x DP1.1a (1920 x 1080)

1 x DP1.1a (1920 x 1080)

● 1 x GbE RJ45 IPMI management port
● 1 x RJ45 (RS232 LAN Console Port)
● 4 x 2.5G (I225-LM / I226-LM) Base-T LAN Ports
● 4 x USB 3.2 Gen1 (Type-A) (5Gb/s)

● 1 x GbE RJ45 IPMI management port
● 1 x RJ45 (RS232 LAN Console Port)
● 4 x 2.5G (I225-LM / I226-LM) Base-T LAN Ports
● 4 x USB 3.2 Gen1 (Type-A) (5Gb/s)

ATX motherboard supports AMD SP6 PYC™ 8004 8-64 cores, 70W-225W TDP ,DDR5, 4 x 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, RoHS

ATX motherboard supports AMD SP6 PYC™ 8004 8-64 cores, 70W-225W TDP ,DDR5, 4 x 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, RoHS

KINO-ADL-N

Mini-ITX SBC with Intel® Alder Lake-N SoC Processor, DDR5 SO-DIMM, 12~28V DC input, 独立三显, Intel 2.5GbE, M.2, RoHS

● CPU:
Intel® Alder Lake-N SoC Processor

● CPU:
Intel® Alder Lake-N SoC Processor

1 x 262-pin 4800 MHz DDR5 SO-DIMM

1 x 262-pin 4800 MHz DDR5 SO-DIMM

● 独立三显
1 x DP 1.4 4k@60Hz
2 x HDMI 1.4 4k@30Hz

● 独立三显
1 x DP 1.4 4k@60Hz
2 x HDMI 1.4 4k@30Hz

● 外部 I/O 接口
2 x USB 3.2 Gen 2 (10Gb/s)
2 x USB 2.0
● 内部 I/O 接口
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
1 x USB 3.2 (Type A, 180°) (只支持 embedded CPU)

● 外部 I/O 接口
2 x USB 3.2 Gen 2 (10Gb/s)
2 x USB 2.0
● 内部 I/O 接口
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
1 x USB 3.2 (Type A, 180°) (只支持 embedded CPU)

KINO-AH420

Mini-ITX SBC 支持 LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® 和 Pentium® processor, DDR4, 双重独立显示, 两个 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio 和 RoHS

CPU:
LGA1200 socket 支持 10th Generation Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 处理器

CPU:
LGA1200 socket 支持 10th Generation Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 处理器

两个 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs 高达 64GB

两个 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs 高达 64GB

双重独立显示
2 x HDMI™ (up to 4096 x 2160@30Hz)

双重独立显示
2 x HDMI™ (up to 4096 x 2160@30Hz)

● 外部 I/O Interface
2 x RS-232 (DB-9)
2 x USB 2.0 (Type-A)
4 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
● 内部 I/O Interface
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)

● 外部 I/O Interface
2 x RS-232 (DB-9)
2 x USB 2.0 (Type-A)
4 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
● 内部 I/O Interface
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)

1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) (PCIe Gen 3 x2 /USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) (PCIe Gen 3 x2 /USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

KINO-AM5

Mini-ITX SBC 支持 AMD Ryzen™ 7000 & 8000G 系列处理器, DDR5 SO-DIMM, 三重独立显示, 支持双 Intel 2.5GbE, USB3.2, M.2, RoHS

● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 系列台式机处理器

● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 系列台式机处理器

支持两个 262-pin 5200 MHz 双通道 DDR5 SDRAM 无缓冲 DIMM，支持高达 64GB

支持两个 262-pin 5200 MHz 双通道 DDR5 SDRAM 无缓冲 DIMM，支持高达 64GB

● 独立三显
1 x DP (高达 4096 x 2304@60Hz)
2 x HDMI (高达 4096 x 2304@30Hz)

● 独立三显
1 x DP (高达 4096 x 2304@60Hz)
2 x HDMI (高达 4096 x 2304@30Hz)

● 外部 I/O 接口
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
1 x RS-232/422/485
● 内部 I/O 接口
2 x SATA 6Gb/s
1 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.0)

● 外部 I/O 接口
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
1 x RS-232/422/485
● 内部 I/O 接口
2 x SATA 6Gb/s
1 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.0)

1 x PCIe x16 (Slot1) 带有 Gen4 x16 信号 (Ryzen8000G PHX1 只有 x8 信号, PHX2 只有 x4 信号)
1 x 2280 M.2 M key (PCIe Gen4 x4)
1 x 2230 M.2 A key (PCIe Gen3 x1 & USB 2.0) (Ryzen8000G PHX2 将禁用A key)

1 x PCIe x16 (Slot1) 带有 Gen4 x16 信号 (Ryzen8000G PHX1 只有 x8 信号, PHX2 只有 x4 信号)
1 x 2280 M.2 M key (PCIe Gen4 x4)
1 x 2230 M.2 A key (PCIe Gen3 x1 & USB 2.0) (Ryzen8000G PHX2 将禁用A key)

KINO-ADL-P

Mini-ITX SBC with Intel® Alder Lake-P/Raptor Lake-P SoC 处理器, DDR4 SO-DIMM, 12~28V DC 输入, 独立三显, 三路 Intel® 2.5GbE 网口, USB 3.2, SATA 6Gb/s, 符合 RoHS

● CPU:
Intel® 12/13th mobile Alder Lake-P/Raptor Lake-P 处理器, 支持 Intel® Core™ i9/i7/i5/i3/ 和 Celeron® CPU

● CPU:
Intel® 12/13th mobile Alder Lake-P/Raptor Lake-P 处理器, 支持 Intel® Core™ i9/i7/i5/i3/ 和 Celeron® CPU

2 x 260-pin Dual-Channel 3200 MHz DDR4 SO-DIMMs, 内存上限为 64GB

2 x 260-pin Dual-Channel 3200 MHz DDR4 SO-DIMMs, 内存上限为 64GB

● 独立三显
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

● 独立三显
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

● 外部I/O接口：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x RS-232/422/485
● 内部I/O接口：
2 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

● 外部I/O接口：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x RS-232/422/485
● 内部I/O接口：
2 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

1 x PCIe Gen3 x4 Slot Open-ended
1 x M.2 E Key for WIFI & BT 2230(PCIe Gen3 x1 & USB 2.0)
1 x M.2 B key 3042 (PCIe Gen3 x2/USB2.0)
1 x M.2 M key 2280 (PCIe Gen3 x4)

1 x PCIe Gen3 x4 Slot Open-ended
1 x M.2 E Key for WIFI & BT 2230(PCIe Gen3 x1 & USB 2.0)
1 x M.2 B key 3042 (PCIe Gen3 x2/USB2.0)
1 x M.2 M key 2280 (PCIe Gen3 x4)

KINO-ADLPS

Mini-ITX SBC support Intel® Alder Lake-PS Core™ i7/i5/i3 和 Celeron® processor, DDR4 SO-DIMM, DP, HDMI™ and iDPM 支持三重独立显示, SATA, 两个 Intel 2.5GbE, USB3.2, M.2, RoHS

● CPU:
Intel® Alder Lake-PS Core™ i7/i5/i3 和 Celeron® 处理器

● CPU:
Intel® Alder Lake-PS Core™ i7/i5/i3 和 Celeron® 处理器

两个 3200 MHz DDR4 SO-DIMMs

两个 3200 MHz DDR4 SO-DIMMs

● 独立三显
1 x DP 1.4 (高达 4096 x 2304 @60Hz)
1 x HDMI™ 2.0 (高达 4096 x 2304 @60Hz)
1 x iDPM 支持 iEi eDP/LVDS/VGA 模块

● 独立三显
1 x DP 1.4 (高达 4096 x 2304 @60Hz)
1 x HDMI™ 2.0 (高达 4096 x 2304 @60Hz)
1 x iDPM 支持 iEi eDP/LVDS/VGA 模块

● 外部 I/O 接口
2 x RS232/422/485 via DB-9 (RS-485 support AFC)
2 x USB 2.0 (Type A)
4 x USB 3.2 Gen 2 (Type A) (10Gb/s)
● 内部 I/O 接口
1 x SATA 6Gb/s
2 x USB 2.0(2x4 pin, P=2.00)
4 x RS-232 (2x5 pin, p=2.00)

● 外部 I/O 接口
2 x RS232/422/485 via DB-9 (RS-485 support AFC)
2 x USB 2.0 (Type A)
4 x USB 3.2 Gen 2 (Type A) (10Gb/s)
● 内部 I/O 接口
1 x SATA 6Gb/s
2 x USB 2.0(2x4 pin, P=2.00)
4 x RS-232 (2x5 pin, p=2.00)

1 x PCIe Gen3 x4 (x4 & x2 + x2 & x2 + x1 + x1)
1 x M.2 A Key for WIFI & BT 2230 (PCIe Gen3 x1 & USB2.0)
1 x M.2 M Key 2242/3080 (PCIe Gen4 x4)

1 x PCIe Gen3 x4 (x4 & x2 + x2 & x2 + x1 + x1)
1 x M.2 A Key for WIFI & BT 2230 (PCIe Gen3 x1 & USB2.0)
1 x M.2 M Key 2242/3080 (PCIe Gen4 x4)

IMB-H420

Micro-ATX 主板支持 LGA1200 Intel® 第 10/11 代 Core™ i9/i7/i5/i3、Pentium® 和 Celeron® 处理器、DDR4、独立三显、双 LAN、M.2、8 个 USB 3.2、6 个 USB 2.0、10 个 COM、SATA 6Gb/s、HD 音频和 RoHS。

● CPU: LGA1200 插槽支持第 10/11 代 Intel® Core™ i9/i7/i5/i3﹑Pentium® 及 Celeron® 处理器（支持高达 65W TDP CPU）
● 芯片组: Intel® H420E

● CPU: LGA1200 插槽支持第 10/11 代 Intel® Core™ i9/i7/i5/i3﹑Pentium® 及 Celeron® 处理器（支持高达 65W TDP CPU）
● 芯片组: Intel® H420E

2 x 288-pin 2933 DDR4 无缓存 SDRAM DIMMs, 支持高达 64GB

2 x 288-pin 2933 DDR4 无缓存 SDRAM DIMMs, 支持高达 64GB

● 独立三显
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-I (up to 2560 x 1600@60Hz)
1 x internal DP (up to 3840 x 2160@60Hz)

● 独立三显
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-I (up to 2560 x 1600@60Hz)
1 x internal DP (up to 3840 x 2160@60Hz)

● 外部I/O接口：
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● 内部I/O接口：
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s

● 外部I/O接口：
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● 内部I/O接口：
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s

1 x PCIe Gen3 x16 slot
1 x PCIe Gen3 x1 slot

1 x PCIe Gen3 x16 slot
1 x PCIe Gen3 x1 slot

KINO-EHL2

Mini-ITX SBC 支持 Intel® Elkhart Lake Celeron® 板载处理器，支持 HDMI™、DP、iDPM独立三显，SATA 6Gb/s，2个2.5GbE网络，USB 3.2，M.2，12 ~ 28V DC 电源输入，符合 RoHS

Intel® Elkhart Lake 处理器
Intel® Celeron® J6412 板载 SoC（高达 2.6GHz，四核，1.5M 高速缓存，TDP=10W）

Intel® Elkhart Lake 处理器
Intel® Celeron® J6412 板载 SoC（高达 2.6GHz，四核，1.5M 高速缓存，TDP=10W）

260-pin 3200 MHz DDR4 SO-DIMM

260-pin 3200 MHz DDR4 SO-DIMM

● 三重4K独立显示
1 x DP 1.4a（高达 4096 x 2160 @60 Hz）
1 x IEI iDPM 3040 插槽（仅适用于 IEI eDP/LVDS/VGA 模块）
1 x HDMI™ 2.0b（高达 4096 x 2160 @30 Hz）

● 三重4K独立显示
1 x DP 1.4a（高达 4096 x 2160 @60 Hz）
1 x IEI iDPM 3040 插槽（仅适用于 IEI eDP/LVDS/VGA 模块）
1 x HDMI™ 2.0b（高达 4096 x 2160 @30 Hz）

● 外部 I/O 接口
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
4 x RS-232
● 内部 I/O 接口
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)

● 外部 I/O 接口
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
4 x RS-232
● 内部 I/O 接口
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)

1 x PCIe x4 Slot Open-ended (基于PCIe Gen3 x1信号)
1 x M.2 B key 3042/3052/2242/2280 (PCIe x2 & USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

1 x PCIe x4 Slot Open-ended (基于PCIe Gen3 x1信号)
1 x M.2 B key 3042/3052/2242/2280 (PCIe x2 & USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

IMB-Q470

Micro-ATX 主板支持 LGA1200 Intel® 第 10/11 代 Core™ i9/i7/i5/i3、Pentium® 和 Celeron® 处理器、DDR4、独立三显、双 LAN、M.2、8 个 USB 3.2、6 个 USB 2.0、10 个 COM、SATA 6Gb/s、HD 音频和 RoHS。

● CPU: LGA1200 插槽支持第 10/11 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器（支持高达125W TDP CPU）
● 芯片组: Intel®Q470/Q470E

● CPU: LGA1200 插槽支持第 10/11 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器（支持高达125W TDP CPU）
● 芯片组: Intel®Q470/Q470E

2 x 288-pin 2933 DDR4 无缓存 SDRAM DIMMs, 支持高达64GB

2 x 288-pin 2933 DDR4 无缓存 SDRAM DIMMs, 支持高达64GB

● 独立三显
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x interna DP (up to 3840 x 2160@60Hz)

● 独立三显
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x interna DP (up to 3840 x 2160@60Hz)

● 外部I/O接口：
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● 内部I/O接口：
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s

● 外部I/O接口：
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● 内部I/O接口：
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s

1 x PCIe Gen3 x16 slot
2 x PCIe Gen3 x4 slot
1 x M.2 B key 2242/2280 (PCIe Gen3 x2)
1 x M.2 M key 2242/2280 (PCIe Gen3 x4)

1 x PCIe Gen3 x16 slot
2 x PCIe Gen3 x4 slot
1 x M.2 B key 2242/2280 (PCIe Gen3 x2)
1 x M.2 M key 2242/2280 (PCIe Gen3 x4)

IMB-ADL-Q670

micro-ATX 主板支持 LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3、Pentium® 和 Celeron® 处理器、DDR4、三重独显、双重 2.5GbE 网口、USB 3.2、SATA 6Gb/s、HD Audio, 符合 RoHS

● CPU:LGA1700 插槽支持第 12/13/14 代 Alder Lake-S/Raptor Lake-S Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器（最高支持125W TDP CPU）
● 芯片组：Intel®Q670/Q670E

● CPU:LGA1700 插槽支持第 12/13/14 代 Alder Lake-S/Raptor Lake-S Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器（最高支持125W TDP CPU）
● 芯片组：Intel®Q670/Q670E

4 x 288-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs，支持高达128GB

4 x 288-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs，支持高达128GB

● 独立三显
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-I (up to 1920x1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)

● 独立三显
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-I (up to 1920x1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)

● 外部I/O接口：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
6 x USB 3.2 Gen1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type A)
● 内部I/O接口：
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.54)
8 x RS-232 (2x20 pin, P=2.54)

● 外部I/O接口：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
6 x USB 3.2 Gen1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type A)
● 内部I/O接口：
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.54)
8 x RS-232 (2x20 pin, P=2.54)

*1 x PCIe Gen4 x16 with x16 Signal
*1 x PCIe Gen4 x4 open-end
(*Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storagedevices)
1 x PCIe Gen4 x4 open-end
1 x PCIe Gen3 x1
1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe Gen3 x2 for SSD) NVMe support

*1 x PCIe Gen4 x16 with x16 Signal
*1 x PCIe Gen4 x4 open-end
(*Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storagedevices)
1 x PCIe Gen4 x4 open-end
1 x PCIe Gen3 x1
1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe Gen3 x2 for SSD) NVMe support

IMBA-ADL-Q670

ATX 主板支持 LGA1700 Intel® 12/13/14代 Generation Core™ i9/i7/i5/i3、Pentium® 和 Celeron® 处理器、DDR4、三重独立显示器、2.5GbE LAN、USB 3.2、SATA 6Gb/s, 符合 RoHS

● CPU: LGA1700 插槽支持第 12/13/14 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器（最高支持125W TDP CPU）
● 芯片组: Intel®Q670/Q670E

● CPU: LGA1700 插槽支持第 12/13/14 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器（最高支持125W TDP CPU）
● 芯片组: Intel®Q670/Q670E

4 x 288-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs，支持高达128GB

4 x 288-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs，支持高达128GB

● 独立三显
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 独立三显
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 外部I/O接口：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
● 内部I/O接口：
4 x SATA 6Gb/s
2 x USB 3.2 Gen1 (2 x 10pin, P=2.00 pin wafer) (5Gb/s)
4 x USB 2.0 (2 x 4 pin, P=2.54)
4 x RS-232 (2 x 5 pin, P=2.54)

● 外部I/O接口：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
● 内部I/O接口：
4 x SATA 6Gb/s
2 x USB 3.2 Gen1 (2 x 10pin, P=2.00 pin wafer) (5Gb/s)
4 x USB 2.0 (2 x 4 pin, P=2.54)
4 x RS-232 (2 x 5 pin, P=2.54)

**1 x PCIe Gen4 x16 slot
**1 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen3 x1 slot
1 x PCI slot
1 x M.2 M Key (2242/2280, PCIe x4 ), 支持NVMe存储
1 x M.2 M Key (2242/2280, PCIe x2 for SSD), 支持NVMe存储

**1 x PCIe Gen4 x16 slot
**1 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen3 x1 slot
1 x PCI slot
1 x M.2 M Key (2242/2280, PCIe x4 ), 支持NVMe存储
1 x M.2 M Key (2242/2280, PCIe x2 for SSD), 支持NVMe存储

KINO-ADL-H610

mini-ITX SBC 支持 LGA1700 Intel® 第 12/13/14 代 Core™ i9/i7/i5/i3、Pentium® 和 Celeron® 处理器、DDR4、三重独立显示、双 2.5GbE LAN、USB 3.2、SATA 6Gb/s, RoHS

● CPU: LGA1700 插槽支持第 12/13/14 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器（支持高达 65W TDP CPU）
● 芯片组: Intel® H610/H610E

● CPU: LGA1700 插槽支持第 12/13/14 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器（支持高达 65W TDP CPU）
● 芯片组: Intel® H610/H610E

2 x 260-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs,内存上限64GB

2 x 260-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs,内存上限64GB

● 独立三显
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

● 独立三显
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● 内部I/O接口：
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● 内部I/O接口：
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

1 x PCIe Gen4 x16
1 x M.2 M key (2280, PCIe Gen3 X 4)
1 x M.2 A key (2230, PCIe Gen3 x1 &USB 2.0)

1 x PCIe Gen4 x16
1 x M.2 M key (2280, PCIe Gen3 X 4)
1 x M.2 A key (2230, PCIe Gen3 x1 &USB 2.0)

IMB-ADL-H610

micro ATX 主板支持 LGA1700 Intel® 12/13/14代 Generation Core™ i9/i7/i5/i3、Pentium® 和 Celeron® 处理器、DDR4、三重独显、双重网口、USB 3.2、SATA 6Gb/s 和 RoHS

● CPU: LGA1700 插槽支持第 12/13/14 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器 (支持高达65W TDP CPU)
● 芯片组: Intel® H610/H610E

● CPU: LGA1700 插槽支持第 12/13/14 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器 (支持高达65W TDP CPU)
● 芯片组: Intel® H610/H610E

2 x 288-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs 支持多达至 64GB

2 x 288-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs 支持多达至 64GB

● 独立三显:
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 独立三显:
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● 内部I/O接口：
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● 内部I/O接口：
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)

1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
1 x M.2 M Key 2280( PCIe x1 )，支持 NVMe 存储

1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
1 x M.2 M Key 2280( PCIe x1 )，支持 NVMe 存储

IMBA-ADL-H610

ATX 主板支持 LGA1700 Intel® 12/13/14 代 Generation Core™ i9/i7/i5/i3、Pentium® 和 Celeron® 处理器、DDR4、三重独立显示器、2.5GbE LAN、USB 3.2、SATA 6Gb/s 和 RoHS

● CPU: LGA1700 插槽支持第 12/13/14 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器 (支持多达 65W TDP CPU)
● 芯片组: Intel® H610/H610E

● CPU: LGA1700 插槽支持第 12/13/14 代 Intel® Core™i9/i7/i5/i3/Pentium®/Celeron® 处理器 (支持多达 65W TDP CPU)
● 芯片组: Intel® H610/H610E

2 x 288-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs 支持多达至 64GB

2 x 288-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs 支持多达至 64GB

● 独立三显 :
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 独立三显 :
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● 内部I/O接口：
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● 内部I/O接口：
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)

1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
2 X PCI

1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
2 X PCI

IMBA-R680

ATX 主板支持 LGA1700 Intel® 第 12/13/14 代 Core™ i9/i7/i5/i3, Pentium® 和 Celeron® 处理器, 支持 DDR5 内存, 独立三显, 双 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, 以及符合 RoHS

CPU: LGA1700 插槽支持第 12/133/14 代 Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® 处理器 (最高支持 125W TDP CPU)
芯片组：Intel®R680E

CPU: LGA1700 插槽支持第 12/133/14 代 Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® 处理器 (最高支持 125W TDP CPU)
芯片组：Intel®R680E

4 x 288-pin 双通道 DDR5 (up to 4400 MHz) SDRAM 无缓存 DIMMs (支持 ECC&non-ECC)

4 x 288-pin 双通道 DDR5 (up to 4400 MHz) SDRAM 无缓存 DIMMs (支持 ECC&non-ECC)

独立三显

1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 3840*2160 @30Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

独立三显

1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 3840*2160 @30Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

外部 I/O 接口：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 支持 AFC)
内部 I/O 接口：
4 x SATA 6Gb/s (支持RAID 0/1/5/10)
4 x USB 2.0 (2x4 pin, P=2.00)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)
4 x RS-232 (2x5 pin, P=2.54)

外部 I/O 接口：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 支持 AFC)
内部 I/O 接口：
4 x SATA 6Gb/s (支持RAID 0/1/5/10)
4 x USB 2.0 (2x4 pin, P=2.00)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)
4 x RS-232 (2x5 pin, P=2.54)

** 2 x PCIe Gen5 x16 slot with x8 Signal
** 1 x PCIe Gen4 x4 open-end
2 x PCIe Gen4 x4 open-end
2 x PCIe Gen3 x1
2 x M.2 M Key (2242/2280, PCIe x4) 支持NVMe 存储

** 2 x PCIe Gen5 x16 slot with x8 Signal
** 1 x PCIe Gen4 x4 open-end
2 x PCIe Gen4 x4 open-end
2 x PCIe Gen3 x1
2 x M.2 M Key (2242/2280, PCIe x4) 支持NVMe 存储

KINO-EHL

Mini-ITX SBC 支持 Intel® Elkhart Lake Celeron® 板载 SoC，默认板载 8GB LPDDR4x 内存，带 HDMI™、DP 和 iDPM 的三重独显，SATA 6Gb/s，双 2.5GbE 网口，USB 3.2，M.2，12V 直流输入，RoHS

Intel® Elkhart Lake 处理器
Intel® Celeron® J6412 板载 SoC (高达 2.6GHz，四核，1.5M 高速缓存，TDP=10W)

Intel® Elkhart Lake 处理器
Intel® Celeron® J6412 板载 SoC (高达 2.6GHz，四核，1.5M 高速缓存，TDP=10W)

板载 LPDDR4x-3200MHz 8GB，系统高达 16GB

板载 LPDDR4x-3200MHz 8GB，系统高达 16GB

三重4K独立显示
1 X DP 1.4a (高达 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA 模块)
1 X HDMI™ 2.0b (高达 4096x2160 @ 30 Hz)

三重4K独立显示
1 X DP 1.4a (高达 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA 模块)
1 X HDMI™ 2.0b (高达 4096x2160 @ 30 Hz)

外部 I/O 接口 :
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
2 x RS-232
内部 I/O 接口 :
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 X RS-422/485 (1x4 pin,P=2.0)

外部 I/O 接口 :
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
2 x RS-232
内部 I/O 接口 :
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 X RS-422/485 (1x4 pin,P=2.0)

1 x PCIe x4 Slot Open-ended (基于 PCIe Gen3 x1 信号)
1 x M.2 B key 3042/3052/2242/2280 (PCIe x2 & USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

1 x PCIe x4 Slot Open-ended (基于 PCIe Gen3 x1 信号)
1 x M.2 B key 3042/3052/2242/2280 (PCIe x2 & USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

KINO-TGL-U

Mini-ITX 主板支持 Intel® Tiger Lake-UP3 处理器，9 ~ 36V 直流输入，三重独显 HDMI™, DP, iDPM，SATA 6Gb/s，双重 Intel® 2.5GbE 网口，USB 3.2 Gen2, M.2，符合RoHS

第 11 代 Intel® 移动 Tiger Lake-UP3 板载处理器

第 11 代 Intel® 移动 Tiger Lake-UP3 板载处理器

两个 260-pin 3200 MHz DDR4 SO-DIMM 插槽

两个 260-pin 3200 MHz DDR4 SO-DIMM 插槽

三重4K独立显示
1 X DP 1.4a (高达 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA 模块)
1 X HDMI™ 2.0b (高达 4096x2160 @ 30 Hz)

三重4K独立显示
1 X DP 1.4a (高达 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA 模块)
1 X HDMI™ 2.0b (高达 4096x2160 @ 30 Hz)

外部 I/O 接口:
4 X USB 3.2 Gen2 (10Gb/s) by USB Type-C
内部 I/O 接口:
2 X SATA 6Gb/s (支持 RAID 0/1)
2 X USB 2.0 (2x4 pin, P=2.0)
1 X RS-422/485 by 4-pin (1x4) 接口 (RS-485 支持 AFC)
5 X RS-232 by 10-pin header (2x5 pin, P=2.0)

外部 I/O 接口:
4 X USB 3.2 Gen2 (10Gb/s) by USB Type-C
内部 I/O 接口:
2 X SATA 6Gb/s (支持 RAID 0/1)
2 X USB 2.0 (2x4 pin, P=2.0)
1 X RS-422/485 by 4-pin (1x4) 接口 (RS-485 支持 AFC)
5 X RS-232 by 10-pin header (2x5 pin, P=2.0)

1 X PCIe x8 插槽 (PCIe 4.0 x4信号，开放式)
1 X M.2 2230 A-key 插槽 (PCIe x1 & USB 2.0)

1 X PCIe x8 插槽 (PCIe 4.0 x4信号，开放式)
1 X M.2 2230 A-key 插槽 (PCIe x1 & USB 2.0)

IMBA-Q471

ATX 主板支持第 10 代 / 第 11 代 LGA1200 Intel® Core™ i9/i7/i5/i3、Celeron® 和 Pentium® 处理器，DDR4，三重独立显示器，三重 2.5GbE 网口，M.2、USB 3.2，SATA 6Gb/ s，高清音频和 RoHS

CPU：第 10 代 / 第 11 代 LGA1200 Intel® Core™ i9/i7/i5/i3、Celeron® 和 Pentium® 处理器
芯片组：Intel® Q470/Q470E

CPU：第 10 代 / 第 11 代 LGA1200 Intel® Core™ i9/i7/i5/i3、Celeron® 和 Pentium® 处理器
芯片组：Intel® Q470/Q470E

四个 288-pin 2933 MHz 双通道无缓冲 DDR4 SDRAM DIMM 插槽，支持多达 128 GB 内存

四个 288-pin 2933 MHz 双通道无缓冲 DDR4 SDRAM DIMM 插槽，支持多达 128 GB 内存

三重独立显示
1 x VGA（高达 1920 x 1080 @ 60 Hz）
1 x DP（高达 4096 x 2304 @ 60 Hz）
1 x HDMI™（高达 4096 x 2304 @ 30 Hz）

三重独立显示
1 x VGA（高达 1920 x 1080 @ 60 Hz）
1 x DP（高达 4096 x 2304 @ 60 Hz）
1 x HDMI™（高达 4096 x 2304 @ 30 Hz）

外部 I/O 接口：
1 x RS-232 DB-9
2 x USB 2.0（Type-A）
2 x USB 3.2 Gen 1（5Gb/s）（Type-A）
2 x USB 3.2 Gen 2（10Gb/s）（Type-A）

内部I/O接口：
6 x USB 2.0（2x4 pin，p=2.54）
2 x USB 3.2 Gen1（2x10 pin，p=2.0）
2 x RS-232（2x5 pin，p=2.54）
1 x RS-422/485（1x4 pin，p=2.0）

外部 I/O 接口：
1 x RS-232 DB-9
2 x USB 2.0（Type-A）
2 x USB 3.2 Gen 1（5Gb/s）（Type-A）
2 x USB 3.2 Gen 2（10Gb/s）（Type-A）

内部I/O接口：
6 x USB 2.0（2x4 pin，p=2.54）
2 x USB 3.2 Gen1（2x10 pin，p=2.0）
2 x RS-232（2x5 pin，p=2.54）
1 x RS-422/485（1x4 pin，p=2.0）

2 x PCIe Gen3 x16（x8信号）
3 x PCIe Gen3 x4
2 x PCIe Gen3 x1

2 x PCIe Gen3 x16（x8信号）
3 x PCIe Gen3 x4
2 x PCIe Gen3 x1

KINO-DH420

Mini-ITX 主板支持 LGA1200 Intel® 第十代 Core™ i9/i7/i5/i3 ，Celeron® 和 Pentium® 处理器，支持DDR4内存, 独立双显, 3路2.5GbE千兆网口,支持 M.2, SATA 6Gb/s和高清音频接口，符合 RoHS

CPU: LGA1200插槽 Intel® 第10代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组: Intel® H420E

CPU: LGA1200插槽 Intel® 第10代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组: Intel® H420E

2 x 260-pin 2933 MHz 双通道 DDR4 SO-DIMMs，支持多达至64GB

2 x 260-pin 2933 MHz 双通道 DDR4 SO-DIMMs，支持多达至64GB

独立双显
1 x DP (高达 4096 x 2304 @60Hz)
1 x HDMI™ (高达 4096 x 2160 @30Hz)

独立双显
1 x DP (高达 4096 x 2304 @60Hz)
1 x HDMI™ (高达 4096 x 2160 @30Hz)

外部 I/O 接口:
2 x RS-232
2 x USB 2.0
4 x USB 3.2 Gen1 (5Gb/s)
内部 I/O 接口:
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)

外部 I/O 接口:
2 x RS-232
2 x USB 2.0
4 x USB 3.2 Gen1 (5Gb/s)
内部 I/O 接口:
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)

1 x PCIe Gen3 x16
1 x M.2 A key (2230) (基于PCIe x1/USB 2.0信号)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (基于PCIe x2 /USB 2.0信号)

1 x PCIe Gen3 x16
1 x M.2 A key (2230) (基于PCIe x1/USB 2.0信号)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (基于PCIe x2 /USB 2.0信号)

IMBA-H420

ATX 主板支持14nm LGA1200插槽Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 处理器, 支持DDR4内存, 三路显示输出,2.5 GbE网络, USB 3.2, SATA 6Gb/s, 和高清音频接口，符合RoHS

CPU:
LGA1200插槽 Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组：Intel® H420E

CPU:
LGA1200插槽 Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组：Intel® H420E

2 x 288-pin 2933 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs ，支持多达至64G

2 x 288-pin 2933 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs ，支持多达至64G

支持三显
1 x VGA (up to 1920 x 1200@60Hz)
1 x 内置DP++ (up to 4096 x 2304@60Hz)
1 x HDMI™ (up to 4096 x 2160@30Hz)

支持三显
1 x VGA (up to 1920 x 1200@60Hz)
1 x 内置DP++ (up to 4096 x 2304@60Hz)
1 x HDMI™ (up to 4096 x 2160@30Hz)

外部 I/O 接口:
4 x USB 3.2 Gen 1 (5Gb/s)
2 x USB 2.0
1 x RS-232
1 x KB/MS
内部 I/O 接口:
1 x RS-232/422/485 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (no RAID)

外部 I/O 接口:
4 x USB 3.2 Gen 1 (5Gb/s)
2 x USB 2.0
1 x RS-232
1 x KB/MS
内部 I/O 接口:
1 x RS-232/422/485 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (no RAID)

1 x PCIe Gen3 x16
1 x PCIe Gen3 x4
4 x PCI

1 x PCIe Gen3 x16
1 x PCIe Gen3 x4
4 x PCI

IMBA-KX

ATX 主板支持 16nm 兆芯 KX-U6580/KXU6780A(70W) 板载处理器，独立三显, 支持DDR4内存, 双路千兆网口, M.2, Mini PCIe, USB 3.2, SATA 6Gb/s, COM和高清音频接口，符合 RoHS

CPU:
兆芯开先 KX-6000系列 8核处理器
兆芯 KX-U6580 板载 SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
兆芯 KX-U6780A 板载 SoC (8-Core, 8MB Cache,2.7GHz, 70W)
芯片组：
兆芯 ZX-200

CPU:
兆芯开先 KX-6000系列 8核处理器
兆芯 KX-U6580 板载 SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
兆芯 KX-U6780A 板载 SoC (8-Core, 8MB Cache,2.7GHz, 70W)
芯片组：
兆芯 ZX-200

4 x 288-pin 3200 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs (支持多达 64GB)

4 x 288-pin 3200 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs (支持多达 64GB)

独立三显
1 x VGA ( 高达1920 x 1080 @60Hz)
1 x DP (高达4096 x 2304 @60Hz)
1 x HDMI™ (高达 4096 x 2304@30Hz)

独立三显
1 x VGA ( 高达1920 x 1080 @60Hz)
1 x DP (高达4096 x 2304 @60Hz)
1 x HDMI™ (高达 4096 x 2304@30Hz)

外部 I/O 接口
2 x USB 3.2 Gen2 (10Gb/S)
2 x USB 3.2 Gen1 (5Gb/S)
6 x USB 2.0
1 x PS/2 KB/MS
1 x RS-232

内部 I/O 接口
4 x SATA 6G/s 带 5/12V SATA 电源接口 (无 RAID)
1 x USB3.2 GEN1 TYPE-A (5Gb/S)
4 x USB2.0 (2 x 4 pin, P=2.54)
9 x RS-232 (2 x 5 pin, P=2.0)

外部 I/O 接口
2 x USB 3.2 Gen2 (10Gb/S)
2 x USB 3.2 Gen1 (5Gb/S)
6 x USB 2.0
1 x PS/2 KB/MS
1 x RS-232

内部 I/O 接口
4 x SATA 6G/s 带 5/12V SATA 电源接口 (无 RAID)
1 x USB3.2 GEN1 TYPE-A (5Gb/S)
4 x USB2.0 (2 x 4 pin, P=2.54)
9 x RS-232 (2 x 5 pin, P=2.0)

1 x PCIe Gen3 x16 (x8 信号)
2 x PCIe Gen3 x4
4 x PCI
1 x M.2 B Key w/ SIM holder (3042/3052/2242/2280) 基于 PCIe x2/USB 3.2 Gen1/SATA信号
1 x 全尺寸 Mini PCIe (PCIe Gen2 x1, USB2.0)

1 x PCIe Gen3 x16 (x8 信号)
2 x PCIe Gen3 x4
4 x PCI
1 x M.2 B Key w/ SIM holder (3042/3052/2242/2280) 基于 PCIe x2/USB 3.2 Gen1/SATA信号
1 x 全尺寸 Mini PCIe (PCIe Gen2 x1, USB2.0)

IMBA-Q470

ATX工业主板支持LGA1200插槽 Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 处理器, DDR4内存,独立三显,双 2.5GbE网络, M.2, USB 3.2, SATA 6Gb/s和高清音频等扩展接口，符合RoHS

CPU:
LGA1200插槽 Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组：Intel® Q470/Q470E

CPU:
LGA1200插槽 Intel® 第10/11代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 系列处理器
芯片组：Intel® Q470/Q470E

4 x 288-pin 2933 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs ，支持多达至128G

4 x 288-pin 2933 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs ，支持多达至128G

独立三显
1 x VGA (高达1920 x 1080 @60Hz)
1 x DP (高达4096 x 2304 @60Hz)
1 x HDMI™ (高达 4096 x 2304@30Hz)

独立三显
1 x VGA (高达1920 x 1080 @60Hz)
1 x DP (高达4096 x 2304 @60Hz)
1 x HDMI™ (高达 4096 x 2304@30Hz)

外部 I/O 接口
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 支持 AFC)
1 x RS-232

内部 I/O 接口
6 x SATA 6Gb/s (支持 RAID 0/1/5/10)
4 x USB 2.0 (2x4pin，P=2.0)
3 x RS-232 (2x5pin,P=2.54)

外部 I/O 接口
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 支持 AFC)
1 x RS-232

内部 I/O 接口
6 x SATA 6Gb/s (支持 RAID 0/1/5/10)
4 x USB 2.0 (2x4pin，P=2.0)
3 x RS-232 (2x5pin,P=2.54)

1 x PCIe x16 插槽 x8 信号 Gen4
3 x PCIe x4 open-end Gen3
3 x PCI
1 x M.2 M Key (2242/2280, PCIe x 4 for SSD) 支持NVMe
1 x M.2 A Key (2230) (PCIe x2 w/ USB2.0)

1 x PCIe x16 插槽 x8 信号 Gen4
3 x PCIe x4 open-end Gen3
3 x PCI
1 x M.2 M Key (2242/2280, PCIe x 4 for SSD) 支持NVMe
1 x M.2 A Key (2230) (PCIe x2 w/ USB2.0)

KINO-KX

Rich I/O Mini-ITX with Zhaoxin 16nm KX-6000 Series Processor

● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200

● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200

2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)

2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)

1 x VGA (up to 1920x1080@60Hz)
1 x DVI-I (up to 1920x1080@60Hz)

1 x VGA (up to 1920x1080@60Hz)
1 x DVI-I (up to 1920x1080@60Hz)

● External I/O Interface
10 x USB 2.0
4 x USB 3.2 Gen 1 (5Gb/s)
1 x KB/MS

● Internal I/O Interface
2 x RS-232 (2x5 pin, P=2.0)
8 x RS-232 (2x20 pin, P=2.0)
4 x SATA 6G/s

● External I/O Interface
10 x USB 2.0
4 x USB 3.2 Gen 1 (5Gb/s)
1 x KB/MS

● Internal I/O Interface
2 x RS-232 (2x5 pin, P=2.0)
8 x RS-232 (2x20 pin, P=2.0)
4 x SATA 6G/s

● Expansion
1 x Full-size PCIe Mini card slot
1 x PCIe x16 slot (with x8 Gen 3.0 signal)

● Expansion
1 x Full-size PCIe Mini card slot
1 x PCIe x16 slot (with x8 Gen 3.0 signal)

IMBA-H310

ATX motherboard supports 14nm LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays, dual GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310

● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310

Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

● Triple independent display
1 x DVI-D (up to 2560x1600@60Hz)
1 x VGA (UP to 1920x1200@60Hz)
1 x Internal 180⁰ DP (up to 4096x2304@60Hz)

● Triple independent display
1 x DVI-D (up to 2560x1600@60Hz)
1 x VGA (UP to 1920x1200@60Hz)
1 x Internal 180⁰ DP (up to 4096x2304@60Hz)

● External I/O Interface
4 x USB 3.2 Gen 1 (5Gb/s)
2 x RS-232
2 x USB 2.0
1 x KB/MS

● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x USB 2.0 (2x4 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
1 x RS-232/422/485 (2x5 pin, P=2.54)
4 x SATA 6G/s (no RAID)

● External I/O Interface
4 x USB 3.2 Gen 1 (5Gb/s)
2 x RS-232
2 x USB 2.0
1 x KB/MS

● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x USB 2.0 (2x4 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
1 x RS-232/422/485 (2x5 pin, P=2.54)
4 x SATA 6G/s (no RAID)

● Expansion
1 x PCIe x16 (Gen3)
1 x PCIe x4 (Gen2)
4 x PCI

● Expansion
1 x PCIe x16 (Gen3)
1 x PCIe x4 (Gen2)
4 x PCI

IMBA-H112

ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI™, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110

˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110

Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

Dual independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x HDMI™ 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

Dual independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x HDMI™ 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

˙External I/O Interface:
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RS-232

˙Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x SATA 6Gb/s (support Hot plug)
1 x USB 2.0 (type A)
4 x RS-232 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)

˙External I/O Interface:
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RS-232

˙Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x SATA 6Gb/s (support Hot plug)
1 x USB 2.0 (type A)
4 x RS-232 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)

˙Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
1 x PCIe x4
4 x PCI slot

˙Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
1 x PCIe x4
4 x PCI slot

KINO-DH110

Mini-ITX SBC supports 14nm LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pentium® Processor, DDR4, Dual Independent Displays, Dual GbE LAN, M.2, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor

LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor

Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB

Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB

* Dual independent display
1 x HDMI™ (up to 3840x2160@60Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

* Dual independent display
1 x HDMI™ (up to 3840x2160@60Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

* External I/O Interface
4 x USB 3.0
1 x RS-232/422/485

* External I/O Interface
4 x USB 3.0
1 x RS-232/422/485

* Expansion
1 x Full-size PCIe Mini card slot (PCIe & USB)
1 x M.2 B Key (SATA)
1 x PCIe x16 slot (Gen2)

* Expansion
1 x Full-size PCIe Mini card slot (PCIe & USB)
1 x M.2 B Key (SATA)
1 x PCIe x16 slot (Gen2)

KINO-DH310

Mini-ITX SBC 支持 14nm LGA1151 Intel® 第八/九代 Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 处理器, DDR4, 双独立显示, 双 GbE LAN, M.2, SATA 6Gb/s, HD 音频和 RoHS

LGA1151 socket 支持第八/九代 Intel® Core™ i9/i7/i5/i3, Pentium® 或 Celeron® 处理器 (35W/65W)
Intel® H310

LGA1151 socket 支持第八/九代 Intel® Core™ i9/i7/i5/i3, Pentium® 或 Celeron® 处理器 (35W/65W)
Intel® H310

两个 260-pin 2666/2400 MHz 双通道 DDR4 SDRAM 无缓冲 SO-DIMM 插槽
支持高达 64GB

两个 260-pin 2666/2400 MHz 双通道 DDR4 SDRAM 无缓冲 SO-DIMM 插槽
支持高达 64GB

* 双独立显示
2 x HDMI™ (高达 4096x2160@30Hz)
1 x 内部显示端口 (高达 4096x2304@60Hz) (可选)

* 双独立显示
2 x HDMI™ (高达 4096x2160@30Hz)
1 x 内部显示端口 (高达 4096x2304@60Hz) (可选)

● 外部 I/O 接口
4 x USB 3.0
2 x RS-232
● 内部 I/O 接口
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s 带有 5/12V SATA 电源连接器 (无 RAID)

● 外部 I/O 接口
4 x USB 3.0
2 x RS-232
● 内部 I/O 接口
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s 带有 5/12V SATA 电源连接器 (无 RAID)

● 扩展
1 x PCIe x16
1 x M.2 M key (2280,仅 Gen2 PCIe x2)
1 x M.2 A Key (2230, PCIe x1 & USB 2.0)

● 扩展
1 x PCIe x16
1 x M.2 M key (2280,仅 Gen2 PCIe x2)
1 x M.2 A Key (2230, PCIe x1 & USB 2.0)

IMBA-Q370

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1 Gen 2 (10Gb/s), SATA 6Gb/s, HD Audio and RoHS

LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370

LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370

Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI™ (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz)

Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI™ (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz)

● External I/O Interface
2 x USB 3.1 Gen2
1 x RS-232
2 x USB 3.1 Gen1
1 x PS/2 KB/MS
2 x USB 2.0
● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.0 (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)

● External I/O Interface
2 x USB 3.1 Gen2
1 x RS-232
2 x USB 3.1 Gen1
1 x PS/2 KB/MS
2 x USB 2.0
● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.0 (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)

● Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)

● Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)

gKINO-DMF

Mini-ITX SBC supports AMD Merlin Falcon SoC Proccessor

FP4 BGA支持AMD Merlin Falcon SoC
RX-421BD 板载 SoC(2.1GHz，四核，2MB缓存，TDP=35W)
RX-216GD 板载 SoC(1.6GHz，四核，1MB缓存，TDP=15W)

FP4 BGA支持AMD Merlin Falcon SoC
RX-421BD 板载 SoC(2.1GHz，四核，2MB缓存，TDP=35W)
RX-216GD 板载 SoC(1.6GHz，四核，1MB缓存，TDP=15W)

两个 260-pin 2400MHz 双通道 DDR4 非ECC 无缓冲 SO-DIMMs支持高达64GB

两个 260-pin 2400MHz 双通道 DDR4 非ECC 无缓冲 SO-DIMMs支持高达64GB

独立三显
2 x HDMI™ 1.4(支持多达4096 x 2160@24Hz)
1 x DP++ (支持多达3840x2160@60Hz)

独立三显
2 x HDMI™ 1.4(支持多达4096 x 2160@24Hz)
1 x DP++ (支持多达3840x2160@60Hz)

1 x MicroSD卡插槽
2 x RS-232/422/485(2x5 pin，P=2.0)
2 x RS-232(2x5 pin，P=2.0)
2 x RS-232(支持Cctalt，TTL)(1x4 pin，P=2.54)
4 x USB2.0(2x4 pin，P=2.0)
2 x 5V/12V输出的SATA

1 x MicroSD卡插槽
2 x RS-232/422/485(2x5 pin，P=2.0)
2 x RS-232(2x5 pin，P=2.0)
2 x RS-232(支持Cctalt，TTL)(1x4 pin，P=2.54)
4 x USB2.0(2x4 pin，P=2.0)
2 x 5V/12V输出的SATA

IMBA-H110

ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3,
Celeron® and Pemtium® processor

LGA 1151 socket 支持 Intel® 第六/七代 Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器 + Intel® H110

LGA 1151 socket 支持 Intel® 第六/七代 Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器 + Intel® H110

内存上限 : 两个 288-pin 2133 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs 支持高达 64 GB

内存上限 : 两个 288-pin 2133 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs 支持高达 64 GB

显示输出 : 独立双显
1 x DVI-I (高达 2560x1200@60Hz)
1 x HDMI™ 1.4 (高达 4096x2160@24Hz)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 4096x2304@60Hz)

显示输出 : 独立双显
1 x DVI-I (高达 2560x1200@60Hz)
1 x HDMI™ 1.4 (高达 4096x2160@24Hz)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 4096x2304@60Hz)

1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
1 x USB 2.0 (type A)
2 x USB 2.0 (2x4 pin, P=2.54)
2 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (支持热插拔)
2 x RS-232/422/485 (2x5 pin, P=2.54, colay with COM5,6)

1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
1 x USB 2.0 (type A)
2 x USB 2.0 (2x4 pin, P=2.54)
2 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (支持热插拔)
2 x RS-232/422/485 (2x5 pin, P=2.54, colay with COM5,6)

扩展：
1 x 全尺寸 PCIe 迷你卡插槽 (支持 mSATA)
1 x PCIe x16 插槽 (Gen3)
6 x PCI 插槽

扩展：
1 x 全尺寸 PCIe 迷你卡插槽 (支持 mSATA)
1 x PCIe x16 插槽 (Gen3)
6 x PCI 插槽

KINO-AQ170

Mini-ITX SBC supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170

LGA 1151 socket 支持第6代 Intel® Core™ i7/i5/i3, Pentium® 和 Celeron® 处理器
Intel® Q170

LGA 1151 socket 支持第6代 Intel® Core™ i7/i5/i3, Pentium® 和 Celeron® 处理器
Intel® Q170

内存上限 : 支持两个 260-pin 2133 MHz 双通道 DDR4 SDRAM SO-DIMM (系统上限 64 GB)

内存上限 : 支持两个 260-pin 2133 MHz 双通道 DDR4 SDRAM SO-DIMM (系统上限 64 GB)

显示输出 : 独立三显
1 x HDMI™ 2.0 by MCDP2800-BB DP to HDMI™ 转换器 (高达 4096x2160@60Hz)
1 x HDMI™/DP (高达 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA 转换器 (高达 1920x1200)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 2560x1600@60Hz)

显示输出 : 独立三显
1 x HDMI™ 2.0 by MCDP2800-BB DP to HDMI™ 转换器 (高达 4096x2160@60Hz)
1 x HDMI™/DP (高达 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA 转换器 (高达 1920x1200)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 2560x1600@60Hz)

2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (支持 RAID 0/1/5/10)
4 x USB 2.0 (2x4 pin, P=2.0)

2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (支持 RAID 0/1/5/10)
4 x USB 2.0 (2x4 pin, P=2.0)

扩展：
1 x 全尺寸 PCIe 迷你插槽 (支持 mSATA)
1 x PCIe x8 插槽

扩展：
1 x 全尺寸 PCIe 迷你插槽 (支持 mSATA)
1 x PCIe x8 插槽

IMB-H110

microATX Motherboard supports 14nm LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor

LGA 1151 socket 支持 Intel® 第六/七代 Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器 + Intel® H110

LGA 1151 socket 支持 Intel® 第六/七代 Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器 + Intel® H110

内存上限 : 两个 288-pin 2133MHz 双通道 DDR4 SDRAM 无缓冲 DIMM 支持高达 64GB

内存上限 : 两个 288-pin 2133MHz 双通道 DDR4 SDRAM 无缓冲 DIMM 支持高达 64GB

双显示器
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP

双显示器
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP

1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
1 x LPT (2 x 13pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x SATA 6Gb/s
10 x RS-232 (2x5 pin, P=2.0)

1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
1 x LPT (2 x 13pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x SATA 6Gb/s
10 x RS-232 (2x5 pin, P=2.0)

扩展：
1 x PCIe x16 插槽 (Gen3)
1 x 全尺寸 PCIe 迷你卡插槽
1 x PCIe x1 插槽 (Gen2)
2 x PCI 插槽

扩展：
1 x PCIe x16 插槽 (Gen3)
1 x 全尺寸 PCIe 迷你卡插槽
1 x PCIe x1 插槽 (Gen2)
2 x PCI 插槽

IMBA-C2360

ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series,
Core™ i3, Pentium®, Celeron® processor per Intel® C236

LGA 1151 socket 支持 Intel® Xeon® E3 v5/v6, 第六/七代 Core™ i3, Pentium® 或 Celeron® 处理器 + Intel® C236

LGA 1151 socket 支持 Intel® Xeon® E3 v5/v6, 第六/七代 Core™ i3, Pentium® 或 Celeron® 处理器 + Intel® C236

四个 288-pin 2133 MHz 双通道 DDR4 SDRAM ECC 和非ECC 无缓冲 DIMMs 支持高达 64 GB

四个 288-pin 2133 MHz 双通道 DDR4 SDRAM ECC 和非ECC 无缓冲 DIMMs 支持高达 64 GB

显示输出 : 独立三显
1 x VGA (高达 1920x1200@60Hz)
1 x DVI-D (高达 2560x1600@60Hz)
1 x HDMI™ 2.0 (高达 4096x2160@60Hz)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 4096x2304@60Hz)

显示输出 : 独立三显
1 x VGA (高达 1920x1200@60Hz)
1 x DVI-D (高达 2560x1600@60Hz)
1 x HDMI™ 2.0 (高达 4096x2160@60Hz)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 4096x2304@60Hz)

1 x KB/MS (1 x 6PIN)
4 x USB 2.0
1 x USB 3.0
4 x RS-232 (2 x 5 PIN,P=2.0)
2 x RS-422/485 (2 x 5 PIN,P=2.54)
1 x LPT (2 x 13PIN,P=2.54)
6 x SATA 6Gb/s

1 x KB/MS (1 x 6PIN)
4 x USB 2.0
1 x USB 3.0
4 x RS-232 (2 x 5 PIN,P=2.0)
2 x RS-422/485 (2 x 5 PIN,P=2.54)
1 x LPT (2 x 13PIN,P=2.54)
6 x SATA 6Gb/s

扩展：
1 x 全尺寸 PCIe 迷你卡插槽
2 x PCIe x8 插槽 (Gen3)
2 x PCI 插槽
3 x PCIe x4 插槽 (Gen3)

扩展：
1 x 全尺寸 PCIe 迷你卡插槽
2 x PCIe x8 插槽 (Gen3)
2 x PCI 插槽
3 x PCIe x4 插槽 (Gen3)

tKINO-BW

Thin Mini-ITX SBC supports 14nm Intel® Pentium®/Celeron® on-board SoC

*Intel® Pentium® N3710 板载 SoC
*Intel® Celeron® N3160 板载 SoC
*Intel® Celeron® N3060 板载 SoC
*Intel® Celeron® N3010 板载 SoC

*Intel® Pentium® N3710 板载 SoC
*Intel® Celeron® N3160 板载 SoC
*Intel® Celeron® N3060 板载 SoC
*Intel® Celeron® N3010 板载 SoC

两个 204-pin 1333/1600 MHz 单通道 DDR3L SDRAM 无缓冲 SO-DIMM 插槽支持高达 8 GB

两个 204-pin 1333/1600 MHz 单通道 DDR3L SDRAM 无缓冲 SO-DIMM 插槽支持高达 8 GB

显示输出 : 独立三显
1 x HDMI™/DP (高达 3840x2160@30Hz)
1 x 18/24-bit 双通道 LVDS by CH7511B DP to LVDS 转换器 (高达 1920x1200@60Hz)
1 x VGA by CH7517 DP to VGA 转换器 (高达 1920x1200@60Hz)

显示输出 : 独立三显
1 x HDMI™/DP (高达 3840x2160@30Hz)
1 x 18/24-bit 双通道 LVDS by CH7511B DP to LVDS 转换器 (高达 1920x1200@60Hz)
1 x VGA by CH7517 DP to VGA 转换器 (高达 1920x1200@60Hz)

2 x Internal USB 2.0
4 x Internal RS-232
4 x USB 3.0
1 x KB/MS
2 x Internal RS-232/422/485

2 x Internal USB 2.0
4 x Internal RS-232
4 x USB 3.0
1 x KB/MS
2 x Internal RS-232/422/485

扩展：
1 x 全尺寸 PCIe 迷你卡插槽
1 x microSD 卡插槽
1 x PCIe x1

扩展：
1 x 全尺寸 PCIe 迷你卡插槽
1 x microSD 卡插槽
1 x PCIe x1

IMBA-Q170

ATX motherboard supports 14nm LGA1151 Intel® CPU Intel® Q170,

LGA 1151 socket 支持 Intel® 第六/七代 Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器 + Intel® Q170

LGA 1151 socket 支持 Intel® 第六/七代 Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器 + Intel® Q170

四个 288-pin 2133 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs 支持高达 64 GB

四个 288-pin 2133 MHz 双通道 DDR4 SDRAM 无缓冲 DIMMs 支持高达 64 GB

显示输出 : 独立三显
1 x VGA (高达 1920x1200@60 Hz)
1 x DVI-D (高达 2560x1600@60Hz)
1 x HDMI™ 2.0 (高达 4096x2160@60Hz)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 4096x2304@60Hz)

显示输出 : 独立三显
1 x VGA (高达 1920x1200@60 Hz)
1 x DVI-D (高达 2560x1600@60Hz)
1 x HDMI™ 2.0 (高达 4096x2160@60Hz)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 4096x2304@60Hz)

4 x Internal RS-232
5 x Internal USB 2.0
1 x Internal USB 3.0
2 x Internal RS-232/422/485
1 x KB/MS
1 x LPT

4 x Internal RS-232
5 x Internal USB 2.0
1 x Internal USB 3.0
2 x Internal RS-232/422/485
1 x KB/MS
1 x LPT

扩展：
1 x 全尺寸 PCIe 迷你卡插槽 (支持 mSATA)
2 x PCI 插槽
2 x PCIe x8 插槽 (Gen3)
3 x PCIe x4 插槽 (Gen3)

扩展：
1 x 全尺寸 PCIe 迷你卡插槽 (支持 mSATA)
2 x PCI 插槽
2 x PCIe x8 插槽 (Gen3)
3 x PCIe x4 插槽 (Gen3)

KINO-DH810

Mini-ITX SBC with LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU

Intel® H81
LGA1150

Intel® H81
LGA1150

Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0

3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x PCIe x1 slot
1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)

Expansion:
1 x PCIe x1 slot
1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)

IMB-H810

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81

Intel® H81
LGA1150

Intel® H81
LGA1150

Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB

Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB

Dual independent display
1 x VGA (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

Dual independent display
1 x VGA (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

8 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
2 x RS-232
2 x USB 2.0
2 x USB 3.0

8 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
2 x RS-232
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot

Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot

IMBA-H810

ATX motherboard supports 22nm LGA 1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81

Intel® H81
LGA1150

Intel® H81
LGA1150

Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)

Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)

Dual independent display
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

Dual independent display
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

1 x I²C
3 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x RS-232
1 x SMBus
2 x USB 2.0
2 x USB 3.0

1 x I²C
3 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x RS-232
1 x SMBus
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x PCIe x16
2 x PCIe x1
1 x PCIe Mini
4 x PCI
1 x mSATA (share with SATA4)

Expansion:
1 x PCIe x16
2 x PCIe x1
1 x PCIe Mini
4 x PCI
1 x mSATA (share with SATA4)

eKINO-BT

Mini-ITX SBC supports AUPS sub-system, 22nm Intel® Atom™/Celeron® on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)

Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)

VGA (up to 2560x1600@60Hz)
LVDS1: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
LVDS2: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

VGA (up to 2560x1600@60Hz)
LVDS1: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
LVDS2: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

2 x Internal USB 2.0
4 x RS-232
1 x RS-422/485
2 x USB 2.0
2 x USB 3.0

2 x Internal USB 2.0
4 x RS-232
1 x RS-422/485
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x Full-size PCIe Mini card slot (with USB 2.0)
1 x PCIe x1

Expansion:
1 x Full-size PCIe Mini card slot (with USB 2.0)
1 x PCIe x1

KINO-DBT

Mini-ITX SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC,

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)

2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)

Dual independent display
VGA (up to 2560x1600@60 Hz)
DVI-D (up to 1920x1080@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)

Dual independent display
VGA (up to 2560x1600@60 Hz)
DVI-D (up to 1920x1080@60 Hz)
iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)

3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0

3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD slot (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2

Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD slot (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2

嵌入式板卡

IEI provides various sizes of embedded boards from Pico-ITX to 5.25” SBC and can meet different applications involving data acquisition, video processing, telecommunication, networking, motion control plus the associated field wiring termination, I/O circuit protection, etc.

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

WAFER-ASL

3.5” SBC supports Intel® Atom™ x7000 RE series on-board SoC, double display with DP, HDMI, triple 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM and RoHS, -40°C~85°C

Intel® Amston Lake Atom™ x7000 series processor
Intel® Atom™ x7211RE SoC Processor
Intel® Atom™ x7213RE SoC Processor
Intel® Atom™ x7433RE SoC Processor
Intel® Atom™ x7835RE SoC Processor

Intel® Amston Lake Atom™ x7000 series processor
Intel® Atom™ x7211RE SoC Processor
Intel® Atom™ x7213RE SoC Processor
Intel® Atom™ x7433RE SoC Processor
Intel® Atom™ x7835RE SoC Processor

单根 262-pin DDR5 4800 SO-DIMM, 支持高达 16GB 内存

单根 262-pin DDR5 4800 SO-DIMM, 支持高达 16GB 内存

双重独立显示
1 x HDMI™ 2.0 (up to 4096 x 2160 @ 60Hz)
1 x DP 1.4 (up to 4096 x 2160 @ 60Hz)

双重独立显示
1 x HDMI™ 2.0 (up to 4096 x 2160 @ 60Hz)
1 x DP 1.4 (up to 4096 x 2160 @ 60Hz)

● 外部I/O接口：
2 x USB 3.2 Gen 2
2 x USB 2.0
● 内部I/O接口：
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)

● 外部I/O接口：
2 x USB 3.2 Gen 2
2 x USB 2.0
● 内部I/O接口：
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)

1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M Key 2242/2280 (PCIe gen3 x2)

1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M Key 2242/2280 (PCIe gen3 x2)

WAFER-IMX8MP

3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS

NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz)

NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz)

4GB LPDDR4-3200

4GB LPDDR4-3200

1 x MIPI DSI 4 lanes (40-pin 0.5mm FPC 90°)
1 x HDMI™ output 2.0a Type A, up to 4K

1 x MIPI DSI 4 lanes (40-pin 0.5mm FPC 90°)
1 x HDMI™ output 2.0a Type A, up to 4K

2 x GbE RJ45
2 x USB 5Gbps Type A
1 x Full RS-232/422/485 (DB9 Port)
1 x RS-232/RS-485 (2x3 pin header)
1 x I²C (for Touch, 8-pin 2.0mm FPC)
GPIO 8 bit (4 in / 4 out, pin header)

2 x GbE RJ45
2 x USB 5Gbps Type A
1 x Full RS-232/422/485 (DB9 Port)
1 x RS-232/RS-485 (2x3 pin header)
1 x I²C (for Touch, 8-pin 2.0mm FPC)
GPIO 8 bit (4 in / 4 out, pin header)

3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS

3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS

WAFER-EHL-x6000

3.5” SBC 支持 Intel® Elkhart Lake Atom™ x6000 系列板载 SoC，带 DP 的三重显示，HDMI™ 和 iDPM 插槽，双 2.5 GbE、USB 3.2 Gen2、M.2、SATA 6Gb/s、COM、iAUDIO、PSE模块、+12V~28V直流输入，RoHS，-20°C~85°C

● 板载 Intel® Elkhart Lake Atom™ x6000系列 / Pentium® / Celeron® 处理器
Intel® Atom™ x6211E 板载 SoC (高达 3.00 GHz，双核，1.5M 缓存, TDP=6W)
Intel® Atom™ x6413E 板载 SoC (高达 3.00 GHz，四核，1.5M 缓存, TDP=9W)
Intel® Atom™ x6425E 板载 SoC (高达 3.00 GHz，四核，1.5M 缓存, TDP=12W)

● 板载 Intel® Elkhart Lake Atom™ x6000系列 / Pentium® / Celeron® 处理器
Intel® Atom™ x6211E 板载 SoC (高达 3.00 GHz，双核，1.5M 缓存, TDP=6W)
Intel® Atom™ x6413E 板载 SoC (高达 3.00 GHz，四核，1.5M 缓存, TDP=9W)
Intel® Atom™ x6425E 板载 SoC (高达 3.00 GHz，四核，1.5M 缓存, TDP=12W)

板载 LPDDR4x 8GB

板载 LPDDR4x 8GB

● 三重独立显示
1 x HDMI™ 1.4 (高达 4096 x 2160@30Hz)
1 x DP 1.2 (高达 4096 × 2160@60Hz)
1 x IEI iDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA模块)

● 三重独立显示
1 x HDMI™ 1.4 (高达 4096 x 2160@30Hz)
1 x DP 1.2 (高达 4096 × 2160@60Hz)
1 x IEI iDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA模块)

● 外部 I/O 接口:
2 x USB 3.2 Gen 2
● 内部 I/O 接口:
1 x SATA 6Gb/s，带 5V SATA 供电接口
4 x USB 2.0 (2*4 pin，P=2.0)
2 x RS-232/422/485 (1x9 pin，P=1.25)

● 外部 I/O 接口:
2 x USB 3.2 Gen 2
● 内部 I/O 接口:
1 x SATA 6Gb/s，带 5V SATA 供电接口
4 x USB 2.0 (2*4 pin，P=2.0)
2 x RS-232/422/485 (1x9 pin，P=1.25)

3.5” SBC 支持 Intel® Elkhart Lake Atom™ x6000 系列板载 SoC，带DP的三重显示，HDMI™ 和 iDPM 插槽，双 2.5 GbE、USB 3.2 Gen2、M.2、SATA 6Gb/s、COM、iAUDIO、PSE模块、+12V~28V直流输入，RoHS，-20°C~85°C

3.5” SBC 支持 Intel® Elkhart Lake Atom™ x6000 系列板载 SoC，带DP的三重显示，HDMI™ 和 iDPM 插槽，双 2.5 GbE、USB 3.2 Gen2、M.2、SATA 6Gb/s、COM、iAUDIO、PSE模块、+12V~28V直流输入，RoHS，-20°C~85°C

WAFER-EHL2

3.5” SBC支持 Intel® Celeron® J6412 板载处理器，独立三显：DP﹑HDMI™﹑iDPM插槽，双路 2.5 GbE，USB 3.2 Gen 2，M.2，SATA 6Gb/s，COM，iAUDIO 以及 RoHS，-10°C ~60°C

CPU:
Intel® Celeron® J6412 板载SoC (高达 2.6GHz, 四核, 1.5M 缓存, TDP=10W)

CPU:
Intel® Celeron® J6412 板载SoC (高达 2.6GHz, 四核, 1.5M 缓存, TDP=10W)

板载 8GB 3200MHz LPDDR4x，支持高达 16GB

板载 8GB 3200MHz LPDDR4x，支持高达 16GB

● 独立三显
1 x HDMI™ 1.4 (高达 4096 x 2160 @30Hz)
1 x DP 1.4 (高达 4096 x 2160 @60Hz)
1 x iEi iDPM 3040 插槽 (仅支持 iEi eDP/LVDS/VGA 模块)

● 独立三显
1 x HDMI™ 1.4 (高达 4096 x 2160 @30Hz)
1 x DP 1.4 (高达 4096 x 2160 @60Hz)
1 x iEi iDPM 3040 插槽 (仅支持 iEi eDP/LVDS/VGA 模块)

● 外部 I/O 接口
2 x USB 3.2 Gen2 (10Gb/s)
● 内部 I/O 接口
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x RS-232 (1x9 pin, p=1.25)

● 外部 I/O 接口
2 x USB 3.2 Gen2 (10Gb/s)
● 内部 I/O 接口
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x RS-232 (1x9 pin, p=1.25)

1 x M.2 A Key for WIFI & Bluetooth (2230) (基于PCIe Gen3 x1 / USB 2.0 信号)
1 x M.2 B key (3042/2242) w/ SIM holder (基于PCIe Gen3 x2 / USB 2.0 信号)
1 x PCIe x4（基于PCIe Gen3 x2 信号）(x2 or x1 + x1)

1 x M.2 A Key for WIFI & Bluetooth (2230) (基于PCIe Gen3 x1 / USB 2.0 信号)
1 x M.2 B key (3042/2242) w/ SIM holder (基于PCIe Gen3 x2 / USB 2.0 信号)
1 x PCIe x4（基于PCIe Gen3 x2 信号）(x2 or x1 + x1)

HYPER-RK3566

Pico-ITX单板，搭载RK3566，2/4GB LPDDR4/4X，16/32GB eMMC，HDMI™2.0，MIPI DSI，LVDS，1 x 1千兆 RJ45，1 x USB3.0，3 x USB2.0，2 x (RS232+RS485)，可选:WIFI5/6 + BT，12V直流输入，Debian 10 / Android 12，RoHS

瑞芯微 RK3566 (四核A55, 主频高达1.8Ghz)

瑞芯微 RK3566 (四核A55, 主频高达1.8Ghz)

200 pin 主频 1866 Mhz, 2/4GB LPDDR4/4X, 可支持高达 8GB

200 pin 主频 1866 Mhz, 2/4GB LPDDR4/4X, 可支持高达 8GB

单显/双屏同显
显示类型:
● HDMI™ (高达 1080p@120Hz and 4096 x 2304@60Hz),
● LVDS,
● MIPI (高达 1920 x 1080@60Hz 单 MIPI 模式和 2560 x 1440@60Hz for 双-MIPI 模式)

单显/双屏同显
显示类型:
● HDMI™ (高达 1080p@120Hz and 4096 x 2304@60Hz),
● LVDS,
● MIPI (高达 1920 x 1080@60Hz 单 MIPI 模式和 2560 x 1440@60Hz for 双-MIPI 模式)

● 外部I/O 接口
1 x 直流电源接口
1 x Mirco SD 卡槽
1 x USB3.0 TypeA
1 x USB2.0 Type A
1 x HDMI™2.0
1 x 1千兆RJ45
● 内部 I/O 接口
8 bit-GPIO 排针
2 x (RS232+RS485) 排针
1 x I²C 接口
1 x MIPI DSI
1 x 调试接口
1 x Mic 接口
1 x Speaker 接口
1 x LVDS背光接口
1 x LVDS
1 x RTC Battery接口
2 x USB2.0 接口

● 外部I/O 接口
1 x 直流电源接口
1 x Mirco SD 卡槽
1 x USB3.0 TypeA
1 x USB2.0 Type A
1 x HDMI™2.0
1 x 1千兆RJ45
● 内部 I/O 接口
8 bit-GPIO 排针
2 x (RS232+RS485) 排针
1 x I²C 接口
1 x MIPI DSI
1 x 调试接口
1 x Mic 接口
1 x Speaker 接口
1 x LVDS背光接口
1 x LVDS
1 x RTC Battery接口
2 x USB2.0 接口

1 x B TO B 接口
1 x Micro SD 卡槽

1 x B TO B 接口
1 x Micro SD 卡槽

WAFER-RK3568

3.5寸SBC 搭配RK3568处理器，支持 2/4GB LPDDR4/X，16/32GB 闪存，支持三显: HDMI™, MIPI 及 eDP，USB 3.0 x 2，内置 USB 2.0 x 3，符合RoHS

瑞芯微 RK3568 (四核A55, 主频高达 2.0Ghz)

瑞芯微 RK3568 (四核A55, 主频高达 2.0Ghz)

200 pin主频1866 Mhz, 2/4GB LPDDR4/4X, 可支持高达 8GB

200 pin主频1866 Mhz, 2/4GB LPDDR4/4X, 可支持高达 8GB

三种显示类型:
● HDMI™ (高达1080p@120Hz and 4096 x 2304@60Hz),
● MIPI (高达1920 x 1080@60Hz 单 MIPI 模式和 2560 x 1440@60Hz 双-MIPI 模式),
● eDP (高达 2560 x 1650@60Hz)

三种显示类型:
● HDMI™ (高达1080p@120Hz and 4096 x 2304@60Hz),
● MIPI (高达1920 x 1080@60Hz 单 MIPI 模式和 2560 x 1440@60Hz 双-MIPI 模式),
● eDP (高达 2560 x 1650@60Hz)

● 外部:
DC Jack
1 x DB9 (2 x RS232 + 2 x RS485)
2 x USB 3.0 TypeA
1 x HDMI™ 2.0
2 x 1GbE RJ45
● 内部:
1 x 4 pin DC Port
1 x Line Out + Mic In
1 x Mic Connector
1 x Speaker Connector
1 x USB 2.0 Connector
1 x USB 2.0 Pinheader
1 x 14-bit GPIO Pinheader
1 x eDP
1 x MIPI DSI
1 x MIPI CSI

● 外部:
DC Jack
1 x DB9 (2 x RS232 + 2 x RS485)
2 x USB 3.0 TypeA
1 x HDMI™ 2.0
2 x 1GbE RJ45
● 内部:
1 x 4 pin DC Port
1 x Line Out + Mic In
1 x Mic Connector
1 x Speaker Connector
1 x USB 2.0 Connector
1 x USB 2.0 Pinheader
1 x 14-bit GPIO Pinheader
1 x eDP
1 x MIPI DSI
1 x MIPI CSI

1 x M.2 B key 接口
1 x B TO B 连接器
1 x SIM 槽
1 x Micro SD 卡槽

1 x M.2 B key 接口
1 x B TO B 连接器
1 x SIM 槽
1 x Micro SD 卡槽

WAFER-ADL-N

3.5 SBC支持 Intel® Alder Lake-N/Amston Lake SoC 处理器，板载8GB LPDDR5x内存。具有DP、HDMI™、iDPM、双2.5GbE、USB 3.2 gen 2、M.2、SATA 6Gb/s、COM、PCIe x4 槽, 符合RoHS。

支持12/13代 Intel® Alder Lake-N/Amston Lake on board SoC

支持12/13代 Intel® Alder Lake-N/Amston Lake on board SoC

LPDDR5x 8GB，内存上限为16GB

LPDDR5x 8GB，内存上限为16GB

● 三重独立显示
1 x HDMI™ 2.0 (高达 4096x2160 @ 30Hz)
1 x DP 1.4a (高达 4096x2160 @ 60Hz)
1 x IEI iDPM 3040 slot (仅支持 IEI eDP/LVDS/VGA 模块)

● 三重独立显示
1 x HDMI™ 2.0 (高达 4096x2160 @ 30Hz)
1 x DP 1.4a (高达 4096x2160 @ 60Hz)
1 x IEI iDPM 3040 slot (仅支持 IEI eDP/LVDS/VGA 模块)

● 外部I/O接口：
2 x USB 3.2 Gen 2
2 x USB 2.0
● 内部I/O接口：
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)

● 外部I/O接口：
2 x USB 3.2 Gen 2
2 x USB 2.0
● 内部I/O接口：
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)

1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M Key 2280 (PCIe gen3 x1)
1 x PCIe Gen3 x4 Slot (x2 signal)

1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M Key 2280 (PCIe gen3 x1)
1 x PCIe Gen3 x4 Slot (x2 signal)

WAFER-ADL-P

3.5 SBC 支持 Intel® Alder Lake-P/Raptor Lake-P Core™ i7/i5/i3 和 Celeron® 处理器，板载 8GB LPDDR4x 内存。具有DP、HDMI™、双2.5GbE、USB 3.2 gen 2、M.2、SATA 6Gb/s、COM、PCIe x4 槽，符合RoHS。

支持12/13代 Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC

支持12/13代 Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC

LPDDR4x-3200Gbps 8GB，内存上限 32GB

LPDDR4x-3200Gbps 8GB，内存上限 32GB

● 四重独立显示
2 x HDMI™ 1.4a（高达 4096 x 2160@30Hz）
2 x DP 1.4a（高达 4096 x 2160 @60Hz）

● 四重独立显示
2 x HDMI™ 1.4a（高达 4096 x 2160@30Hz）
2 x DP 1.4a（高达 4096 x 2160 @60Hz）

● 外部I/O接口：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s) support AFC)
● 内部I/O接口：
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0))

● 外部I/O接口：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s) support AFC)
● 内部I/O接口：
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0))

1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280
1 x M.2 M Key 2242/2280

1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280
1 x M.2 M Key 2242/2280

NANO-EHL

EPIC SBC 支持Intel® Celeron®板载SoC，板载8GB LPDDR4x内存，具有DP、HDMI™、iDPM、M.2 A key、M.2 Bkey、USB 3.1、SATA 6Gb/s、COM、iAUDIO、PCIe x4 (x2 信号) 用于riser card，RoHS。

● 板载 Intel® Atom™ x6000 系列 / Pentium® / Celeron® 处理器 (Elkhart Lake 平台)
● Intel® Celeron® J6412 板载 SoC (支持高达 2.6GH，四核，1.5M 缓存，TDP=10W)

● 板载 Intel® Atom™ x6000 系列 / Pentium® / Celeron® 处理器 (Elkhart Lake 平台)
● Intel® Celeron® J6412 板载 SoC (支持高达 2.6GH，四核，1.5M 缓存，TDP=10W)

LPDDR4x-3200Gbps 8GB，内存上限 16GB

LPDDR4x-3200Gbps 8GB，内存上限 16GB

● 独立三显
1 x DP 1.4 (up to 4096 x 2304 @60Hz)
1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 独立三显
1 x DP 1.4 (up to 4096 x 2304 @60Hz)
1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 外部I/O接口:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s) support AFC)
2 x USB 2.0 Type-A
● 内部I/O接口:
1 x SATA 6Gb/s with 5V SATA power connector
1 x iSATA
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

● 外部I/O接口:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s) support AFC)
2 x USB 2.0 Type-A
● 内部I/O接口:
1 x SATA 6Gb/s with 5V SATA power connector
1 x iSATA
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

1 x M.2 B Key (2280/2242) PCIe x2&USB2.0
1 x M.2 A Key (2230) PCIe x1/USB2.0
1 x PCIe x4 slot (PCIe Gen3 x2) (x2 or x1+x1)

1 x M.2 B Key (2280/2242) PCIe x2&USB2.0
1 x M.2 A Key (2230) PCIe x1/USB2.0
1 x PCIe x4 slot (PCIe Gen3 x2) (x2 or x1+x1)

NANO-ADL-P

EPIC SBC 支持 Intel® Alder Lake-P/Raptor Lake-P Core™ i7/i5/i3 和 Celeron® 处理器，默认板载 8GB LPDDR4x 内存，主板带有双 HDMI™、DP、IDPM、M.2 A key、M.2 B key、USB 3.2、SATA 6Gb/s、COM、iAUDIO、以及用于 riser card 的 PCIe x4, 符合RoHS

支持12/13代 Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC

支持12/13代 Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC

LPDDR4x-3200Gbps 8GB，内存上限32GB

LPDDR4x-3200Gbps 8GB，内存上限32GB

● 四重独立显示
2 x HDMI™ 1.4a (高达 4096 x 2160 @30Hz)
1 x DP 1.4a (高达 4096 x 2160 @60Hz)
1 x IDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA 模块)

● 四重独立显示
2 x HDMI™ 1.4a (高达 4096 x 2160 @30Hz)
1 x DP 1.4a (高达 4096 x 2160 @60Hz)
1 x IDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA 模块)

● 外部I/O接口：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s) support AFC)
● 内部I/O接口：
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0))

● 外部I/O接口：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s) support AFC)
● 内部I/O接口：
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0))

1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280

1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280

HYPER-EHL

Pico-ITX SBC 支持 Intel® Celeron J6412/N6210 板载 SoC，板载 4GB LPDDR4x 显存，带 HDMI™, iDPM, M.2 M key, USB 3.2, iSATA 6GB/s, COM, PCIe x4 for riser card, 符合RoHS

● 板载 Intel® Atom™ x6000 系列 / Pentium® / Celeron® 处理器 (Elkhart Lake 平台)
● Intel® Celeron® J6412 板载 SoC (支持高达 2.6GH，四核，1.5M 缓存，TDP=10W)
● Intel® Celeron® N6210 板载 SoC (支持高达 2.6GHz，双核，1.5M Cache，TDP=6.5W)

● 板载 Intel® Atom™ x6000 系列 / Pentium® / Celeron® 处理器 (Elkhart Lake 平台)
● Intel® Celeron® J6412 板载 SoC (支持高达 2.6GH，四核，1.5M 缓存，TDP=10W)
● Intel® Celeron® N6210 板载 SoC (支持高达 2.6GHz，双核，1.5M Cache，TDP=6.5W)

LPDDR4x-3200Gbps 4GB，内存上限 8GB

LPDDR4x-3200Gbps 4GB，内存上限 8GB

● 独立双显:
1 x HDMI™ (up to 4096 x 2160 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 独立双显:
1 x HDMI™ (up to 4096 x 2160 @30Hz)
1 x iDPM 支持iEi eDP/ LVDS/ VGA 模块

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● 内部I/O接口：
1 x iSATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-232/422/485 (1x9 pin, P=1.25)

● 外部I/O接口：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● 内部I/O接口：
1 x iSATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-232/422/485 (1x9 pin, P=1.25)

1 x PCIe Gen3 x4
1 x M.2 M key (2242,PCIe Gen3 X 2)

1 x PCIe Gen3 x4
1 x M.2 M key (2242,PCIe Gen3 X 2)

WAFER-EHL

3.5＂ SBC 支持 Intel® Celeron® J6412 板载处理器, 独立三显，DP, HDMI™, iDPM 插槽, 双路 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO, RoHS, -10°C ~60°C

CPU:
Intel® Celeron® J6412 板载 SoC (高达 2.6GHz, 四核, 1.5M 缓存, TDP=10W)

CPU:
Intel® Celeron® J6412 板载 SoC (高达 2.6GHz, 四核, 1.5M 缓存, TDP=10W)

板载 LPDDR4x-3200MHz 支持高达 8 GB

板载 LPDDR4x-3200MHz 支持高达 8 GB

独立三显:
1 x HDMI™ 1.4 (高达 4096x2160 @ 30Hz)
1 x DP 1.4 (高达 4096x2160 @ 60Hz)
1 x iEi iDPM 3040 插槽 (仅支持 iEi eDP/LVDS/VGA 模块)

独立三显:
1 x HDMI™ 1.4 (高达 4096x2160 @ 30Hz)
1 x DP 1.4 (高达 4096x2160 @ 60Hz)
1 x iEi iDPM 3040 插槽 (仅支持 iEi eDP/LVDS/VGA 模块)

外部 I/O 接口:
2 x USB 3.2 Gen2 (10Gb/s)
内部 I/O 接口:
1 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)

外部 I/O 接口:
2 x USB 3.2 Gen2 (10Gb/s)
内部 I/O 接口:
1 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)

1 x M.2 A Key for WIFI & Bluetooth (2230) (基于PCIe Gen3 x1/USB 2.0 信号)
1 x M.2 B key (3042) w/ SIM holder (基于PCIe Gen3 x2/USB 2.0 信号)
1 x PCIe x4 (基于PCIe Gen3 x2 信号) (x2 or x1+x1)

1 x M.2 A Key for WIFI & Bluetooth (2230) (基于PCIe Gen3 x1/USB 2.0 信号)
1 x M.2 B key (3042) w/ SIM holder (基于PCIe Gen3 x2/USB 2.0 信号)
1 x PCIe x4 (基于PCIe Gen3 x2 信号) (x2 or x1+x1)

WAFER-TGL-U

3.5寸 SBC 支持 Intel® Tiger Lake-UP3 Core I™ Celeron® 处理器，支持 HDMI™, DP, iDPM，三个 2.5 GbE 网口，USB 3.2, M.2, SATA 6Gb/s, COM, Audio，符合RoHS, -10°C ~60°C

第 11 代 Intel® 移动 Tiger Lake-UP3 板载处理器

第 11 代 Intel® 移动 Tiger Lake-UP3 板载处理器

一个 260-pin 3200 MHz DDR4 SO-DIMM 插槽
(系统可支持32GB)

一个 260-pin 3200 MHz DDR4 SO-DIMM 插槽
(系统可支持32GB)

四重 4K 独立显示
2 X HDMI™ 2.0b (高达 4096x2160 @ 30 Hz)
1 X DP 1.4a (高达 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA 模块)

四重 4K 独立显示
2 X HDMI™ 2.0b (高达 4096x2160 @ 30 Hz)
1 X DP 1.4a (高达 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 插槽 (仅适用于 IEI eDP/LVDS/VGA 模块)

外部 I/O接口:
4 x USB 3.2 Gen2 (10Gb/s) 通过 USB Type-C
内部 I/O接口:
1 x SATA 6G/s
2 x USB 2.0 PIN Header (p=2.0)
2 x RS-232/422/485 (2 x 5 pin, P=2.0)
1 x RS-232 (2 x 5 pin, P=2.0)

外部 I/O接口:
4 x USB 3.2 Gen2 (10Gb/s) 通过 USB Type-C
内部 I/O接口:
1 x SATA 6G/s
2 x USB 2.0 PIN Header (p=2.0)
2 x RS-232/422/485 (2 x 5 pin, P=2.0)
1 x RS-232 (2 x 5 pin, P=2.0)

1 x M.2 2230 A-key 插槽 (PCIe x1 & USB 2.0)
1 x M.2 2242/3052 B-key 插槽 (PCIe x2)

1 x M.2 2230 A-key 插槽 (PCIe x1 & USB 2.0)
1 x M.2 2242/3052 B-key 插槽 (PCIe x2)

WAFER-JL

3.5＂板卡搭配Intel® 10nm Jasper Lake Celeron® N5105 Processor, 支持双显DDR4, 三Intel® 2.5GbE, USB3.2 ,M.2, SATA, COM, SoC, 符合RoHS

CPU:
Intel®Celeron® N5105 板载SoC (支持多达至2.90GHz, 四核, 4M缓存, TDP=10W)
Chipset:
Intel®Celeron® N5105 板载SoC (支持多达至2.90GHz, 四核, 4M缓存, TDP=10W)

CPU:
Intel®Celeron® N5105 板载SoC (支持多达至2.90GHz, 四核, 4M缓存, TDP=10W)
Chipset:
Intel®Celeron® N5105 板载SoC (支持多达至2.90GHz, 四核, 4M缓存, TDP=10W)

1 x 260-pin 2933 MHz DDR4 SO-DIMM，支持多达至16G

1 x 260-pin 2933 MHz DDR4 SO-DIMM，支持多达至16G

独立双显
1 x HDMI™ 1.4
1 x DP 1.4

独立双显
1 x HDMI™ 1.4
1 x DP 1.4

外部 I/O 接口
2 x USB 3.2 Gen2(10Gb/s)
内部 I/O 接口
1 x SATA 6Gb/s 带有5V SATA供电接口 (不支持 RAID)
2 x USB 2.0 (2x4pin，P=2.0)
2 x RS-232 (1x9 pin, P=1.25) 从EC拉出

外部 I/O 接口
2 x USB 3.2 Gen2(10Gb/s)
内部 I/O 接口
1 x SATA 6Gb/s 带有5V SATA供电接口 (不支持 RAID)
2 x USB 2.0 (2x4pin，P=2.0)
2 x RS-232 (1x9 pin, P=1.25) 从EC拉出

1.支持TDP 10W低功耗Intel® Celeron® N5105 CPU
2.支持Intel® I225V 2.5GbE 以太网控制器
3.丰富I/O接口

1.支持TDP 10W低功耗Intel® Celeron® N5105 CPU
2.支持Intel® I225V 2.5GbE 以太网控制器
3.丰富I/O接口

WAFER-BT

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.2 Gen 1 (5Gb/s), PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS

Intel® Atom™/Celeron® 板载 SoC

Intel® Atom™/Celeron® 板载 SoC

一个 204-pin 1066/1333 MHz 单通道 DDR3L SO-DIMM 插槽
支持多达 8 GB (J1900, N2930, E3845, E3827, E3826) 或 4 GB (N2807, E3825, E3815)

一个 204-pin 1066/1333 MHz 单通道 DDR3L SO-DIMM 插槽
支持多达 8 GB (J1900, N2930, E3845, E3827, E3826) 或 4 GB (N2807, E3825, E3815)

支持双显示
1 x VGA (分辨率: 2560x1600@60Hz)
1 x 双通道 24bit LVDS 连接器
(1920x1200@60Hz)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 2560x1600@60Hz)

支持双显示
1 x VGA (分辨率: 2560x1600@60Hz)
1 x 双通道 24bit LVDS 连接器
(1920x1200@60Hz)
1 x iDP 接口用于 HDMI™, LVDS, VGA, DVI, DP (高达 2560x1600@60Hz)

2 x 内置 RS-232
4 x 内置 USB 2.0
3 x RS-232
1 x RS-422/485
5 x USB 2.0
1 x USB 3.0

2 x 内置 RS-232
4 x 内置 USB 2.0
3 x RS-232
1 x RS-422/485
5 x USB 2.0
1 x USB 3.0

3 x RS-232
1 x RS-422/485
1 x USB 3.0
5 x USB 2.0
1 x PS/2 KB/MS

3 x RS-232
1 x RS-422/485
1 x USB 3.0
5 x USB 2.0
1 x PS/2 KB/MS

PM-BT

PC/104-Plus SBC 采用 Intel® Atom™/Celeron® 板载 SoC，带 DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 和 5V DC 输入, RoHS

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)

One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)

One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)

Dual independent display
1 x VGA (up to 2560x1600@60 Hz)
1 x 18/24-bit single-channel LVDS (2x10 pin)

Dual independent display
1 x VGA (up to 2560x1600@60 Hz)
1 x 18/24-bit single-channel LVDS (2x10 pin)

1 x Full-size PCIe Mini slot (supports mSATA)
1 x PC/104-Plus (ISA+PCI)
1 x SATA 3Gb/s with 5V SATA power connector
1 x 8-bit digital I/O (2x5 pin, P=2.0)
3 x USB 2.0 (1x4 pin, P=1.25)
2 x RS-232/422/485 (2x5, P=2.0)
1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button)

1 x Full-size PCIe Mini slot (supports mSATA)
1 x PC/104-Plus (ISA+PCI)
1 x SATA 3Gb/s with 5V SATA power connector
1 x 8-bit digital I/O (2x5 pin, P=2.0)
3 x USB 2.0 (1x4 pin, P=1.25)
2 x RS-232/422/485 (2x5, P=2.0)
1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button)

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
SoC

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
SoC

NANO-AL

EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC

*Intel® Pentium® N4200 板载 SoC
*Intel® Celeron® N3350 板载 SoC
*Intel® Atom™ x7-E3950 板载 SoC
*Intel® Atom™ x5-E3940 板载 SoC
*Intel® Atom™ x5-E3930 板载 SoC

*Intel® Pentium® N4200 板载 SoC
*Intel® Celeron® N3350 板载 SoC
*Intel® Atom™ x7-E3950 板载 SoC
*Intel® Atom™ x5-E3940 板载 SoC
*Intel® Atom™ x5-E3930 板载 SoC

一个 204-pin 1866/1600MHz 双通道 DDR3L DIMMs 支持8GB

一个 204-pin 1866/1600MHz 双通道 DDR3L DIMMs 支持8GB

独立三显：
1 x LVDS：18/24-bit 双通道 LVDS 采用CH7511B DP to LVDS转换器(高达1920x1200@60Hz)
2 x HDMI™(高达3840x2160@30Hz)
1 x iDP接口用于HDMI™。LVDS，VGA，DVI，DP(高达4096 x 2304@60 Hz)(colay with HDMI™1)

独立三显：
1 x LVDS：18/24-bit 双通道 LVDS 采用CH7511B DP to LVDS转换器(高达1920x1200@60Hz)
2 x HDMI™(高达3840x2160@30Hz)
1 x iDP接口用于HDMI™。LVDS，VGA，DVI，DP(高达4096 x 2304@60 Hz)(colay with HDMI™1)

2 x USB3.0
2 x USB2.0
2 x SATA 6G/s与5V SATA电源连接器(无RAID)
2 x USB2.0(2x4pin，P=2.0)
4 x RS-232(2x5pin，P=2.0)
2 x RS-232/422/485(2x5pin，P=2.0)
1 x KB/MS(1x6pin)

2 x USB3.0
2 x USB2.0
2 x SATA 6G/s与5V SATA电源连接器(无RAID)
2 x USB2.0(2x4pin，P=2.0)
4 x RS-232(2x5pin，P=2.0)
2 x RS-232/422/485(2x5pin，P=2.0)
1 x KB/MS(1x6pin)

扩展：
1 x 全/半尺寸的PCIe迷你插槽(带SIM卡座)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD(可选)
1 x SIM卡座(可选)

扩展：
1 x 全/半尺寸的PCIe迷你插槽(带SIM卡座)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD(可选)
1 x SIM卡座(可选)

NANO-BT

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC

*Intel® Atom™ E3845 板载 SoC
*Intel® Atom™ E3827 板载 SoC
*Intel® Atom™ E3826 板载 SoC
*Intel® Atom™ E3825 板载 SoC
*Intel® Atom™ E3815 板载 SoC
*Intel® Celeron® J1900 板载 SoC
*Intel® Celeron® N2930 板载 SoC
*Intel® Celeron® N2807 板载 SoC

*Intel® Atom™ E3845 板载 SoC
*Intel® Atom™ E3827 板载 SoC
*Intel® Atom™ E3826 板载 SoC
*Intel® Atom™ E3825 板载 SoC
*Intel® Atom™ E3815 板载 SoC
*Intel® Celeron® J1900 板载 SoC
*Intel® Celeron® N2930 板载 SoC
*Intel® Celeron® N2807 板载 SoC

一个 204-pin 1066/1333MHz 单通道无缓冲 DDR3L SDRAM SO-DIMM 支持
高达 8 GB (J1900, N2930, E3845, E3827, E3826) 或 4 GB (N2807, E3825, E3815)

一个 204-pin 1066/1333MHz 单通道无缓冲 DDR3L SDRAM SO-DIMM 支持
高达 8 GB (J1900, N2930, E3845, E3827, E3826) 或 4 GB (N2807, E3825, E3815)

独立双显
VGA(高达2560x1600@60Hz)
HDMI™(高达1920x1080@60Hz)
18/24位双通道LVDS采用CH7511B DP到LVDS转换器(支持多达1920x1200@60Hz)

独立双显
VGA(高达2560x1600@60Hz)
HDMI™(高达1920x1080@60Hz)
18/24位双通道LVDS采用CH7511B DP到LVDS转换器(支持多达1920x1200@60Hz)

3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0

3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0

扩展
1 x 全尺寸PCIe Mini卡插槽(支持mSATA co-lay SATA端口2)
1 x PCI-104槽(PCI信号)
1 x microSD插槽(仅E38XX SKU)

扩展
1 x 全尺寸PCIe Mini卡插槽(支持mSATA co-lay SATA端口2)
1 x PCI-104槽(PCI信号)
1 x microSD插槽(仅E38XX SKU)

NANO-BTW2

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC

One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI™ (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI™ (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0

3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

NANO-ULT3

EPIC SBC supports Intel® 14nm 6th Generarion Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)

6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)

6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)

Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)

Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)

Triple independent display
2 x HDMI™ (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI™1)

Triple independent display
2 x HDMI™ (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI™, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI™1)

3 x Internal USB 2.0
4 x USB 3.0

3 x Internal USB 2.0
4 x USB 3.0

Expansion:
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot

Expansion:
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot

ETX / COM EXPRESS / Q7

IEI provides ETX, COM Express and Q7 single board computers to fulfill multiple application solution, such as automation controllers, mobile devices and measurement systems.

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

HUK-CR680

COM-HPC Client size C Module, 支持 LGA1700 Intel® 12th/13th/14th Core™ i9/i7/i5/i3, Pentium® and Celeron® 处理器, 独立四显, 双路 2.5 GbE 网口, PCIe Gen 5, SATA3.0, USB 3.2, RoHS

CPU: Intel® Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh LGA1700 Desktop CPU (TDP up to 65W)
Chipset: R680E

CPU: Intel® Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh LGA1700 Desktop CPU (TDP up to 65W)
Chipset: R680E

2 x 262pin DDR5 5600 SO-DIMM sockets (up to 96GB)

2 x 262pin DDR5 5600 SO-DIMM sockets (up to 96GB)

独立四显，信号至底板
3 x DDI
1 x eDP

独立四显，信号至底板
3 x DDI
1 x eDP

USB 和 UART 信号至底板
8 x USB 2.0
4 x USB 3.2 Gen2
2 x UART

USB 和 UART 信号至底板
8 x USB 2.0
4 x USB 3.2 Gen2
2 x UART

PCIe 信号至底板
1 x PCIe Gen5 x16
4 x PCIe Gen4 x4
1 x PCIe Gen3 x4
6 x PCIe Gen3 x1

PCIe 信号至底板
1 x PCIe Gen5 x16
4 x PCIe Gen4 x4
1 x PCIe Gen3 x4
6 x PCIe Gen3 x1

iQ7-EHL

Qseven® Rev. 2.1 模块支持 Intel® Celeron® J6412 (10W) 处理器，板载 8GB LPDDR4x 内存，支持 DP、LVDS、2.5GbE、SATA 6Gb/s、USB 3.1, 符合RoHS

Qseven® Rev. 2.1 模块支持 Intel® Celeron® J6412 (10W) 处理器，板载 8GB LPDDR4x 内存，支持 DP、LVDS、2.5GbE、SATA 6Gb/s、USB 3.1, 符合RoHS

Qseven® Rev. 2.1 模块支持 Intel® Celeron® J6412 (10W) 处理器，板载 8GB LPDDR4x 内存，支持 DP、LVDS、2.5GbE、SATA 6Gb/s、USB 3.1, 符合RoHS

LPDDR4x-3200Gbps 8GB，内存上限 16GB

LPDDR4x-3200Gbps 8GB，内存上限 16GB

● 独立双显
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

● 独立双显
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 支持 iEi eDP/ LVDS/ VGA 模块

● I/O 信号：
2 x USB 3.2 Gen2 x1 (10Gb/s)
6 x USB 2.0
1 x UART
2 x SATA 6Gb/s

● I/O 信号：
2 x USB 3.2 Gen2 x1 (10Gb/s)
6 x USB 2.0
1 x UART
2 x SATA 6Gb/s

4 x PCIe Gen3 x1 信号至底板

4 x PCIe Gen3 x1 信号至底板

iQ7-BT

Qseven Rev. 2.0 Module Supports 4th generation Intel® Atom™ Processor

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)

2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)

Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI™, max. resolution 2560x1600/1920x1080)

Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI™, max. resolution 2560x1600/1920x1080)

6 x USB 2.0
1 x USB 3.0

6 x USB 2.0
1 x USB 3.0

Expansion:
3 x PCIe x1 signal to baseboard

Expansion:
3 x PCIe x1 signal to baseboard

iQ7-DB-MATX

Baseboard for Qseven Rev. 2.0 Module

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)

2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)

Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI™, max. resolution 2560x1600/1920x1080)

Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI™, max. resolution 2560x1600/1920x1080)

6 x USB 2.0 signal to baseboard
1 x USB 3.0 signal to baseboard

6 x USB 2.0 signal to baseboard
1 x USB 3.0 signal to baseboard

Expansion:
3 x PCIe x1 signal to baseboard

Expansion:
3 x PCIe x1 signal to baseboard

ICE-DB-T6R

Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1

Supports COM Express Compact/Mini module using connector pin out Type 6

Supports COM Express Compact/Mini module using connector pin out Type 6

1 x VGA
1 x HDMI™ (HDMI™ signal only)
1 x DisplayPort pin-header
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)

1 x VGA
1 x HDMI™ (HDMI™ signal only)
1 x DisplayPort pin-header
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)

4 x SATA port
1 x PS2 KB/MS
2 x RS-232 from SIO
2 x RS-232 from COM Express (only TX, RX, GND)
1 x SD card socket
2 x USB 3.0 (standared USB 3.0 pin-header)

4 x SATA port
1 x PS2 KB/MS
2 x RS-232 from SIO
2 x RS-232 from COM Express (only TX, RX, GND)
1 x SD card socket
2 x USB 3.0 (standared USB 3.0 pin-header)

Expansions:
1 x PCIe x16
5 x PCIe x1
1 x LPC
2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)

Expansions:
1 x PCIe x16
5 x PCIe x1
1 x LPC
2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)

ICE-BT-T6

COM Express Rev 2.1 Basic Type 6 Module, Intel® 4th Generation Atom™ Processor

*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB

Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB

1 x VGA (2560x1600)
1 x DDI 1 (DP/HDMI™ max. resolution 2560x1600/1920x1080)
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

1 x VGA (2560x1600)
1 x DDI 1 (DP/HDMI™ max. resolution 2560x1600/1920x1080)
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

7 x USB 2.0
4 x USB 3.0

7 x USB 2.0
4 x USB 3.0

Expansion:
5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)

Expansion:
5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)

ICE-DB-T6

Baseboard for COM Express Type 6 Module

Supports COM Express Compact/Mini module using connector pin out Type 6

Supports COM Express Compact/Mini module using connector pin out Type 6

1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin header)

1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin header)

1 x VGA 4 x USB 3.0
1 x RJ-45 3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)

1 x VGA 4 x USB 3.0
1 x RJ-45 3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)

Expansions:
1 x PCIe x16
6 x PCIe x1
2 x PCIe Mini (with USB)
1 x LPC

Expansions:
1 x PCIe x16
6 x PCIe x1
2 x PCIe Mini (with USB)
1 x LPC

Privacy Policy | Security Policy | Terms of Use | Sitemap

Copyright ©2022 IEI Integration Corp. All Rights Reserved.

沪ICP备09054375号-6

沪公网安备 31011202005249号
