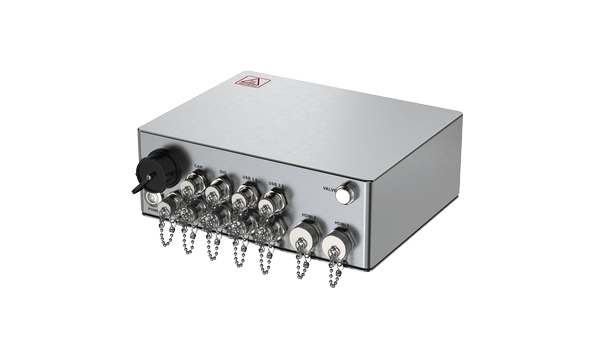

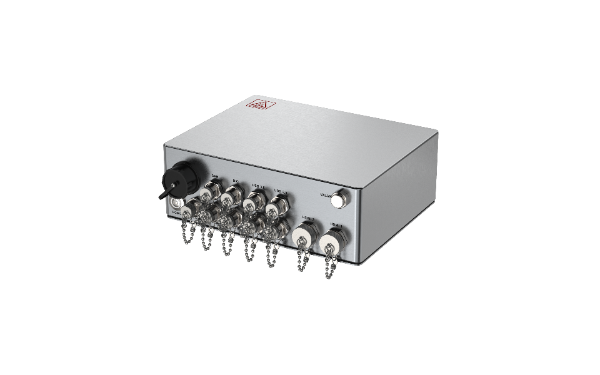

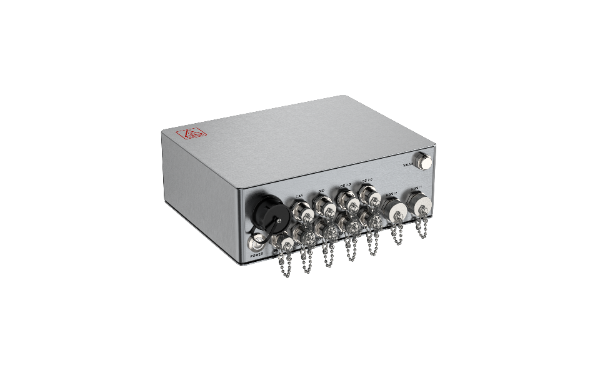

» Intel Atom® x7000RE Series (Amston Lake)
» SUS304 不锈钢材质；全机身 IP69K 防护等级

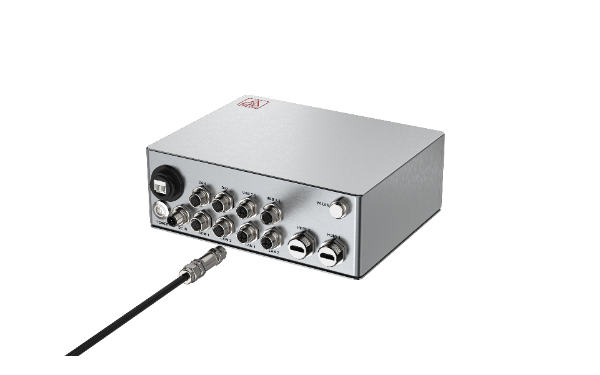

» M12 防水 I/O 接口; 2 x 2.5GbE (M12接口)
» 丰富的 M12 接口：支持 USB、串口、数字量输入输出（可选配）
» 通过 M12 接口支持 10-28V 直流宽压输入
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| I/O Interface | |
|---|---|
| I/O Ports |
|
| Expansion Slots | |
|---|---|
| Expansion Slots |
|
| System | |
|---|---|
| Cooling method / System Fan | 无风扇设计 |
| Drive Bays | 1 x 2.5＂ SATA 6Gb/s HDD/SSD bay |
| Indicator&Buttons | |
|---|---|
| Buttons | 1 x 电源按钮 |
| Physical Characteristics | |
|---|---|
| Construction | SUS304不锈钢外壳，拉丝处理 |
| Color | |
|---|---|
| Color | 本色（不锈钢拉丝） |
| Dimensions | |
|---|---|
| Dimensions | 226.4 x 178.5 x 81 mm |
| Weight | |
|---|---|
| Weight | 2.58kg / 4.15kg |
| Environment | |
|---|---|
| 工作温度 | -40°C ~ 70°C (SSD) |
| 相对湿度 | 10% ~ 95%, 无凝结 |
| Operating Vibration | 随机振动模式，MIL-STD-810H 514.8C-I (SSD) |
| Operating Shock | IEC68-2-27 half-sine, 5G, 11ms, 100 shocks (SSD) |
| 安规&电磁 | CE, FCC |
| OS Compatible | |
|---|---|
| OS Compatible | Windows® 10/11 IoT Enterprise/ Linux |
Ordering Information
| SWBOX-ASL-R4C-R10 | Ruggedized Fanless Embedded System with Intel® Amston Lake x74835RE Processor, pre-installed 1x 8GB DDR5, 2.5GbE, RS232/422/485, CAN BUS, GPIO, 10~28V DC, M12 waterproof, Stainless Steel Chassis, Full body IP69K, R10 |
| SWBOX-ASL-R3C-R10 | Ruggedized Fanless Embedded System with Intel® Amston Lake x7433RE Processor, pre-installed 1x 8GB DDR5, 2.5GbE, RS232/422/485, CAN BUS, GPIO, 10~28V DC, M12 waterproof, Stainless Steel Chassis, Full body IP69K, R10 |
Package Contents
|
