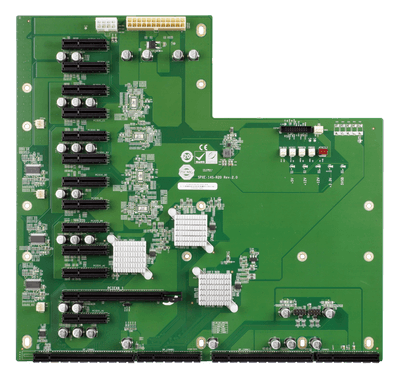

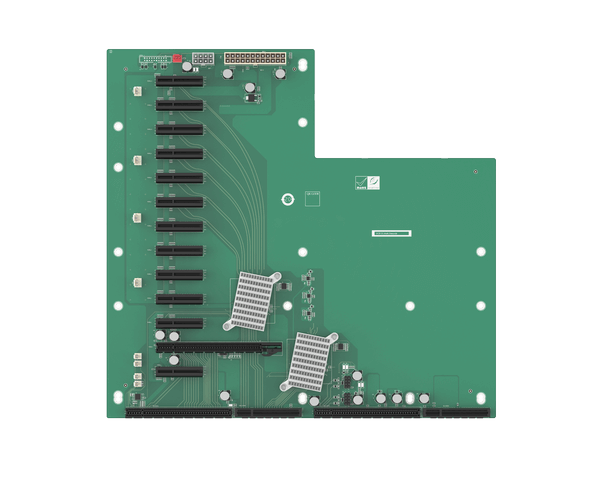

SPXE-14S

14-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slot,12 PCIe x1,RoHS

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      MountingRACK-305G
      RACK-360G
      RACK-3000G
      Dimensions (LxWxH) (mm)327.69 X 311.1
      I/O Interface
      Expansion1 x PCIe x8 :x16 connector
      12 x PCIe x1 :x4 connector
      Power
      Power Supply24+8pin ATX
    • Ordering Info.

      Item No. Description
      RACK-305GW-R224U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
      RACK-3000GB-R214U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
      RACK-360GW-R224U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
      RACK-360GB-R224U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
      SPXE-14S-R2014-slot PICMG 1.3 backplane with one PCIe x16 slot (x8 signal) and twelve PCIe x1 slots
      RACK-305GB-R224U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
      RACK-3000GW-R214U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
