Hardware Spec.
| Physical Characteristics | |
|---|---|
| Mounting |
RACK-305G RACK-360G RACK-3000G |
| Dimensions (LxWxH) (mm) | 327.69 X 311.1 |
| I/O Interface | |
| Expansion | 1 x PCIe x8 :x16 connector |
| 12 x PCIe x1 :x4 connector | |
| Power | |
| Power Supply | 24+8pin ATX |
Ordering Information

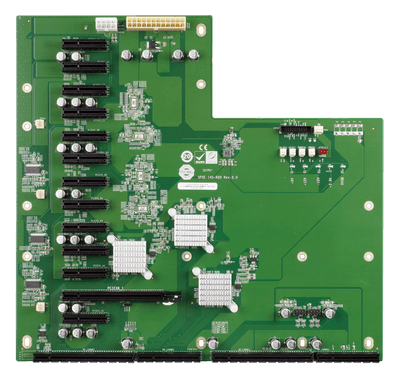

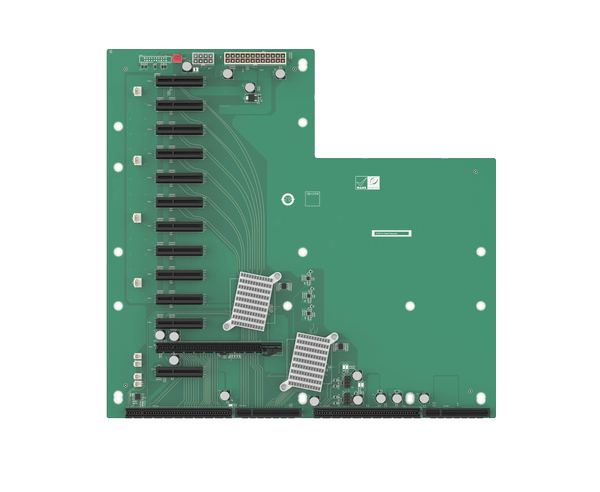

| SPXE-14S-R20 | 14-slot PICMG 1.3 backplane with one PCIe x16 slot (x8 signal) and twelve PCIe x1 slots |
|---|---|
| RACK-360GW-R22 | 4U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS |
| RACK-360GB-R22 | 4U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS |
| RACK-305GW-R22 | 4U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS |
| RACK-305GB-R22 | 4U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS |
| RACK-3000GW-R21 | 4U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS |
| RACK-3000GB-R21 | 4U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS |
